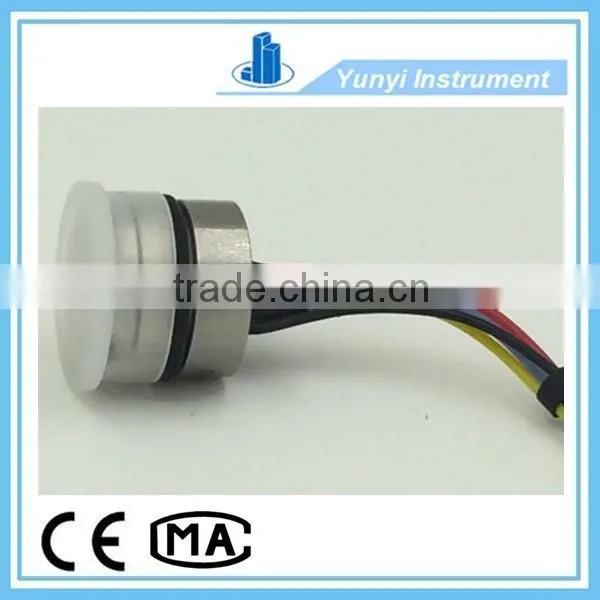

2015 new product pressure sensor
Description of 2015 new product pressure sensor :

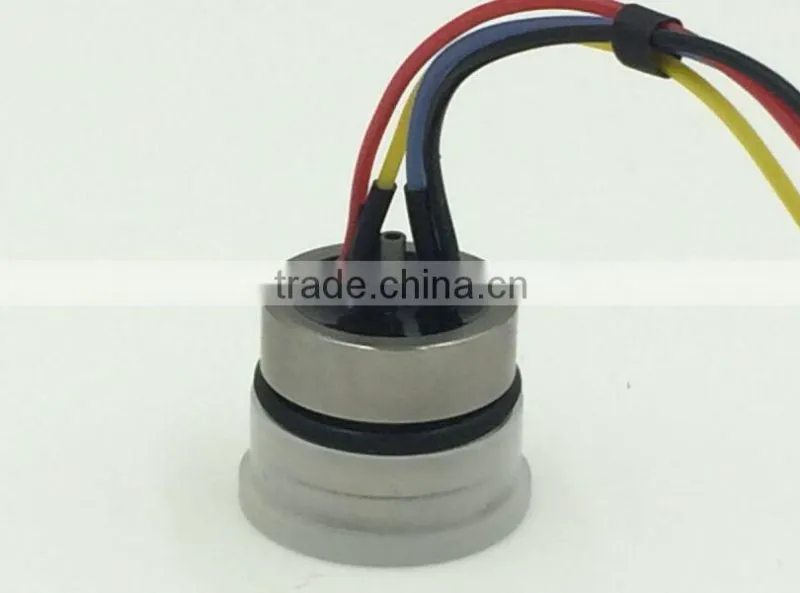

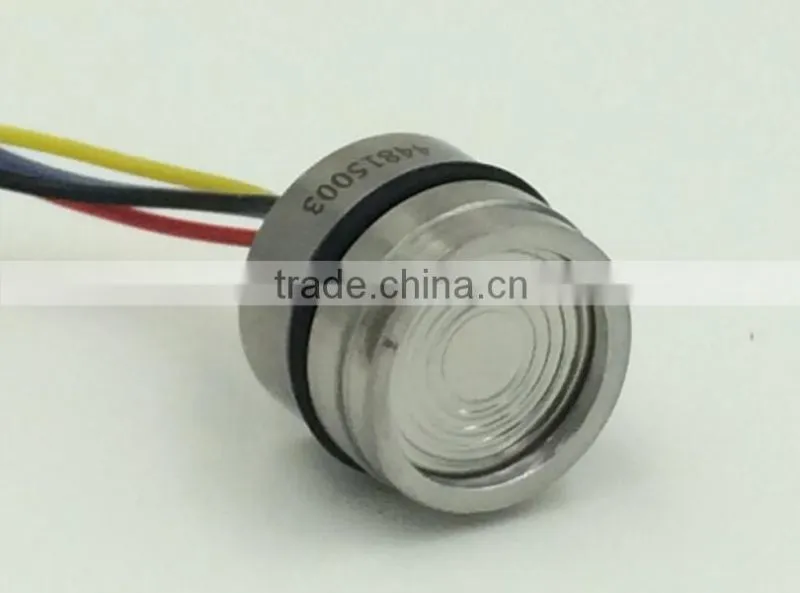

YPS-19 is 316L SS Piezoresistive Silicon Pressure Sensor , the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.
Features of 2015 new product pressure sensor :
♦ Measurement range: 0~10KPa~100Mpa ♦ O-ring mount
♦ High Accuracy and stability ♦ Piezoresistive silicon sensing element
♦ Full 316L Stainless steel
Electrical data of 2015 new product pressure sensor :
♦ Supply :1.5mAD ♦ Input impedance:3KΩ~6KΩ
♦ Output impedance:2.5KΩ~6KΩ ♦ Insulation resistance:≥100MΩ/50VDC
♦ Insulation voltage: 500VAC between the housing and electrical connection will not damage
♦ Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon pressure sensor :
Parameters |
Range:0~10KPa,20KPa,35KPa,70KPa,100KPa,200KPa,350KPa,700KPa,1MPa,2MPa, 3.5MPa , 7MPa, 10MPa, 20MPa, 35MPa, 60MPa, 70MPa, 80MPa, 90MPa, 100MPa |
|||
Typ. |
Max. |
Units |
||
Pressure Non-linearity |
±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa) |
±0.3 |
%F.S |
|
Pressure Repeatability and Hysteresis |
0.02 |
0.05 |
%F.S |
|
Zero Output |
0±1 |
0±2 |
mV |
|
Span Output |
≤20KPa |
50±10 |
50±30 |
mV |
≥35 KPa |
100±10 |
100±30 |
mV |
|
Temperature Error zero |
≤20KPa |
±1 |
±2 |
%F.S |
≥35 KPa |
±0.5 |
±1 |
%F.S |
|
Temperature Error-Span |
≤20KPa |
±1 |
±2 |
%F.S |
≥35 KPa |
±0.5 |
±1.0 |
%F.S |
|
Overload Pressure |
3X Rated range or 120MPa, whichever is less |
Rated range |
||
Operating Temperature Range |
-20~80 |
°C |
||
Compensated Temperature Range |
0~70,0~50(Range≤20KPa) |
°C |
||
Storage Temperature Range |
-40~125 |
°C |
||
Above parameter under condition: Supply:1.5mA Temperature: 25°C
