Chinese Aliminum Steel Load Cell Price

Chinese Aliminum Steel Load Cell Price photo-1
US$ 5 - 50 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
ya25
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number ya25

Specifications

chinese aliminum steel load cell price
1. low price
2. high quality
3. CE

chinese aliminum steel load cell price





Specifications of chinese aliminum steel load cell price:

 1. Rated Load (Kg): 3-120

2. Rated Output (mV/V): 2.0
3. Zero Balance (%F.S): ±1
4. Input Resistance (Ω): 400±10

5. Output Resistance (Ω): 350±3
6. Excitation Voltage (VDC): 9-12

7. Nonlinearity (%F.S): 0.02

8. Hysteresis (%F.S): 0.02

9. Repeatability (%F.S): 0.02

10. Creep (30min) (%F.S): 0.02

11. Operating Temperature(deg C): -20 To +65

12. Temperature Effect on Zero (%F.S/10): 0.03

13. Temperature Effect on Span (%F.S/10): 0.02

14. Insulation Resistance ( MΩ): 5000 (50VDC)

15. Safe Overload (%F.S): 120

16. Material: Aluminium Alloy

17. Protection Grade: IP65

 (Outline size: 130(L)x30(W)x22(H)mm

 chinese aliminum steel load cell price

Features of chinese aliminum steel load cell price:

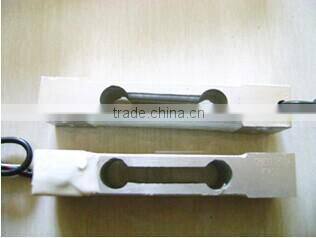

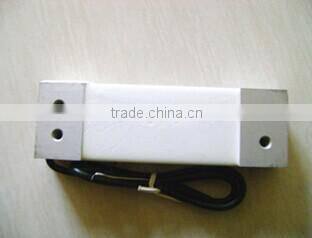

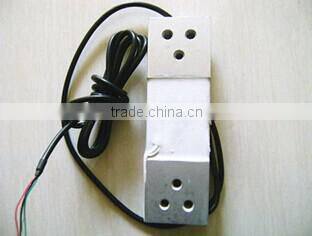

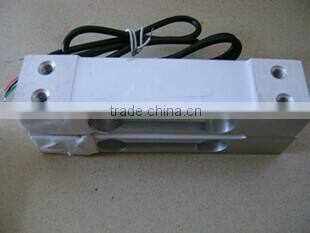

Single point parallel beam load cell

Anodized surface

IP 65 protection,high accuracy

competitive price

Mainly used for weighing scales,electronic scales,price computing scales and industrial weighing and control.
