Specifications

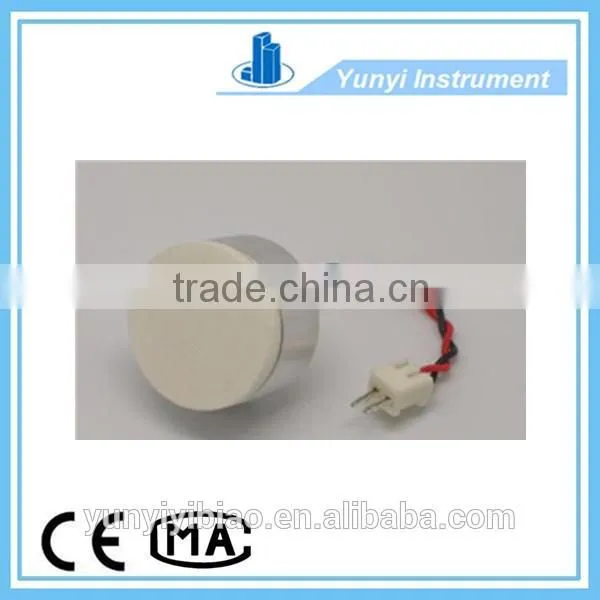

High frequency ultrasonic sensor/transducer/probe1. low price
2. high quality
3. CE
high frequency ultrasonic sensor
Technical data:
Category: High-frequency type
Category: Transceiver
Nominal frequency: 200.0 ± 8.0KHz
Bandwidth: 16.0KHz
Sensitivity:-60dB min.
Minimum parallel impedance: 600 ± 30%?
Static capacitance: 400Pf ± 20%
Maximum input voltage: 500Vp-p
Direction angle: 7 ° ± 2 ° (-6dB)
Detection range: 0.1 ~ 2m (reflection)
Protection: IP65
Operating temperature: -40 ° C ~ +80 ° C
Storage temperature: -40 ° C ~ +85 ° C
Case Material: Aluminum
Features:
Waterproof, dustproof.
Sensitivity large, sound pressure, high accuracy.
Has good durability as well as temperature and humidity.
Choice of materials, environmental protection, all raw materials are SGS report.
Cost-effective.
Applacation:
Mainly used in ultrasonic distance measurement, ultrasonic correction system.
Robot design and research.
Security and alarm systems.
Ultrasonic ranging system.
Dimension:
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this high frequency ultrasonic sensor , please visit the website
