thermocouple transmitter with 4-20ma output
Thermocouple transmitter of description:
1,The thermoccouple transmitter of application:Universal smart temperature transmitter for thermocouple,converting thermocouples input signals into a scalable 4 to 20 mA.
2, The thermoccouple transmitter of Installation:Directly installed to thermocouple Form B.
Equipped with special card can realize DIN35 guide rail installation.
thermocouple transmitter of features:
1,Compact structure
2,Easy Installation.
3,Open and Short-Circuit Input Detection.
4,self-monitoring.
5,Handheld operator Configurable,Configurable information memorized.
6,High precision,Low power dissipation,Range temperature ,Stability work.
7,Interfaces to All Standard Thermocouples.
Technical data:
Input | |
Measured variable |
Temperature |
Measurement accuracy |
0.2% |
Output | |
Output signal |
4~20mA |
Load resistance |
RL≤(Ue-7.5)/0.021A |
Signal on alarm |
IH = 20.5mA ; IL= 3.8mA |
Input Sensor break,output current |
22mA |
Sensor open-circuit,output current |
22mA |
Sampling period |
rating value 0.25S |
Protection |
Reverse polarity protection |
Essential parameter | |
Supply voltage |
7.5~45V,d.c. |
Temperature drift |
0.01% F.S./ °C |
Damping time |
< 5S |
|
Insulation strength (among Input and output) |
1500V,a.c.;1min |
|
Insulation resistance (among Input and output) |
≥100MΩ |
Electromagnetic compatibility |
EN61326-1:2006 EN61000-3-2:2006 + A1:2009 + A2:2009 EN61000-3-3:2008 |
Minimum range |
50°C |
Weight |
32g |
Rated operating condition - Environment temperature | |
Storage temperature |
-50°C~+105°C |
Operating temperature |
-40°C~+85°C |
Relative humidity |
≤85% |
Reference operating conditions |
23°C |
Smart Temperature Transmitter(Front)

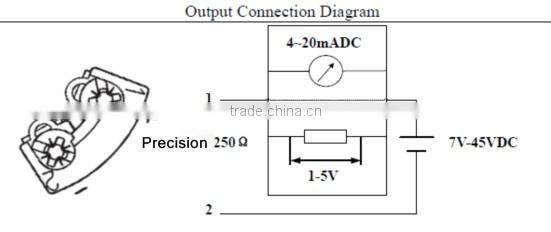

Power supply and signal output

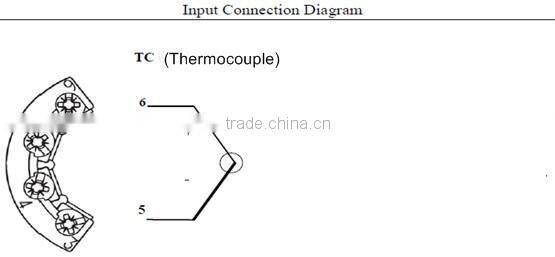

Signal input

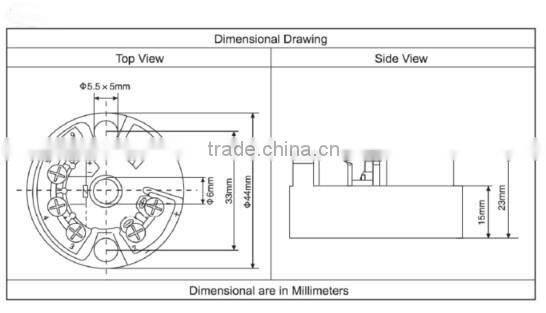

Dimensions:
