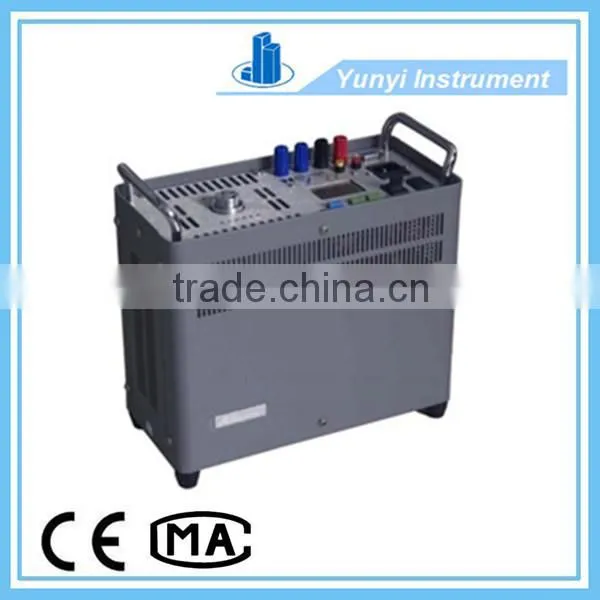

Help CenterPD-2400 Dry Block Temperature Calibrator
Related Products
-
2013 Factory Promotional Mini Industrial Digital Thermometer PricesUS$ 10 - 80MOQ: 1 Piece -
PD2400 Dry Block Temperature Calibrator Made in ChinaUS$ 4,460 - 5,968MOQ: 1 Piece
-
Industrial Bimetal ThermometerUS$ 15 - 56MOQ: 1 Piece
-
Thermometer K Type Digital Temperature MeterUS$ 16 - 25MOQ: 1 Piece
-
Digital Thermometer, Digital Temperature Meter, k Type Digital ThermometerUS$ 16 - 25MOQ: 1 Piece
Specifications
Dry block temperature calibratorprofessional manufacturer
quick shipment
CEcertification
Dry body temperature calibrator
Description:
The Temperature Calibrators have a built in PID Temperature Indicator Controller for Reference & also for controlling the temperature of the Dry Block as per selection from the front keys. Accurate temperature can be maintained in the Dry Block Temperature Calibrator uniformly using the PID Controller.
Standard supply includes FL 11 Dry Block, Temperature Calibrator, 6 hole insert, Clamp, Power Cord and Calibration Certificate traceable to National Standards. Standard Temperature Ranges available are 50 to 600 Deg. C with an accuracy of /-0.7 Deg. C. Other temperature ranges are also available on request.
Features:
Technical performance indicators
Temperature range: above the maximum ambient temperature of 10 °C to 400 °C
Working medium: air
Tank size: diameter 25.4/18.6mm; deep 165mm
Work area: diameter 16mm; deep 165mm
Cooling / heating: 24VDC DC heating / cooling fan is directly trough
Temperature control: digital PID temperature control
Display Resolution: 0.01 °C
Temperature Stability: Better than ± 0.02 °C
Display accuracy: ± 0.2 °C (after calibration)
Warm-up time: about 20 minutes (50 °C rose 400 °C)
Cooling time: about 25 minutes (400 °C down to 50 °C)
Operating voltage: 220V ± 10% single phase AC mains; 24V/7AH (Ah) DC battery power.
Rated power consumption: 160 W
Body size: 268 × 125 × 256mm
Net weight: about 7.5 kg
Operating environment conditions
Ambient temperature: 5 °C ~ 40 °C
Humidity: 15% to 85%
Vibration: Avoid severe impact
AC supply voltage / frequency: 220VAC ± 10% / 50 Hz ± 1 Hz
Prohibited conditions: control panel, chassis shall not enter into oil, water, must not fall by the strike. AC voltage must not exceed the specified value, the cooling air duct must not be obstructed. Under the condition of the packaging does not exceed the maximum acceleration by the strike (100 ± 10) m/s2 not operate the instrument box.
Storage Conditions
Ambient temperature: -5 °C ~ 65 °C
Humidity: 15% ~ 65% (non-condensing)
