Wall mount Temperature Transmitter
Description :
Pt100 temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.
Specification :
Measuring media: liquid, gas
Measuring range: -50-300 ℃
Power supply range: 9 ~ 36VDC
Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485
Probe material: stainless steel 304
Accuracy class: ± 0.5 ℃
Ambient temperature: -40 ~ 85 ℃
Stability: ± 0.1% FS / Year
Protection: IP65
Pressure Level: 10MPa (above can be customized)
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100kΩ
Fearures:
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Application:
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
Drawing:

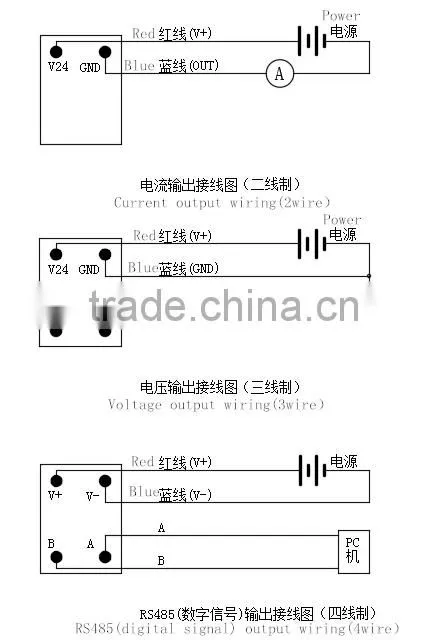

Wring
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Wall mount Temperature Transmitter , please contact
Katherina Wang skype:wangxiaoyuncalar
Or visit website for more details
