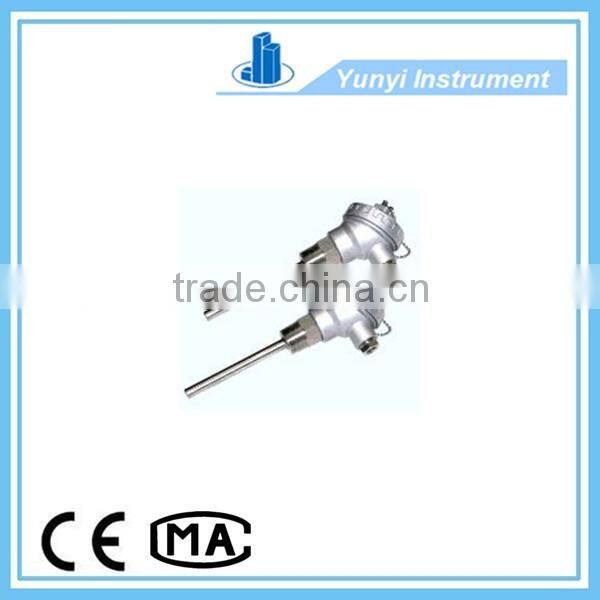

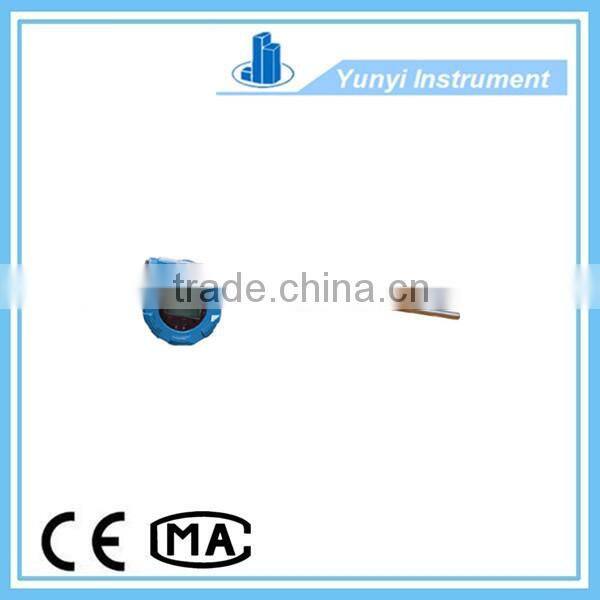

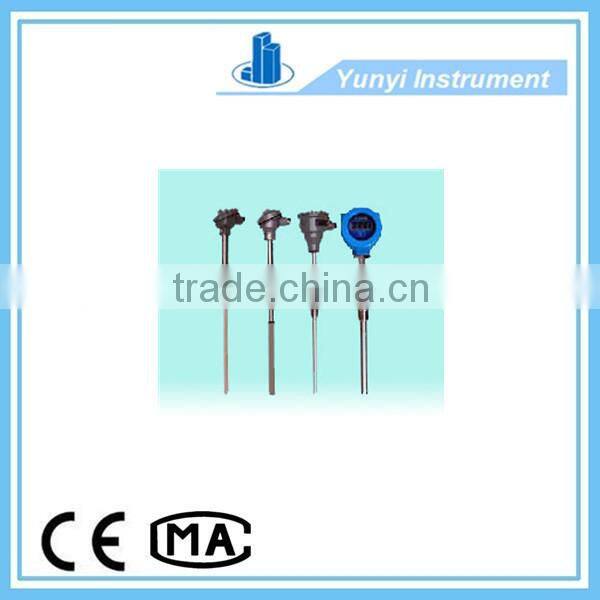

Smart Temperature Transmitter 4 to 20 mA
Features of Integrated Temperature Transmitter :
1 Can wire transfer. Signal converter powered two wire output signal is also transmitted
2 Constant current or constant voltage signal output signals, anti-interference ability, good remote performance.
3 Signal converter uses epoxy encapsulated into modules, with anti-vibration, corrosion, moisture, etc., can be used in places with poor conditions.
4 Thermocouple millivolt signal by the signal converter is directly converted into 4 ~ 20mA current output, with ordinary cable to transmit signals, eliminating the need for expensive wire compensation.
5 Temperature transmitter with on-site display of both current signal 4 ~ 20mA output, but also in the field temperature reading measured temperature, bring great convenience to the operator.
6 High precision, interference, long-term stability, maintenance-free, can be remote (most far 1000 m). performance;
Technical parameters of Integrated Temperature Transmitter :
| Range | -200 ~ 1800 °C |
| General Accuracy | ± 0.25% |
| Supply voltage | 13 ~ 30V, DC |
| Load Resistance | 0 ~ 850Ω |
| Output signal | 4 ~ 20mA |
| Basic error | ± 0.2%, ± 0.5% |
| Display | LCD |
| Ambient Temperature Effect | 0.25% / 10 °C |
| Cold junction compensation error | 0.5% / 10 °C |
| Ex-mark | d Ⅱ BT4 |
| Protection | IP65 |
| Input type | RTD, Pt100, second-or third-line thermocouple (all known types) |
| Ambient temperature | -40-85 °C, with display type is -10-70 °C |
| Humidity | 0-95% RH, non-condensing |
| Display | Digital LCD display pointer table or optional |
| Protection tube material | 1Cr18Ni9Ti or ceramic or steel jade tube |
