Diffused Silicon Oil-filled Cheap Pressure Sensor

Name: Diffused Silicon Oil-filled Cheap Pressure Sensor
Brand: Yunyi
SKU: 109090519
Availability: InStock

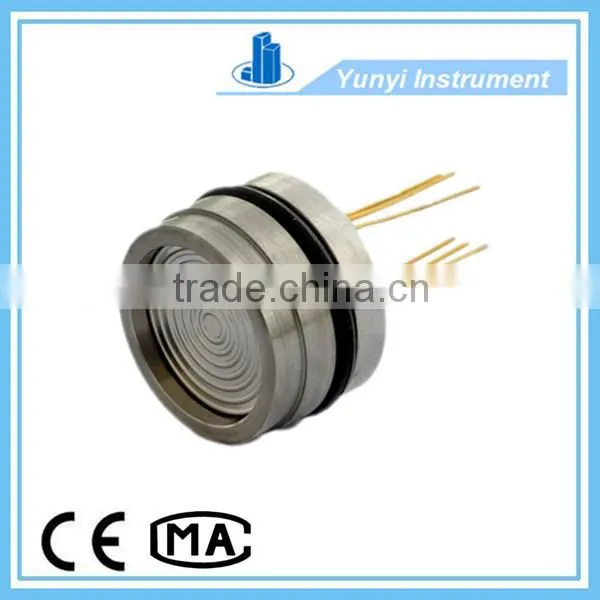

Diffused Silicon Oil-filled Cheap Pressure Sensor thumbnail-1

Diffused Silicon Oil-filled Cheap Pressure Sensor photo-1

US$ 100 - 800 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Yunyi

Model Number:

YPS-19

Contact Supplier Request Quote Chat Now

Xi'an Yunyi Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Yunyi

Model Number YPS-19

Specifications

Diffused Silicon Oil-filled Cheap Pressure Sensor
professional manufacturer
quick shipment
CE Approval

Diffused Silicon Oil-filled Cheap Pressure Sensor

Description of Diffused Silicon Oil-filled Cheap Pressure Sensor

Diffused Silicon Oil-filled Cheap Pressure Sensor chip, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

Features of Diffused Silicon Oil-filled Cheap Pressure Sensor ♦ Measurement range: 0~10KPa~100Mpa ♦ O-ring mount

♦ High Accuracy and stability ♦ Piezoresistive silicon sensing element
♦ Full 316L Stainless steel

Application of Piezoresistive Silicon pressure transducer/sensor

♦ Measurement pressure of gas and liquid                      ♦ Petroleum exploitation
♦ Water supply,warm supply of town                            ♦ Process control system
♦ Aviation and navigation inspection                              ♦ Hydraulic pressure

Electrical Data

♦ Supply :1.5mAD ♦ Input impedance:3KΩ~6KΩ

♦ Output impedance:2.5KΩ~6KΩ ♦ Insulation resistance:≥100MΩ/50VDC

♦ Insulation voltage: 500VAC between the housing and electrical connection will not damage

♦ Medium compatible: liquid, gas compatible with 316L stainless steel

Performance Specification of Diffused Silicon Oil-filled Cheap Pressure Sensor

Parameters		Range:0~10KPa,20KPa,35KPa,70KPa,100KPa,200KPa,350KPa,700KPa,1MPa,2MPa, 3.5MPa , 7MPa, 10MPa, 20MPa, 35MPa, 60MPa, 70MPa, 80MPa, 90MPa, 100MPa
Parameters		Typ.	Max.	Units
Pressure Non-linearity		±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa)	±0.3	%F.S
Pressure Repeatability and Hysteresis		0.02	0.05	%F.S
Zero Output		0±1	0±2	mV
Span Output	≤20KPa	50±10	50±30	mV
Span Output	≥35 KPa	100±10	100±30	mV
Temperature Error zero	≤20KPa	±1	±2	%F.S
Temperature Error zero	≥35 KPa	±0.5	±1	%F.S
Temperature Error-Span	≤20KPa	±1	±2	%F.S
Temperature Error-Span	≥35 KPa	±0.5	±1.0	%F.S
Overload Pressure		3X Rated range or 120MPa, whichever is less		Rated range
Operating Temperature Range		-20~80		°C
Compensated Temperature Range		0~70,0~50(Range≤20KPa)		°C
Storage Temperature Range		-40~125		°C

Above parameter under condition: Supply:1.5mA Temperature: 25°C

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
