Stainless Steel Pressure Sensor

Stainless Steel Pressure Sensor thumbnail-1
Stainless Steel Pressure Sensor thumbnail-2
Stainless Steel Pressure Sensor thumbnail-3
Stainless Steel Pressure Sensor photo-1
Stainless Steel Pressure Sensor photo-2
Stainless Steel Pressure Sensor photo-3
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
YD31
Contact Supplier Request Quote Chat Now
Xi'an Yunyi Instrument Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number YD31

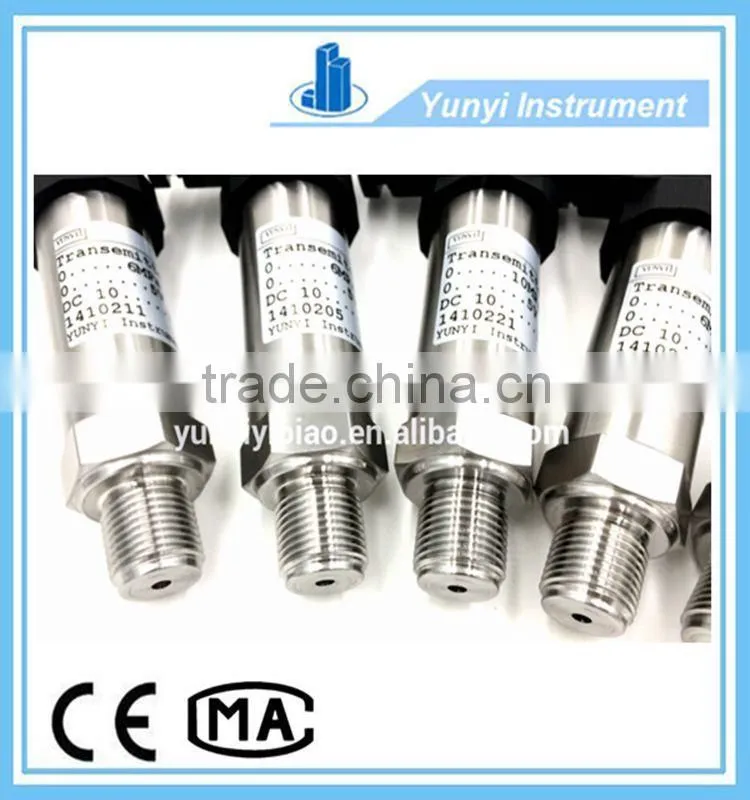

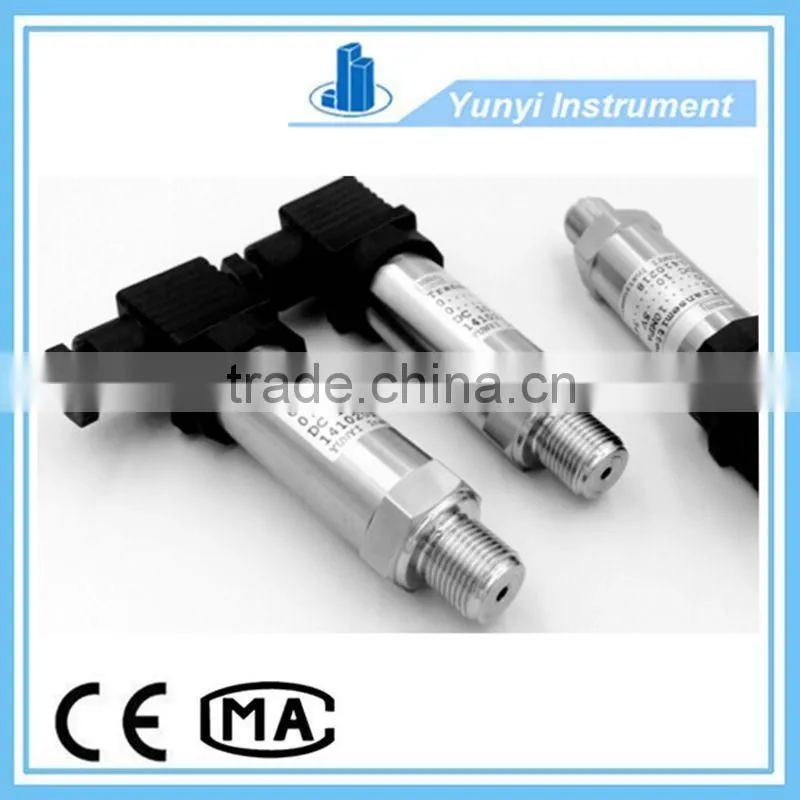

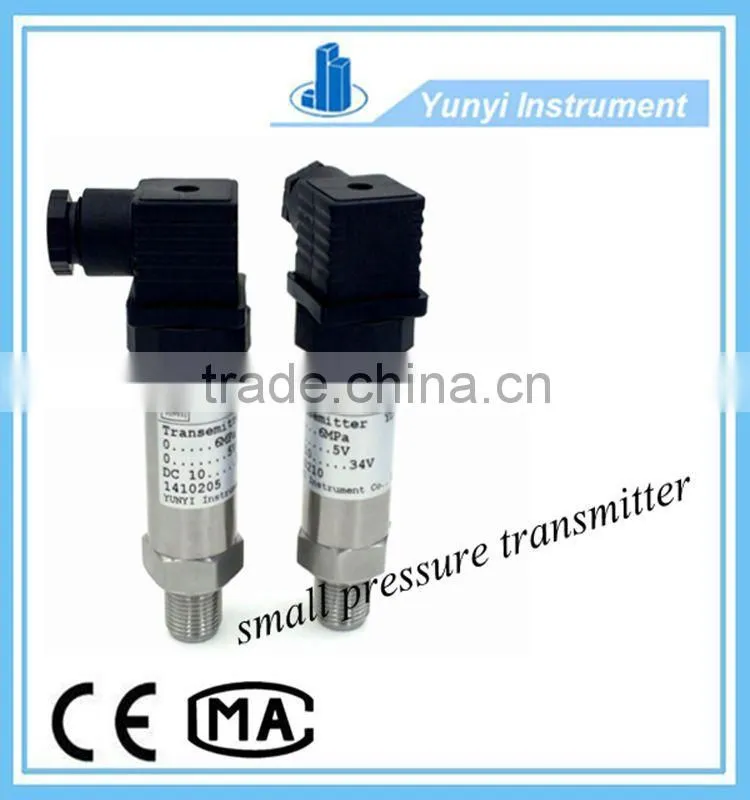

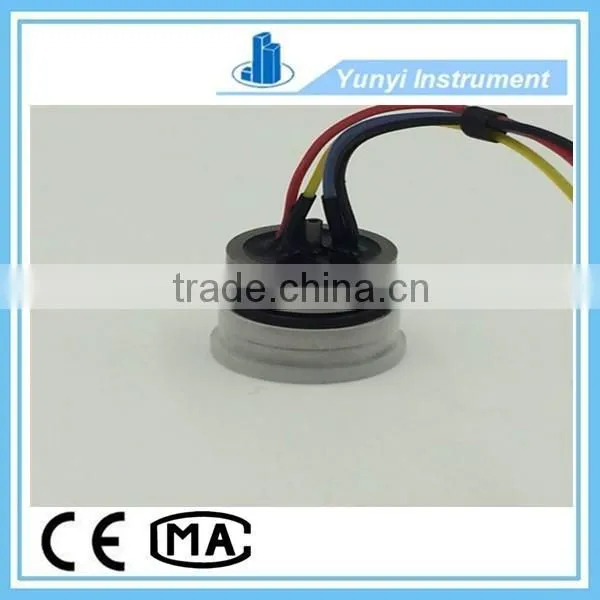

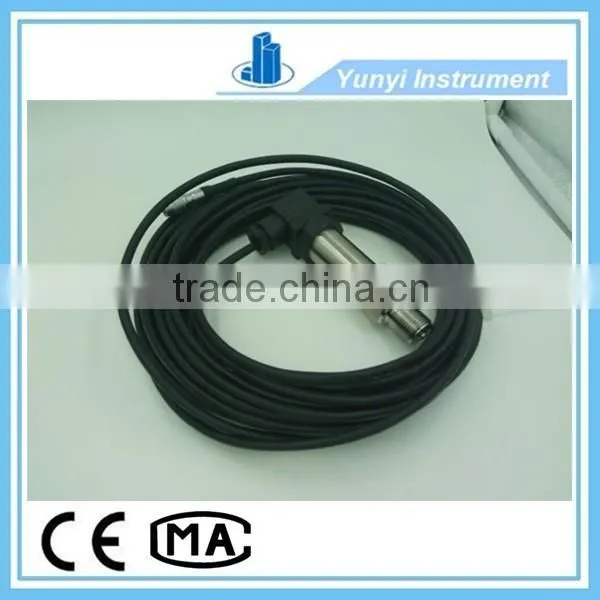

Stainless steel pressure sensor

Features:

Compact structure, beautiful appearance

Digital circuit

High precision, high stability

Strong anti-interference, good long-term stability

Small volume, light weight, convenient installation and use

Wide measuring range, can measure absolute pressure, gauge pressure

Variety choice of processes and electrical connection

Suitable for mass production, economic and reliable

Parameters:

Measure range:            -100KPa~0~10KPa~100Mpa

Pressure type:              gauge pressure, absolute pressure

Power supply:             24VDC, 12VDC

Output signal:              4-20mA, 1-5V, 0-5V

Temperature compensation:   -10~70℃

Working temperature:       -20~85℃

Storage temperature:        -40~125℃

Zero temperature drift:       ±1.5%FS

Sensitivity temperature drift:  ±1.5%FS

Overload:                 150%FS

Mechanical vibration:       20g(20-5000HZ)

Accuracy:                ± 0.5%FS       ± 0.25%FS

Response time:            ≤1ms(Up to 90%FS)

Load resistance:          ≤(U-15)/0.02Ω

Material:                 Stainless steel case; internal 316L sensor

Media compatible:         Media compatible with 316L stainless steel

Protection grade:           IP65

Stainless steel pressure sensorStainless steel pressure sensorStainless steel pressure sensor
