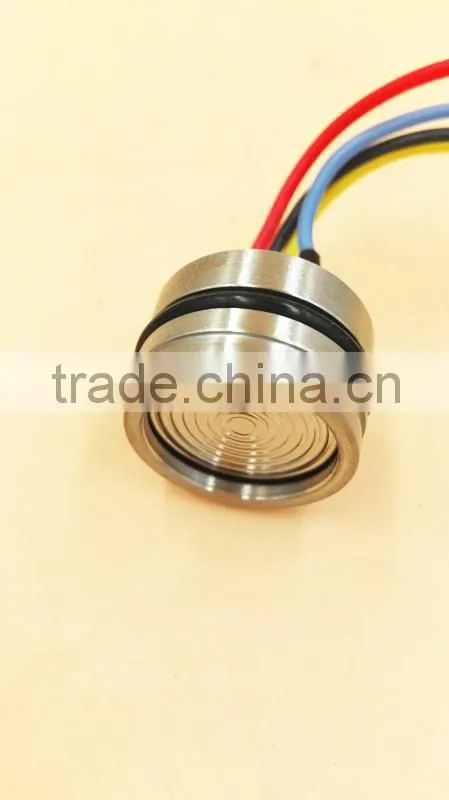

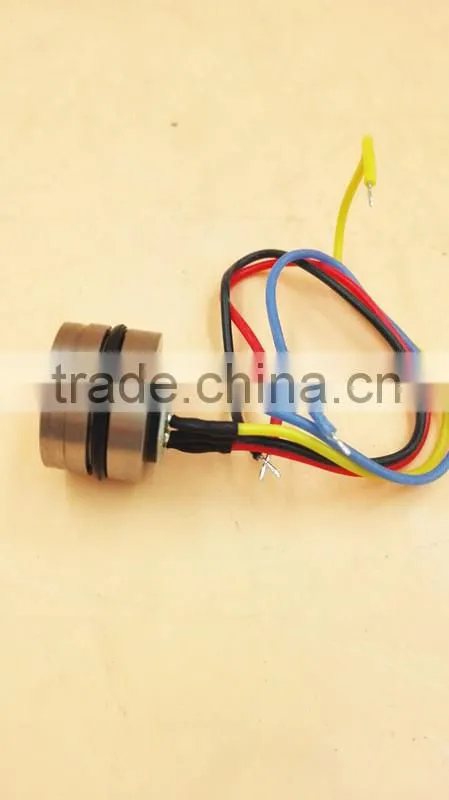

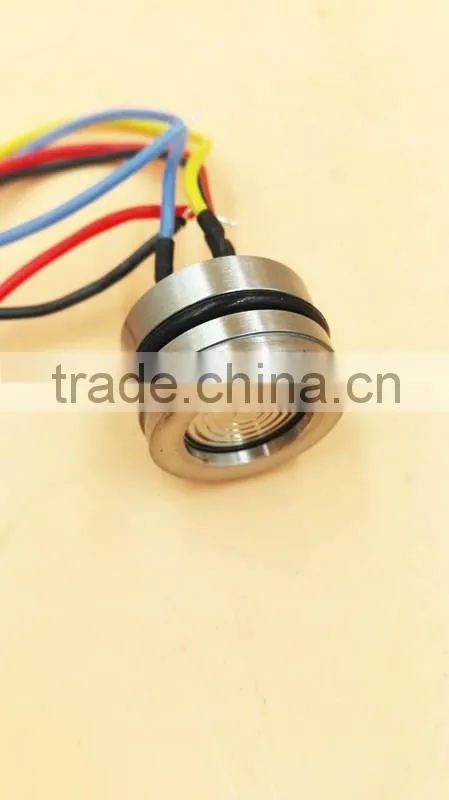

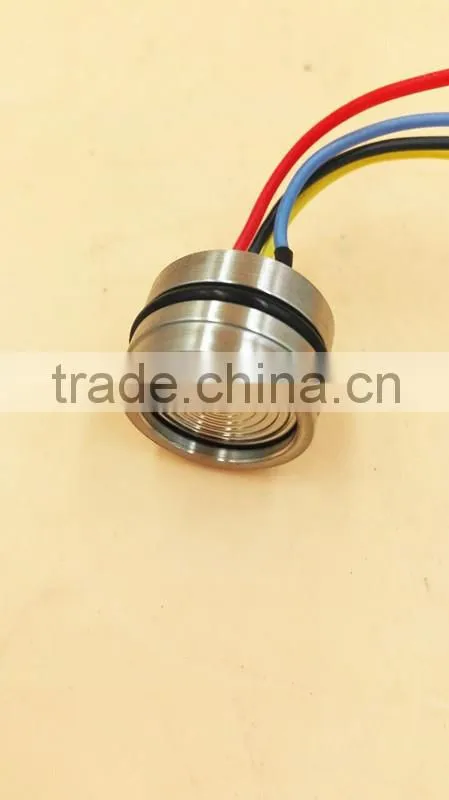

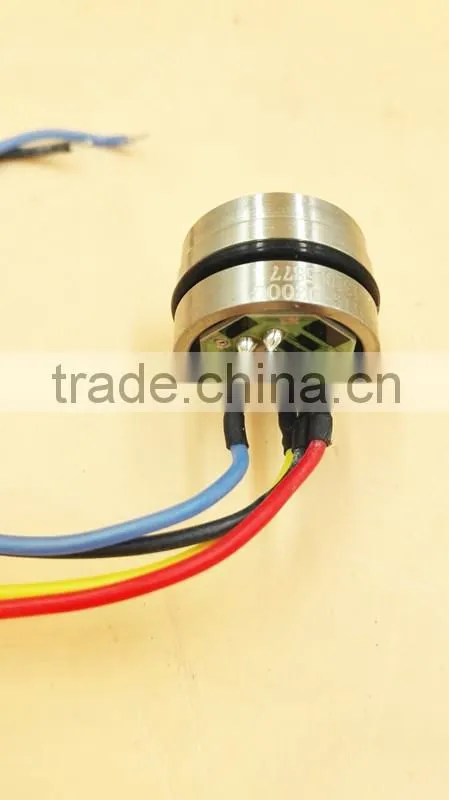

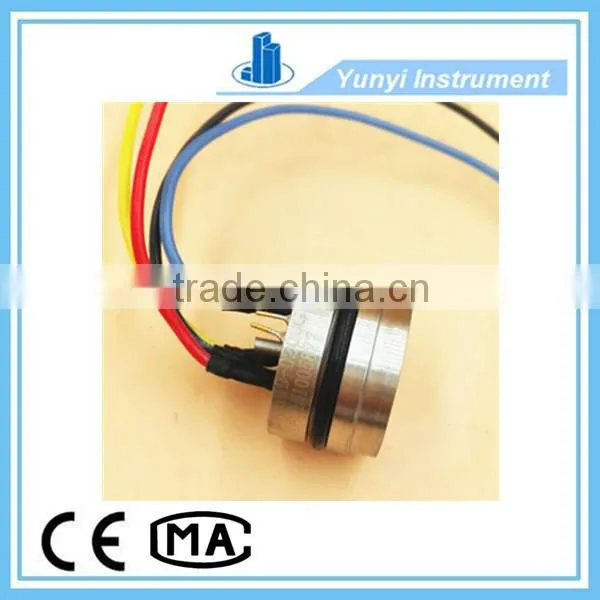

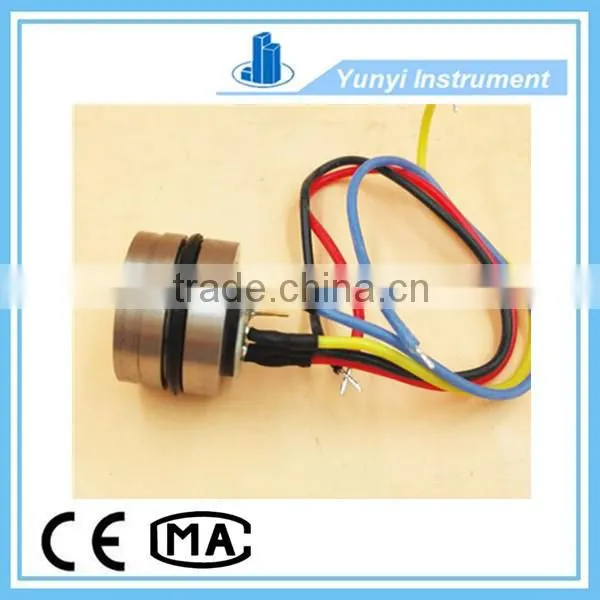

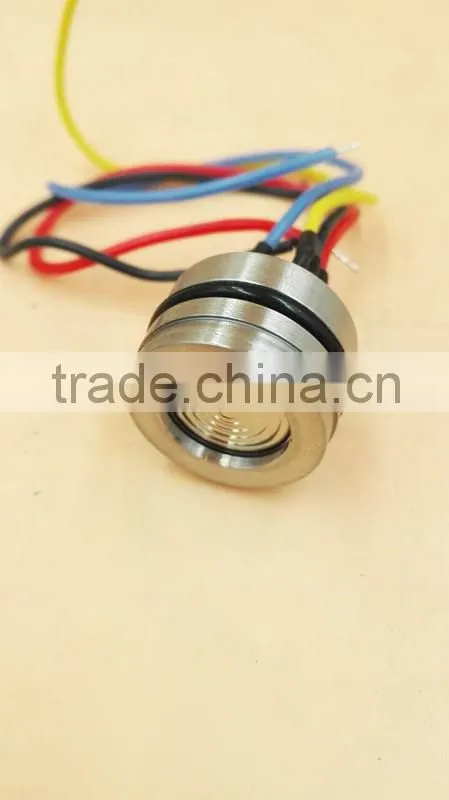

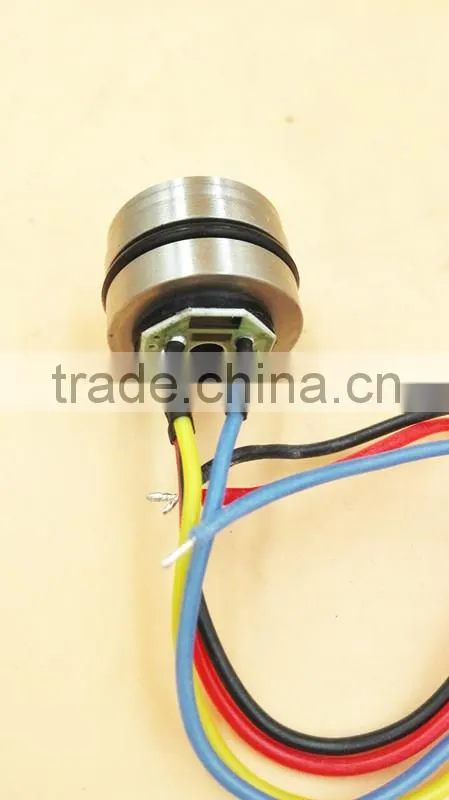

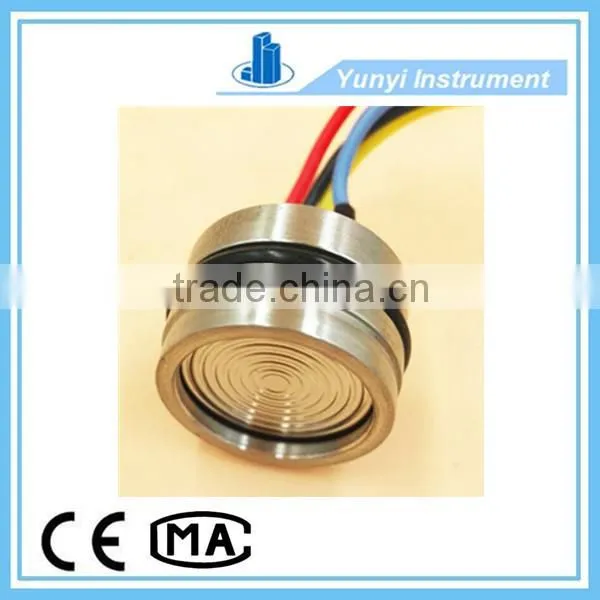

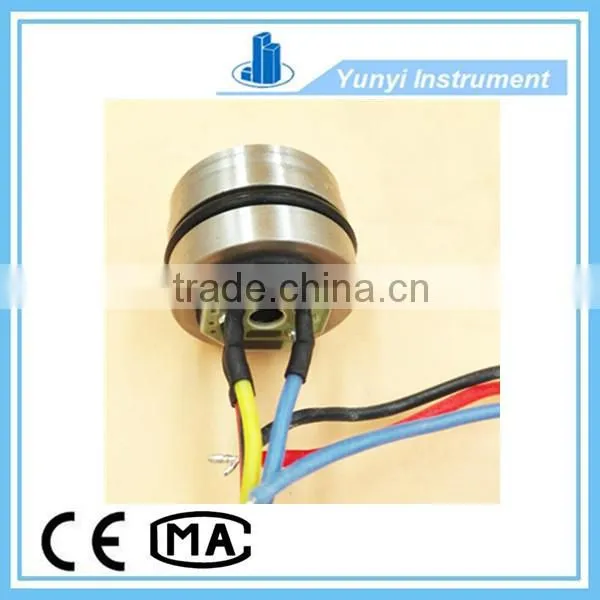

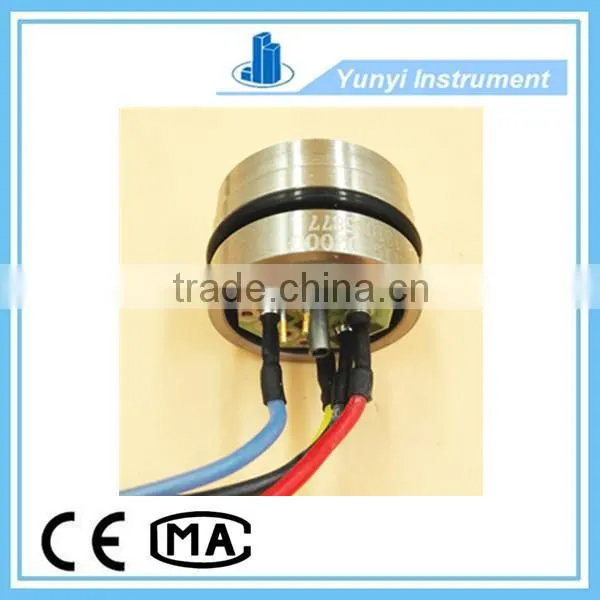

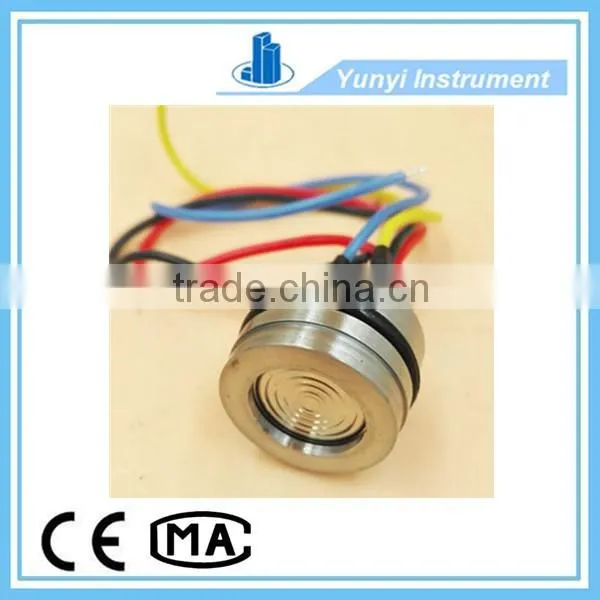

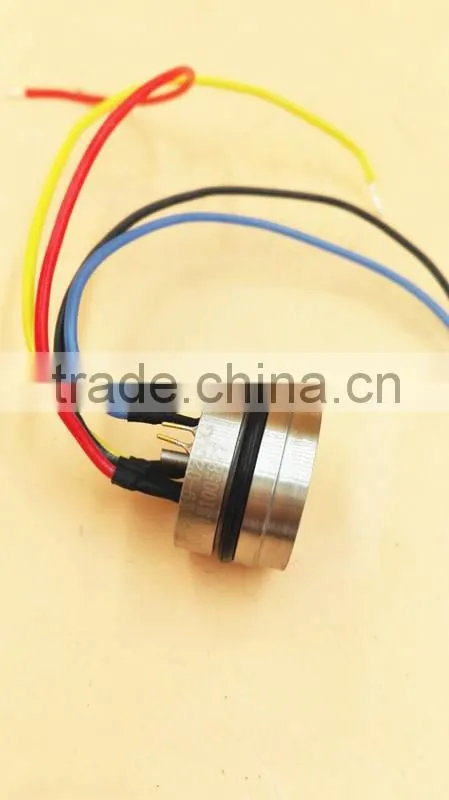

19mm Stainless steel Piezoresistive Silicon Pressure Sensor
Piezoresistive pressure sensor
It is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It
utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing
element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero
correction. It has high reliability and stability.

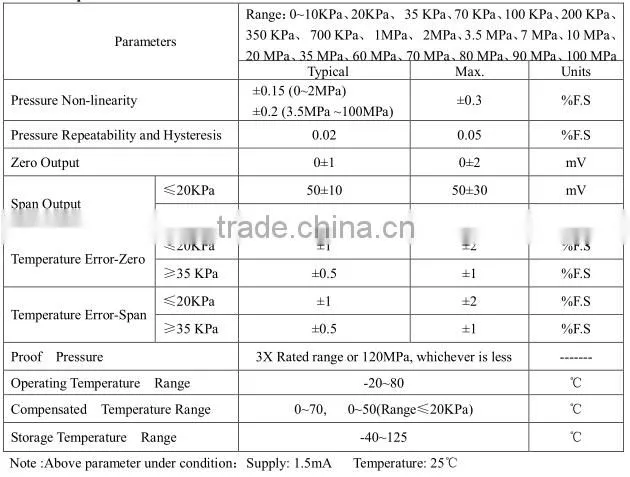

What is the technical parameters of piezoresistive pressure sensor ?
Supply:1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ
Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
What is the features of piezoresistive pressure sensor ?
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability

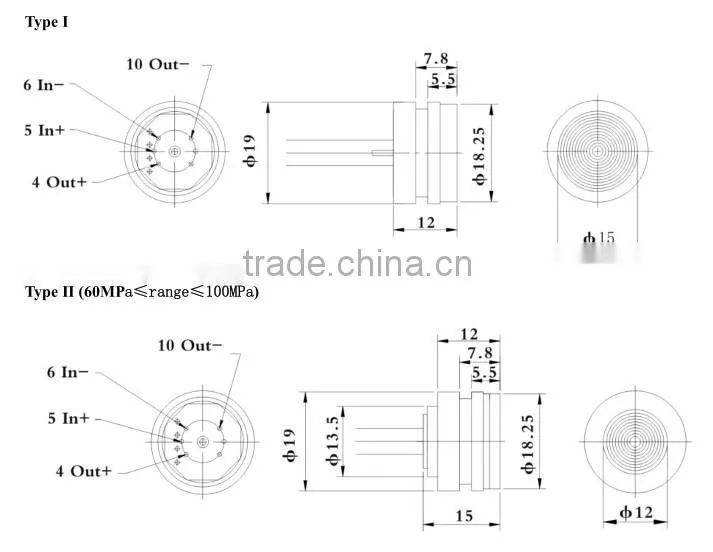

What is the figure of piezoresistive pressure sensor ?
What is the applications of piezoresistive pressure sensor ?
Measurement pressure of gas and liquid Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure
What is the development of bout Us?
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this piezoresistive pressure sensor , please visit the website
or contact skype:wangxiaoyuncalar
