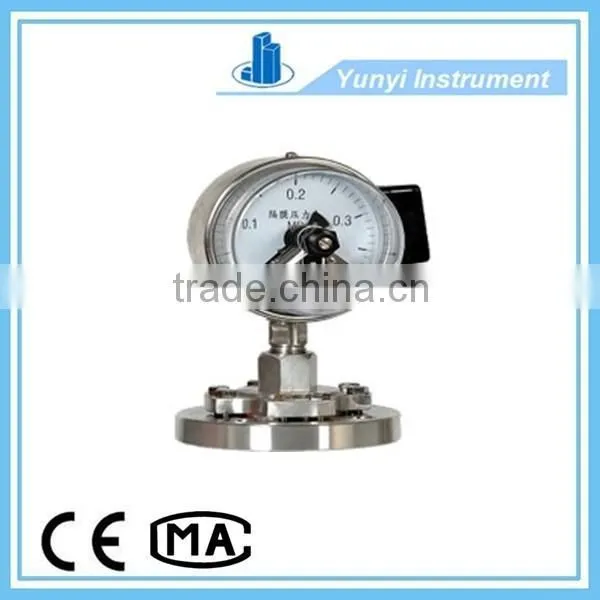

Name: Electric contact diaphragm pressure gauge
Model: YXTP-100/YXTP-150
Electric contact diaphragm pressure gauge
Specifications of Electric contact diaphragm pressure gauge:
Dial Size:
4inch(100mm)
6inch(150mm)
Pressure Range:
0~2kpa
0~200kpa(Micro pressure type)
0~50Mpa
0~500Kgf/cm2(Atmospheric pressure type )
0~100Mpa
0~1000Kgf/cm2(High pressure type)
-0.1~0~4Mpa(Max positive pressure is 4Mpa)
-0.1~0~40Kgf/cm2
also can be customized
Case Material:
Stainless Steel
Gauge Window: Transparent acrylic cover
Dail: Aluminum alloy sheet(Single or double scale design)
Wetted parts:
Diaphragm Material: 0Cr17Ni12Mo2(316); Cu30Ni70; H276C; Ta or Fluorine rubber or Fluorine plastic(F4).
Flange Material: Stainless steel 0Cr17Ni12Mo2(316); Stainless steel lined with fluorine plastic(316+F4).
Sealing gasket Material: Nitrile rubber; fluorine rubber; silicone rubber
