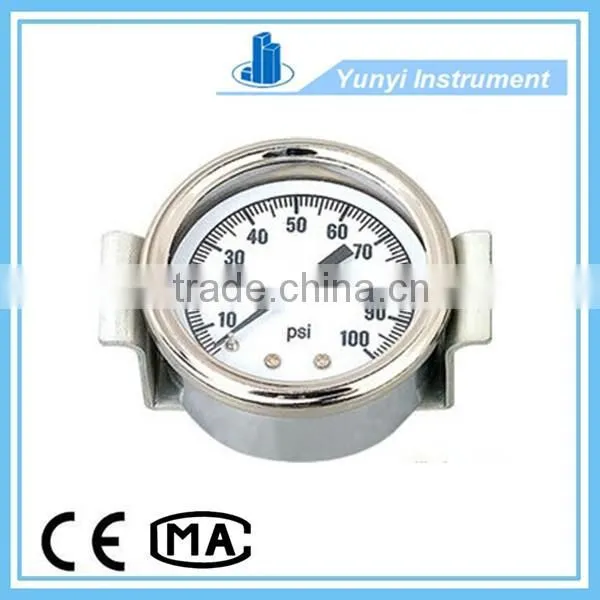

oil pressure gauge made in China
- 1000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | YTF-60/100/150 |
Packaging Details
Standard packing(or according to the customer request)
Product Description
Specifications
oil pressure gauge made in China1 professional manufacturer
2 quick shipment
3 Low price
pressure gauge :
model number | Y-60 Y-100 Y-150 Y-200 | YZ-60 YZ-100 YZ-150 | Z-60 Z-100 Z-150 | YBF-60 YBF-100 YBF-150 | YBFN-60 YBFN-100 YBFN-150 |
Name | pressure gauge | vacuum pressure gauge | vacuum gauge | ss pressure gauge | shock proof ss pressure gauge |
DN | 60,100,150 | 60,100,150 | 60,100,150 | 60,100,150 | 60,100,150 |
RANGE | 0~0.1MPa to 0~60MPa | -0.1~0.06MPa to -0.1~2.4MPa | -0.1~0MPa | 0~0.1MPa to 0~60MPa | 0~0.1MPa to 0~60MPa |
Accuracy | ±1.6% | ±1.6% | ±1.6% | ±1.6% | ±1.6% |
installation | radial direction or radial direction | radial direction or radial direction | radial direction | radial direction | radial direction |
connection | Y-60M14×1.5 others M20×1.5 | YZ-60M14×1.5 others M20×1.5 | Z-60M14×1.5 others M20×1.5 | YBF-60M14×1.5 others M20×1.5 | YBFN-60M14×1.5 others M20×1.5 |
protection | IP54 | IP54 | IP54 | IP55 | IP54 |
Bourdon tube material | copper | copper | copper | CrNiSS | CrNiSS |
Machine core material | copper | copper | copper | CrNiSS | CrNiSS |
interface material | copper | copper | copper | CrNiSS | CrNiSS |
case | Carbon steel welded | Carbon steel welded | Carbon steel welded | CrNiSS | CrNiSS |
Extras | -Z Axial installed directly -ZQ The axial embedded -T Radial convex outfit -TQ Radial embedded |
model no. | YEF-100 YEF-150 | YPF-100 YPF-150 | YTP-100 YTP-150 YTPN-100 YTPN-150 | YX-100 electric contact pressure gauge YXC-100 Magnetic help type electric contact pressure gauge YXN-100shock proof electric contact pressure gauge |
name | capsule pressure gauge | Membrane vacuum-gauge | diaphragm-seal pressure gauge | electric contact pressure gauge |
DN | 100,150 | 100,150 | 100,150 | 100,150 |
RANGE | 0~0.1to 0~60KPa | -0.1~0to -0.1~2.5MPa | 0~0.1to 0~0.6MPa | -0.1~0to 0~60MPa |
accury | >4KPa, ±1.6% others ±2.5% | ±1.6% | ±1.6% | ±1.6% |
installation | radial direction | radial direction | radial direction | radial direction |
connector | M20×1.5 | M20×1.5 | fixed flange GB/ANSIstandard | M20×1.5 |
protection | IP55 | IP55 | IP55 shock proof IP65 | IP55 |
Diaphragm material | CrNiSS | CrNiSS/ Hastelloy C/ Monel | ||
Bourdon tube material | copper/CrNiSS | CrNiSS | CrNiSS | copper/CrNiSS |
Machine core material | copper/CrNiSS | CrNiSS | CrNiSS | copper/CrNiSS |
Interface material | CrNiSS | CrNiSS | CrNiSS | copper/CrNiSS |
case | Carbon steel welded /CrNiSS | CrNiSS | CrNiSS | Carbon steel welded /CrNiSS |
Extras | -T Radial convex outfit -TO Radial embedded | -T Radial convex outfit -TO Radial embedded |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this diaphragm pressure gauge , please visit the website
Katherina Wang
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
