Specifications

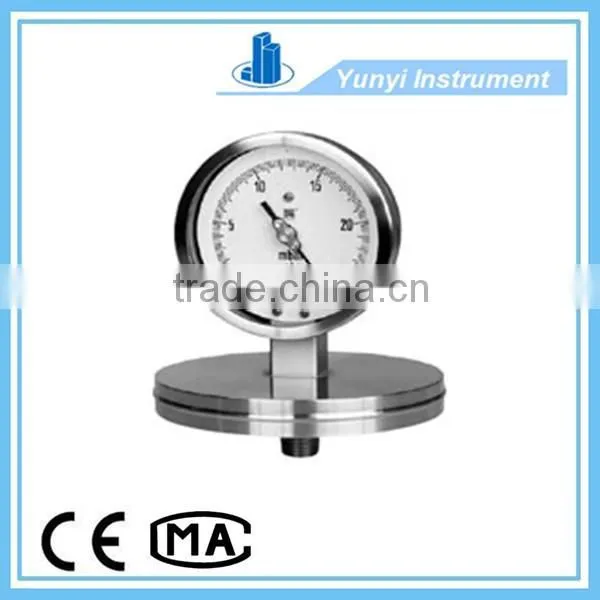

Stainless Steel Anti-corrosive Compound Diaphragm Pressure Gauge 1diaphragm pressure gauges2 professional manufacturer
The anti-corrosion diaphragm pressure
Features:
Accuracy: 2.5
Ambient temperature: -40 ~ +70 °C; relative humidity less than 90%
Temperature effect: When the temperature deviation from 20 ± 5 °C, the temperature of the additional error of less than 0.04% / °C
Working position: vertical installation.
Housing protection grade: IP64
parameter
type |
range |
Ministry inch pressure D1 |
Case outer diameter D |
weight kg |
|
YPF-100A |
0~0.6,0~0.1,0~0.16,0~0.25,0~0.4 0~0.6,0~0.1,0~1.6,0~2.5,-0.1~0 -0.1~0.06,-0.1~0.15,-0.1~0.3,-0.1~0.5 -0.1~0.9,-0.1~1.5,-0.1~2.4MPa |
φ85 |
φ100 |
1.6 |
|
YPF-100B YPF-100B-F |
|||||
φ115 |
|||||
YPF-150A |
φ85 |
φ150 |
1.8 |
||
YPF-150B YPF -150B-F |
|||||
φ115 |
|||||
YPF-100B YPF-100B-F |
0~1.6,0~.5,0~4,0~6,0~10, 0~16,0~25,0~40* -1.6~0,-2.5~0,-4~0,-6~0,-10~0 -16~0,-25~0,-40~0* -0.8~0.8,-1.2~1.2,-2~2,-3~3,-5~5, -8~8,-12~12,-20~20*kPa |
φ160 |
φ100 |
2.9 |
|
φ160 |
φ150 |
3.2 |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this diaphragm pressure gauge , please visit the website
