Hose Connection Pressure Gauge

Standard packing(or according to the customer request)

Specifications

  Diaphragm pressure gauge (with hose connection)

The  specification of Diaphragm pressure gauge (with hose connection)  :

  --- diaphragm phrenic from TYPE
L-threaded (≤ 60MPa)
F-flange (≤ 25MPa)
F10-I-shaped flange (≤ 4MPa)
C-clamp type (0.1 ~ 2.5MPa)
N-nut type (0.1 ~ 2.5MPa)
Z-bolt (1 ~ 25MPa)
H-homogeneous machine (10 ~ 60MPa)

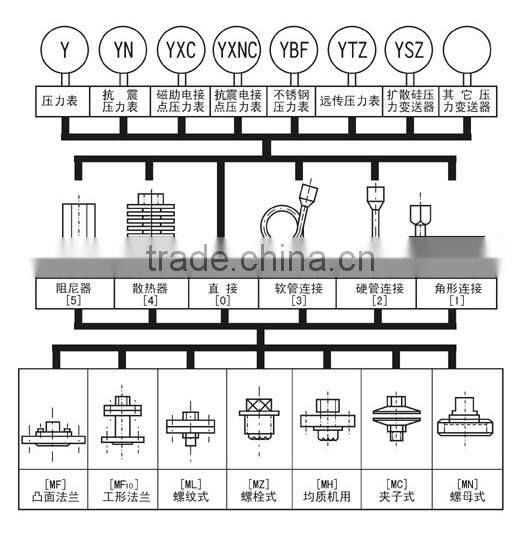

  --- connection code
0) direct (measured medium temperature <80 °C)
1) angular (measured medium temperature <150 °C)
2) Pipe (measured medium temperature <200 °C)
3) hose (1 m 1.4 m 0.6 m .2 m)
4) Heat Sink (measured medium temperature <200 °C)
5) Damper
  --- diaphragm material
316.316L, Hastelloy, Mongolian anti-Seoul alloys, tantalum film, fluorine plastic

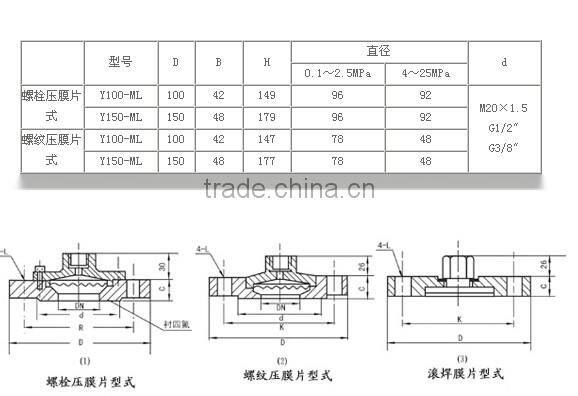

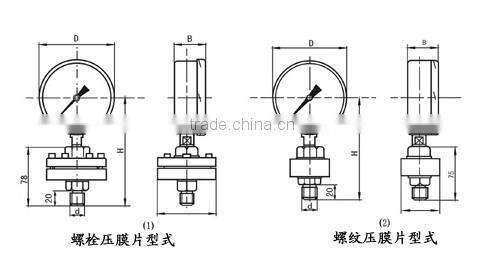

boundary dimension of Diaphragm pressure gauge (with hose connection)  :

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you need this diaphragm pressure gauge , please visit the website
