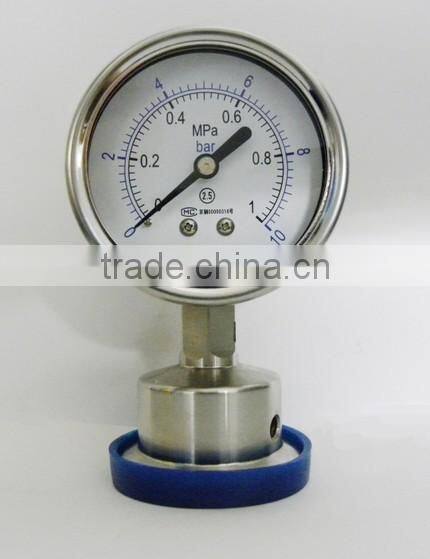

Diaphragm sanitary pressure gauge

Diaphragm sanitary pressure gauge
Standard packing(or according to the customer request)

Diaphragm sanitary pressure gauge

Description of Diaphragm sanitary pressure gauge:

Diaphragm-seal sanitary pressure gauge adopt indirect measurement structure, suitable to measure pressure of liquid ,gas or granular solid mediums , that with characteristics of high viscosity, easy to crystallization, corrosive, high temperature.

Specification of Diaphragm sanitary pressure gauge:

1 ) Accuracy class : 1.6 ; 2.5

2 ) Measuring range (Mpa) :: ~ 0.1 ~ 0 to 0 ~ 60; 0 ~ 160MPa;

3 ) additional temperature error : Due to thermal expansion and sealing liquid diaphragm stiffness and temperature, when the temperature deviation from 20 °C ± 5 °C, affected by temperature, there is an error , its value is not more than 0.1% / °C.

4 ) Temperature : Ambient temperature - 20 ~ +55 °C measured medium temperature - 20 ~ +55 °C

Thread connection size of Diaphragm-seal sanitary pressure gauge

1) M20 * 1.5 (G3 / 8 "G1 / 2")

2 ) According to user needs

Normal operating conditions of Diaphragm-seal sanitary pressure gauge

( 1 ) Temperature : Ambient temperature - 20 ~ +55 °C measured medium temperature -20 ~ +55 °C;

( 2 ) Working pressure: Static Load : The scale value of 3/ 4 ;

( 3 ) alternating load : The scale value 2/3 ;

( 4 ) short-term pressure : The scale value ;
