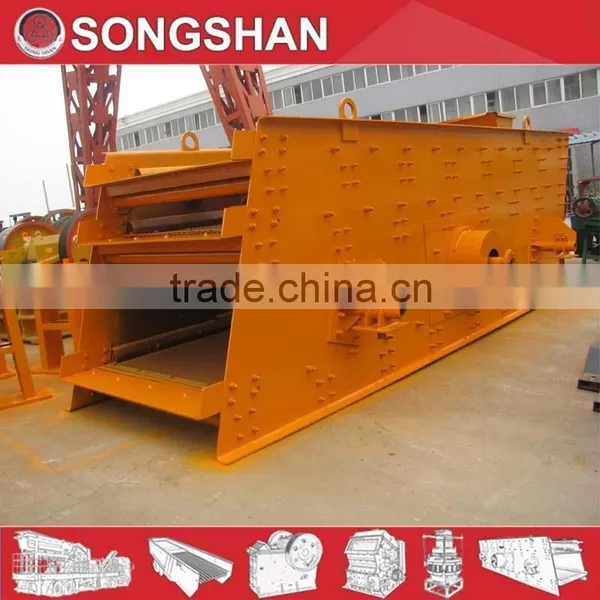

Big capacity vibrating sieve vibrating screen
1. Description of big capacity vibrating sieve vibrating screen
The circular vibrating screen has the advantages of even and reliable operation, low energy consumption, low
noise, long life,even vibration and high efficiency of sieving. Being high efficient sieving euipment, vibrating screen is widely used in mining,coal, metallurgy, building materials, refractory materials, light industry and the chemistry
industry.
2. Main features of big capacity vibrating sieve vibrating screen
The circular vibrating screen has the characteristics of reliable structure, strong exciting force, high sieving
efficiency, low noise, firmness, durability, easy maintenance and safety operation.
3. Working principles of big capacity vibrating sieve vibrating screen
The vibrating exciter is installed in the side plate of sieving box. Together with motor, the exciter rotates through
coupling or belt, which produces centrifugal inertia force. The sieving screen is the main easy-wear part. The
perforated sieving plate and rubber sieving plate can be knitted by austenitic manganese steel, according to
different raw materials and customers requirements. The sieving plate has the types of single layer and
double-layers. The sieve obliquity can be adjusted by the height of the supporting seat of spring.
4. Main technical parameter of other types of vibrating screen
Model |
Sieve Area (m2) |
Charge Granularity (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Motor Power (kw) |
Weight (kg) |
YK1236 |
4.3 |
≤200 |
240 |
8 |
7.5 |
3210 |
3YK1536 |
5.4 |
≤200 |
300 |
8 |
7.5 |
3630 |
2YK1542 |
6.3 |
≤200 |
360 |
8 |
11 |
4600 |
YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
4780 |
3YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
6600 |
YK2148 |
10 |
≤300 |
590 |
8 |
15 |
7150 |
2YK2148 |
10 |
≤300 |
590 |
8 |
15 |
8360 |
YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
8030 |
2YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10120 |
3YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10800 |
YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
8980 |
2YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
10700 |
YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
8800 |
2YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
12870 |
3YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
15600 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect after sales service, our products have won trust and good comments from our customers and taken the lead in the machinery fields.
Please don’t hesitate to inform us:
1.What is your purpose of buying vibrating screen? Is it used in sandstone production line or ore beneficiation?
2.How many layers do you want? And what is the feeding size of material?
3.What's the screening capacity do you want? How many tons or cubic meters per hour?
4.Is your demand only Vibrating Screen equipment or the Whole Production Line?
5.Others?
