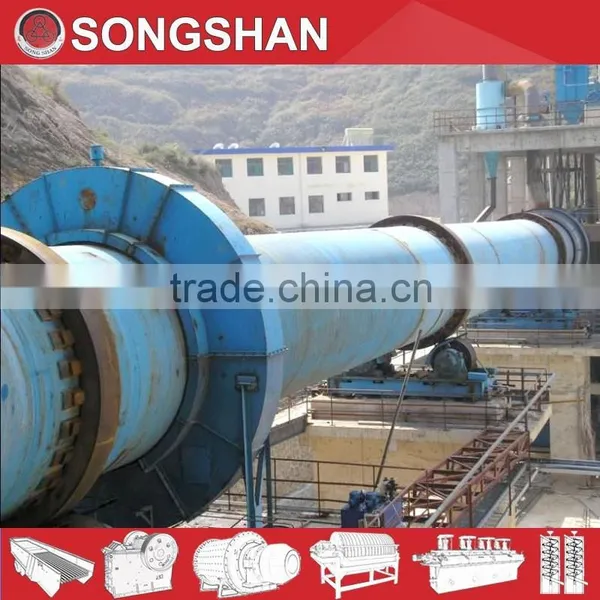

Small rotary kiln lime rotary kiln
1. Description of small rotary kiln lime rotary kiln
The small rotary kiln produced by Songshan Machinery has advanced structure.It can effectively
improve preheating effect with its low resistance vertical preheater.After the limestone is preheated,
the feeding decomposition rate can reach 20%-25%, thus can directly make use of 10-15mm fine
fraction limestone.
The reliable airtight two-ends combination squama make the air leakage factor under 10%. The
usage of compound refractory reduces radiation loss.
2. Structures of small rotary kiln lime rotary kiln
The small rotary kiln mainly consists of kiln body, loading device, burning device,unloading device,
electronic appliance, dust collector, etc. Different lime kilns have different structures.Their process flow
are almost same.But the equipment value has big distinction, of course the results are different.
3. Features of small rotary kiln lime rotary kiln
1.High productivity
2.Low heat consumption
3.Stable clinker quality
4.High ecomomic efficiency
4.Types of small rotary kiln lime rotary kiln
1.Cement kiln,
2.Metallurgy chemical kiln
3. Lime kiln
4.Building material kiln
5.Calcined petroleum coke rotary kiln
5.Technical parameters of small rotary kiln lime rotary kiln
Model |
Diameter (m) |
Length (m) |
Slope (%) |
Capacity (t/h) |
Speed (r/min) |
Motor Power (kw) |
Weight (T) |
Note |
φ1.4×33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
----
|
φ1.6×36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
----
|
φ1.8×45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
----
|
φ1.9×39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
----
|
φ2.0×40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
----
|
φ2.2×45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
----
|
φ2.5×40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
----
|
φ2.5×50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
55 |
187.37 |
----
|
φ2.5×54 |
2.5 |
54 |
3.5 |
6.9-8.5 |
0.48-1.45 |
55 |
196.29 |
----
|
φ2.7×42 |
2.7 |
42 |
3.5 |
10.0-11.0 |
0.10-1.52 |
55 |
198.5 |
----
|
φ2.8×44 |
2.8 |
44 |
3.5 |
12.5-13.5 |
0.437-2.18 |
55 |
201.58 |
Decomposition Outside kiln |
φ3.0×45 |
3 |
45 |
3.5 |
12.8-14.5 |
0.5-2.47 |
75 |
210.94 |
----
|
φ3.0×48 |
3 |
48 |
3.5 |
25.6-29.3 |
0.6-3.48 |
100 |
237 |
Decomposition Outside kiln |
zφ3.0×60 |
3 |
60 |
3.5 |
12.3-14.1 |
0.3-2 |
100 |
310 |
----
|
φ3.2×50 |
3.2 |
50 |
4 |
40.5-42 |
0.6-3 |
125 |
278 |
Decomposition Outside kiln |
Customer's operation sites
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction
Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such
as Jaw Crushers, Impact Crushers,Mobile Crushers, Cone Crushers,Double Roller Crushers,
Raymond Mills, Ultrafine Mills,Ball Mills, Flotation Separators, Magnetic Separators, Rotary Kilns,Rotary Dryers, Shaking Tables and Sand Making Machines.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect
after sales service, our products have won trust and good comments from our customers and taken the
lead in the machinery fields.
