Cement Rotary Kiln From China Professional Kilns Supplier
cement rotary kiln
I cement rotary kiln
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical
kiln and lime kiln according to different materials.
II cement rotary kiln
III. cement rotary kiln Technical parameter
| Specificttions(mm) | Kiln demensions | Output(t/h) | Rotation speed(r/min) | Moto power(kw) | Weight | Note | ||
| Diameter(mm) | Length(mm) | Obliq-uity(%) | (t) | |||||
| Ø1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ---- |
| Ø1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ---- |
| Ø1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ---- |
| Ø1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ---- |
| Ø2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ---- |
| Ø2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ---- |
| Ø2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ---- |
| Ø2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- |
| Ø2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- |
| Ø2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- |
| Ø2.8*44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Suspension preheating kiln |
| Ø3.0*45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | ---- |
| Ø3.0*48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Ø3.0*60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | ---- |
| Ø3.2*50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
IV. cement rotary kiln manufacturer
Please don’t hesitate to inform us:
1.What’s kind of your raw material?
2. What’s the capacity ? (T/H)
3. Others?

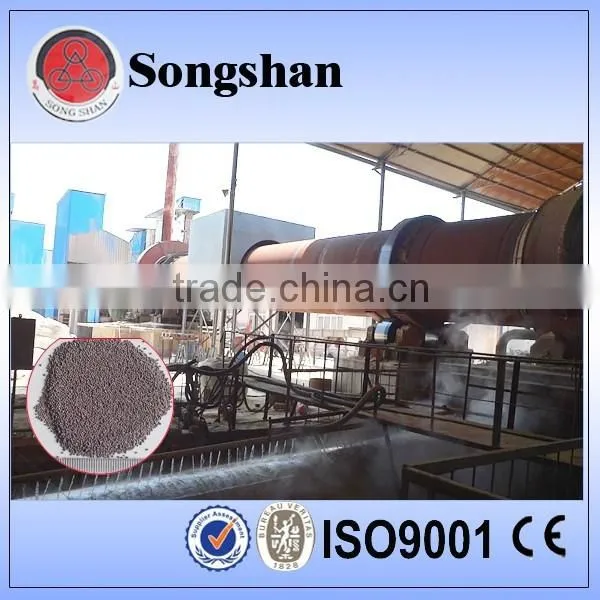

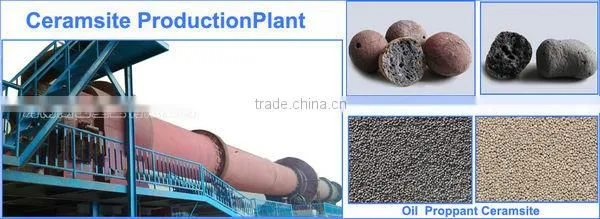

Rotary kiln for ceramsite production line
I.rotary kiln packaging : export standard or as requested.
II.rotary kiln shipping: as customer's request
Before sales service:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians
for customer.
Sales service:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service:
Send technicians to installation site for the guidance, equipment adjustment and training.
