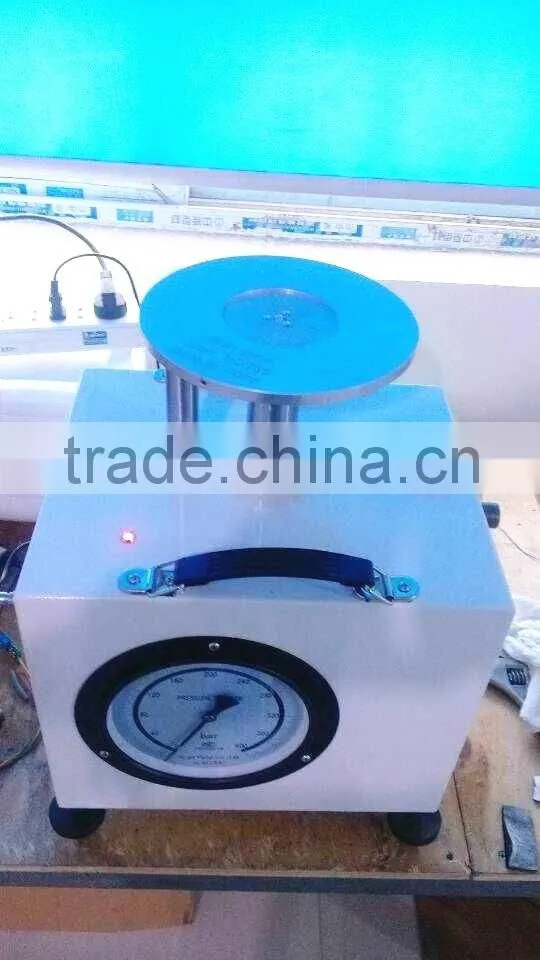

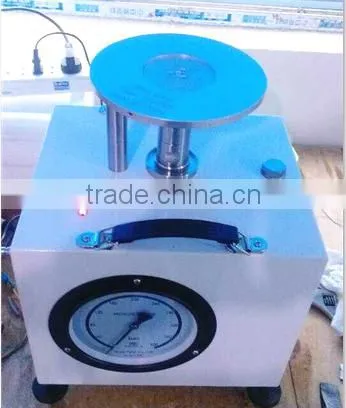

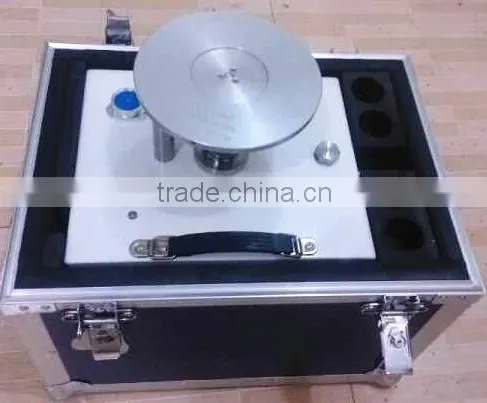

Oil of pipeline pipe hydraulic pressure test equipment pressure tester
Outline:
In the pipeline pressure test, the pipeline welding is completed to conduct stress tests, stress tests primarily to pressure capacity and the existence of micro-leakage test tube, and the pressure balance of uncertainty and sensitivity and precision are currently unable to replace all instruments and so the pressure balance is one of the indispensable test piping pressure instrument
Basic parameters:
Pressure Range: (5 ~ 250) bar (10 ~ 500) bar or customize other ranges
Uncertainty: 0.05 0.02 0.01
The minimum leakage detection value: 0.005MPa (0.05 Kg)
Current output: 4 to 20 mA (HART) Accuracy 0.05 (485 output optional)
Auxiliary pressure indicator: gauge
Auxiliary displacement indications: color indication system
Threaded connection: M20 * 1.5 thread
Weights:
Number | range | Accuracy | Cross-sectional area | Weights number | weights weigh |
551-1 | 5~250bar | 0.05% 0.02%
| 0.1 Square cm | 0.1bar weight 10P 1bar weight 9 P 5bar weight 3 P 10bar weight 2 P 25bar weight 8 P | 1bar weght about 0.1KG Specific weight Weight calculation derived according to the local gravity calculation Weights total 25KG |
551-2 | 10-600bar 5-600bar | 0.05 Square cm | 50bar weight 11 P 10bar weight 3 P 1bar weight 9 P 0.1bar weight 10P | 1bar weght about Specific weight Weight calculation derived according to the local gravity calculation Weights total | |
551-3 | 10~250bar | 0.05 Square cm | 0.1bar weight10 P 1bar weight 9 P 5bar weight 2 P 10bar weight 2 P 25bar weight 8 P | 1bar weght about Specific weight Weight calculation derived according to the local gravity calculation Weights total |

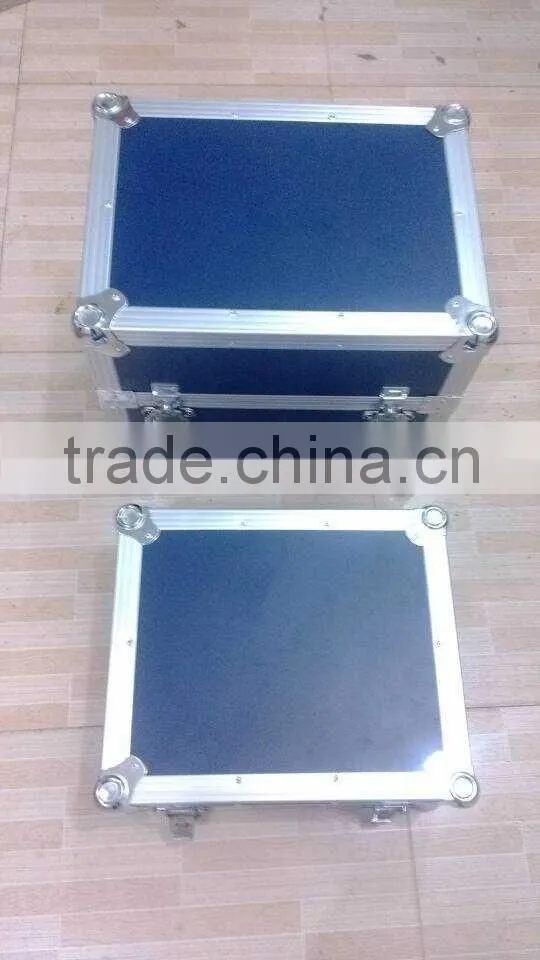

Package: standard export packing , including instructions and certificate
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter,pressure gauges,pressure calibrator and deadweight tester.And we also develop flow meter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other field...
If you are interested in this buy direct from china manufacturer oil of pipeline pipe hydraulic pressure test equipment pressure tester ,or want to know more details about it ,just feel free contact Katerina
