2014 New product Piston dead weight tester for industrial usepressure dead weight test
professional manufacyurer

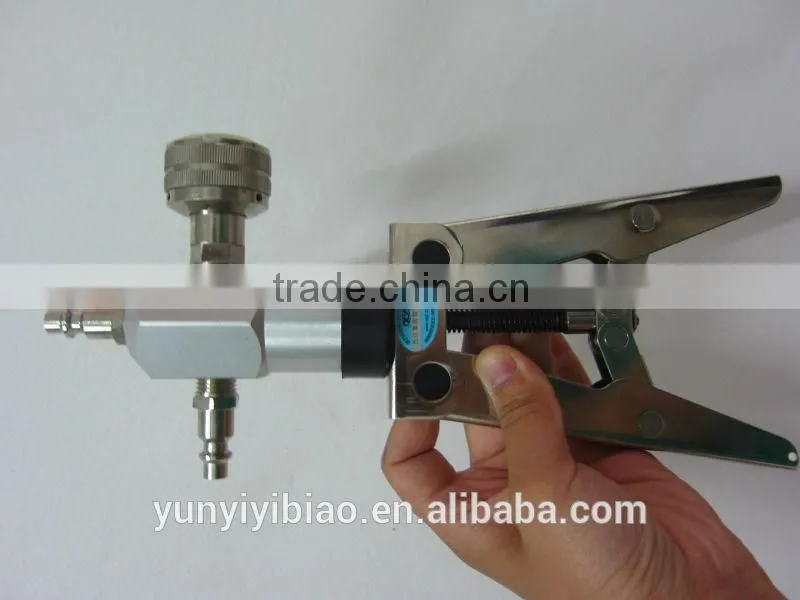

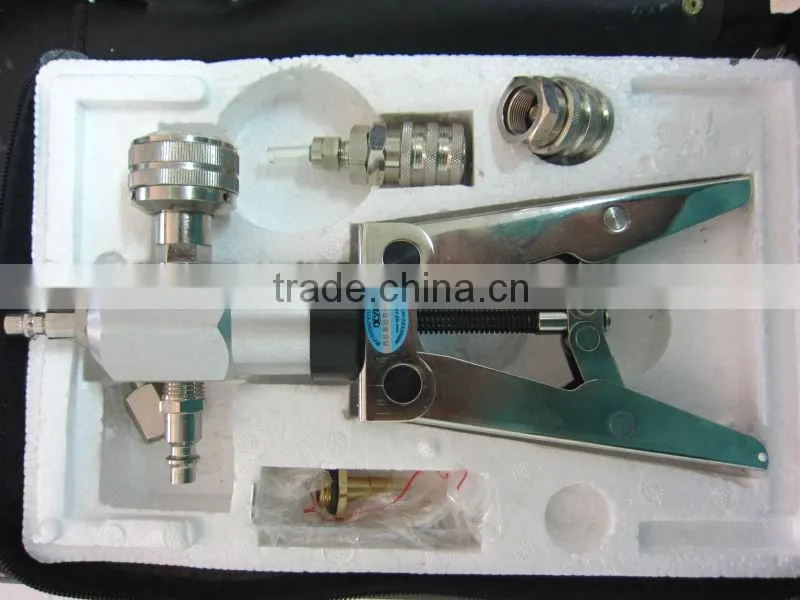

2014 New product Piston dead weight tester for industrial use
Description of 2014 New product Piston dead weight tester for industrial use:
2014 New product Piston dead weight tester for industrial use is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. 2014 New product Piston dead weight tester for industrial use usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator. Sometimes, we use it on some other gauges to calibrate the data.
Function of 2014 New product Piston dead weight tester for industrial use:
Made of alloy steel and tungsten carbide which are hightensile, high hardness and low temperature, assures the effective rate of the cycle.
The position of sensor used to work shifts, agility, striking and accurate.
Parameters of 2014 New product Piston dead weight tester for industrial use:
Modal |
YS-6A |
YS-60A |
YS-600A |
Measurement |
0.04~0.6MPa |
0.1~6MPa |
1~60MPa |
Accuracy |
0.02 (±0.02%);0.05 (±0.05%) |
||
Function |
Range piston gauge, Checked Digital piston gauge, precision pressure gauge, pressure transmitter. |
||
Kolbenwerkstoff |
Piston Rod:tungsten carbide, Piston Barrel:tungsten carbide |
||
Counterweight Material |
stainless steel 0.02Deg,Carbon steel 0.05Deg |
||
Working medium |
Below 25 mpa for transmitter oil or a combination of transformer oil and kerosene oil, more than 25 mpa for sebacic acid ester |
||
