Specifications
Pressure gauge calibrator ( economic type, low-cost )professional manufacturer
quick shipment

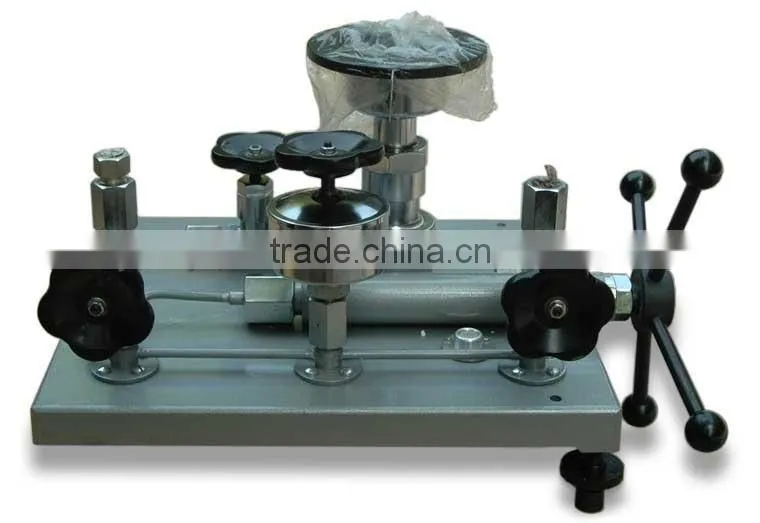

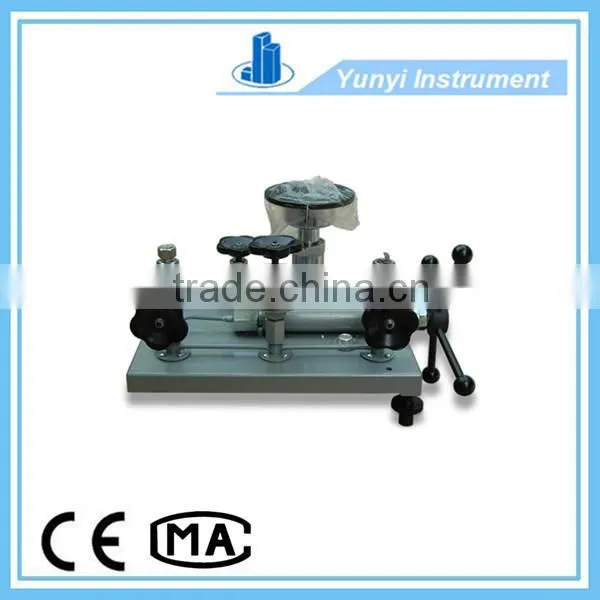

Pressure gauge calibrator
Description of Pressure gauge calibrator ;
YS-600 simply piston gauges is a calibration standard which uses a piston cylinder on which a load is placed to make an equilibrium with an applied pressure underneath the piston. Deadweight testers are so called primary standards which means that the pressure measured by a deadweight tester is defined through other quantities; Length, mass and time. Typically deadweight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.
Purpose:
YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.015% or 0.020% of reading.
YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.015% or 0.020% of reading.
YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.015% or 0.020% of reading
Specifications:
Model |
YS-6 |
YS-60 |
YS-250 |
YS-600 |
|||||
Measure Range |
bar |
0.4-6 |
1-60 |
5-250 |
10-600 |
||||
Accuracy |
% |
0.02 or 0.05 |
|||||||
Nominal Area of Piston |
cm2 |
1 |
0.5 |
0.2 |
0.1 |
||||
Carrier and Piston |
Nominal Mass |
kg |
0.4 |
0.5 |
1 |
1 |
|||
Produced Pressure |
bar |
0.4 |
1 |
5 |
10 |
||||
Supplied Weights |
Nominal Mass |
kg |
0.10.5 |
0.52.5 |
15 |
15 |
|||
Produced Pressure |
bar |
0.10.5 |
15 |
525 |
1050 |
||||
Quantity Block |
pcs |
610 |
411 |
49 |
411 |
||||
Pressure Connection |
M 20×1.5 |
||||||||
Working Medium |
Transformer Oil (viscosity 9~12 centistokes at 20i), |
||||||||
Dimensions |
mm |
630×382×593 |
|||||||
Weight |
kg |
20+5.6 |
26+29.5 |
26+49 |
26+59 |
||||
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
