Specifications

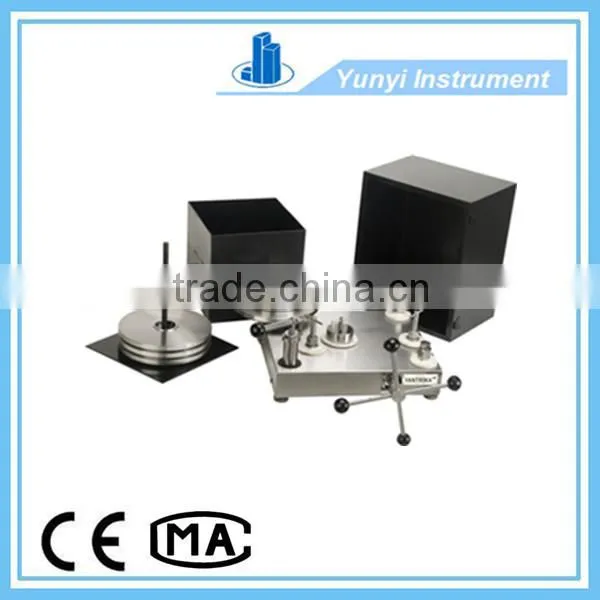

Hydraulic Operated DWTUsing high quality imported stainless steel
Hydraulic Operated DWT
Applications:
Measurement of pressure, calibration of pressure transmitter, pressure gauges and pressure switches
Standard Features:
Accuracy : 0.015% of reading
Over All Range: 0-1600 bar
Operating Fluid:
Hydraulic Oil & Water ( Depends on model Chosen )
Standard Accessories
1/8", 1/4", 3/8", 1/2" BSP Adaptors
Instruction Manual, Spare Seals,Dust Cover
Set of Weights in Carry Box, Tool Bag
Hydraulic Fluid (½ Liter) & Seal Kit
Traceable Calibration Certificate
Optional Accessories
1/8", 1/4", 3/8", 1/2" NPT Adaptors
Pointer Puller, Pointer Punch
Carrying box for tester
Operating Principle:
Fluid Pressure generated by a screw pump acts on the bottom of a vertically free floating piston. The force produced pushes the loaded free piston vertically upwards. The piston floats freely in its cylinder and the pressure in the circuit will be determined by the weights loaded on the piston divided by the effective area of the piston with corrections for value of acceleration due to gravity, air buoyancy, surface tension and datum level difference.
Materials of Construction:
Piston: Tungsten Carbide/HCHC
Cylinder: Tungsten Carbide/HCHC
Internals: Austenitic 300 series Stainless steel
Mass Set: Austenitic 300 series Stainless steel
