Specifications
rotary drum dryer for coal:1.Large capacity
2.Simple structure
3.Strong reliability

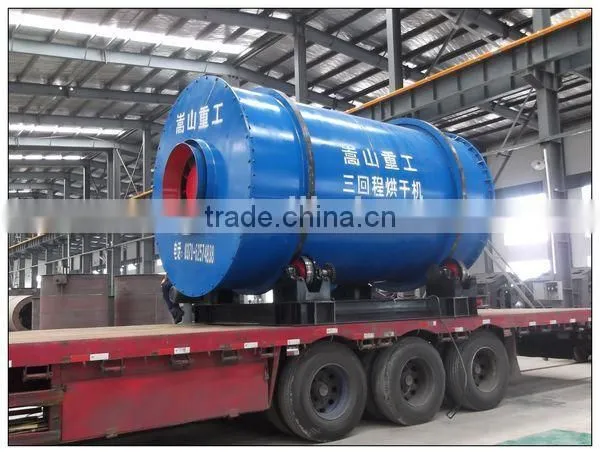

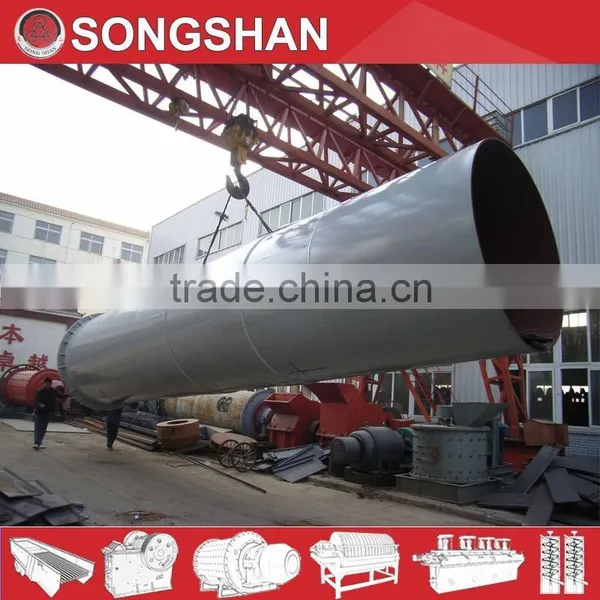

Rotary drum dryer for coal rotary dryer
1.Descipton of the rotary drum dryer for coal rotary dryer
Rotary dryer, which also known as rotary drum dryer is widely used in a variety of materials drying operations.
As reliable operation, convenient operation, strong adaptability, large capacity, Rotary dryer is widely used in
building materials,mineral dressing, metallurgy, chemical industry and cement industry, which is widely used to dry
the stuff such as limestone, coal powder, slag and clay. It can also be mixed with some materials by drying sticky
paste materials or materials with higher water content. Commonly used in dry sand, slag, coal, animal waste and so on.
2. Main structure of the rotary drum dryer for coal rotary dryer

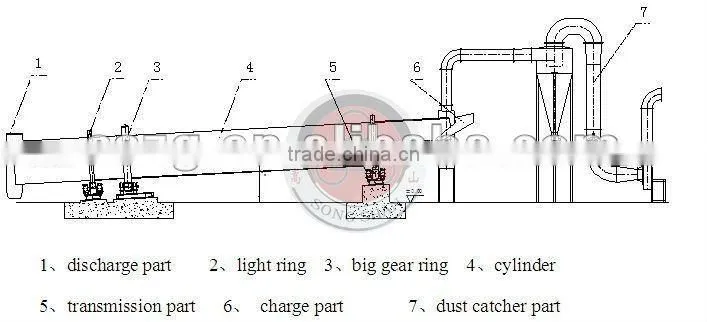

Rotary dryer mainly consists of revolving part, raising stuff plate, driving device, supporting device and seal ring.
3. Features of the rotary drum dryer for coal rotary dryer
1. The machine’s design is reasonable, have reliable performance, high efficiency, dry and heat uniform,
maintenance convenient.
2. Equipment adopts self-aligning type tug structure, the tug and with good tire- roller, greatly reduces the wear
and tear of power consumption.
3. Resistance to overload ability, cylinder smooth operation and high reliability.
4. Drying machine has the characteristics of high temperature resistant, high temperature hot air can be used for
a rapid drying of material.
5. Drum dryer processing capacity, fuel consumption, dry low cost less.
4. Operating principles of the rotary drum dryer for coal rotary dryer
The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials
into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
5. Main parameters of other types of the rotary drum dryer for coal rotary dryer
Model |
Size of cylinder |
Rotate Speed (r/min) |
Power (kw) |
Weight (kg) |
||
Diameter(mm) |
Length(mm) |
Slope(°) |
||||
HG1012.00 |
1000 |
12000 |
3-5 |
6.5 |
7.5 |
13236 |
HG1212.00 |
1200 |
12000 |
3-5 |
5.5 |
11 |
15756 |
HG1512.00 |
1500 |
12000 |
3-5 |
4.02 |
15 |
17430 |
HG1814.00 |
1800 |
14000 |
3-5 |
4.59 |
18.5 |
27263 |
HG2014.00 |
2000 |
14000 |
3-5 |
4.59 |
18.5 |
31688 |
HG2214.00 |
2200 |
14000 |
3-5 |
4.59 |
22 |
37431 |
HG2414.00 |
2400 |
14000 |
3-5 |
3.6 |
30 |
46197 |
HG2818.00 |
2800 |
18000 |
3-5 |
3.12 |
45 |
89332 |
HG3020.00 |
3000 |
20000 |
3-5 |
3.67 |
55 |
95505 |
HG3222.00 |
3200 |
22000 |
3-5 |
3.4 |
75 |
141627 |
HG3624.00 |
3600 |
24000 |
3-5 |
3.1 |
110 |
188627 |
JHG1214.00 |
1200 |
14000 |
3-5 |
5.99 |
11 |
17382 |
JHG1816.00 |
1800 |
16000 |
3-5 |
5.48 |
22 |
39587 |
JHG2016.00 |
2000 |
16000 |
3-5 |
4.59 |
30 |
61912 |
JHG2227.00 |
2200 |
27000 |
3-5 |
4.58 |
37 |
79263 |
JHG2418.00 |
2400 |
18000 |
3-5 |
3.12 |
37 |
66735 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by Construction Department has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect after sales service, our products have won trust and good comments from our customers and taken the lead in the machinery fields.
1.What's the kind of raw materials ?
2.What is the input moiture of raw materials?
3.What is the output moiture of materials?
4.What's the capacity ? (T/H)
5. Others?
