Specifications
Tire type mobile crusher plant high efficient and low cost project plan without environment limit for the clients.
Movable crusher , Tire type mobile crusher plant
I. Movable crusher , Tire type mobile crusher plant Description
Henan Songshan Movable crusher , Tire type mobile crusher plant is designed based on the conception of fully adapting various crushing condition,eliminating obstacles sedbylocation, environment, foundation configuration, consequently providing simple, efficient, low-cost mobile crushing equipment.
II. Movable crusher , Tire type mobile crusher plant Outstanding features :
1.Movable crusher , Tire type mobile crusher plant Built with high quality jaw crusher, cone crusher and impact crusher Feeder,screen and belt conveyor on board
2.Tractive steering shaft, convenient for road transportation
3.Integrated with landing gears, quick and convenient installation on site
4.Integrated motor and control panel.
5.Easy to transport.
6.Greatly reduce material transportation cost
7.Reliable performance and convenient maintenance
8.Customized pro
duction and flexible configuration
III. Movable crusher , Tire type mobile crusher plant Technical parameters
mobile crusher Model |
YG93E69 |
YG1142E710 |
YG1349E912 |
Transport length(mm) |
12500 |
14000 |
15500 |
Transport width(mm) |
2450 |
2450 |
3000 |
Transport Height(mm) |
4000 |
4800 |
4800 |
Max Length(mm) |
13200 |
15000 |
17000 |
Max Height(mm) |
4600 |
5800 |
5800 |
Max width(mm) |
3100 |
3300 |
3500 |
Belt conveyor Height(mm) |
2700 |
2700 |
3000 |
Tire configuration |
Dual Axis |
Three Axis |
Four Axis |
Total Weight(T) |
42 |
55 |
72 |
Model |
YG93E69 |
YG1142E710 |
YG1349E912 |
Feeder |
GZD-960*280 |
GZD-1100*4200 |
GZD-1300*4900 |
jaw crusher |
PE600*900 |
PE750*1060 |
PE900*1200 |
Belt conveyor |
B650*7M |
B800*9M |
B1000*11M |
Extended Belt Conveyor |
Optional |
Optional |
Optional |
Capacity |
90-180t/h |
110-320t/h |
220-450t/h |
Generator |
Optional |
Optional |
Optional |
Power |
91.5KW |
134KW |
146KW |
Movable crusher , Tire type mobile crusher plant services
1.Supply the project design.
2.Installation: The Seller will dispatch technicians to the Buyer’s site, if required by the Buyer, to instruct
the installation, and test run. All the expenses of technicians inside China will be responsible by the Seller.
All the expenses outside China, including round tickets, insurance, food and accommodation, etc.,will be
responsible by the Buyer.
3.Free training.

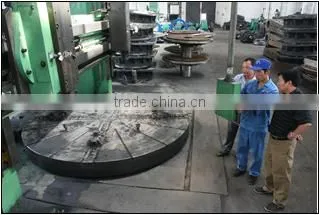

Movable crusher , Tire type mobile crusher plant manufacturer
| Company Profile | |
|
Henan Songshan Heavy Industry Co., Ltd., a state-designated manufacturer by National Construction Department, has a history of over 30 years in machine manufacturing. We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
|
|
| Certificate of honor | |||
| CE certificate |
|
ISO9001-2000 |
|
| BV certificate
|
|
China Top enterprises |
|
|
China credit example certificate |
|
||
Movable crusher , Tire type mobile crusher plant related products
our company also can manufacturing mobile jaw crusher, mobile impact crusher, mobile screen ,and rotary dryer, rotary kiln... etc.
