T1-FM-QF1B-002 Three 3 Way Ball Valve

T1-FM-QF1B-002 Three 3 Way Ball Valve thumbnail-1
T1-FM-QF1B-002 Three 3 Way Ball Valve photo-1
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Anti fly out valve rod structure., Anti fly out valve rod structure.
Power:
Other, According to the condition
Contact Supplier Request Quote Chat Now
Xi'an Yunyi Instrument Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other, Anti fly out valve rod structure., Anti fly out valve rod structure.
Power Other, According to the condition
Material Stainless Steel
Port Size According to the machine design
Place of Origin Shaanxi, China
Model Number T1-FM-QF1B-002
Brand Name YUNYI

Ball vale

Specification : T1-FM-QF1B-002

Product name: ball valve

Model description: 316 material series ball valve 3/8'' tube fittings 0.19’’ bore diameter.

Characteristic:

1. Max working pressure:  690 bar (10000 psig)

2. Working temperature range: -17°C to 232°C (0°F to 450°F)

3. Fixed ball can be two-way seal.

4. Trunnion ball:l to prevent the ball rushing out.

5. The valve seat pre-tightens and seal automatically.

6. Low operating torque.

7. Anti fly out valve rod structure.

8. Handle indicates flow direction.

9. Accurate positioning of the handle.

10.The colors of handle are available.

11.Pneumatic or electric actuator can be chosen.

12.Installed plate can be chosen.

13.Each valve makes the sealing test according to nitrogen with the max working  pressure, testing according to 6000psig when the max working pressure exceed 6000psig.

14.Structure is compact, max flow design.

15.3 way flow path.

16.Spring loaded valve seat: there is leakproof and complete valve seat abrasion caused by the changing of reducing the pressure in low and high pressure system.

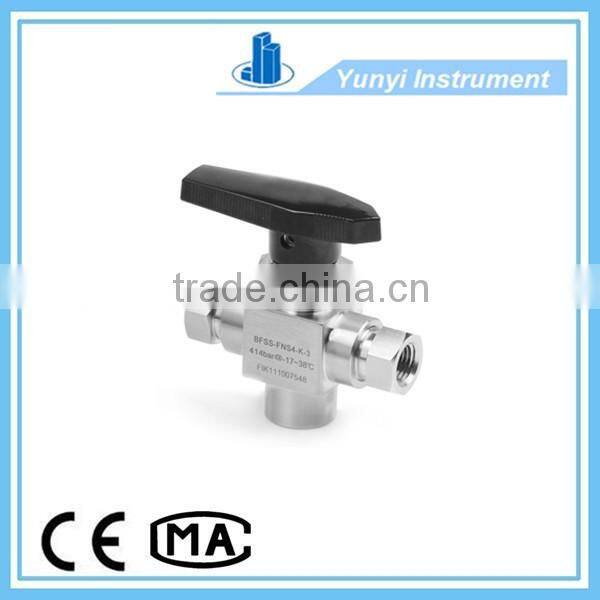

T1-FM-QF1B-002 three 3 way ball valve
