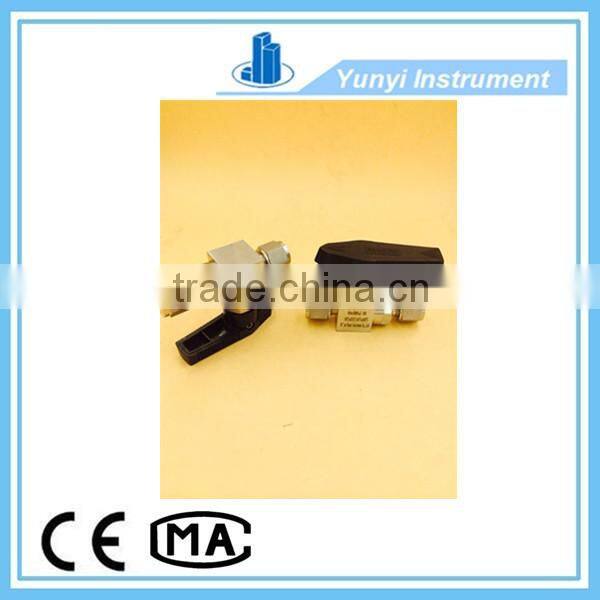

threaded ball valve/ball valve ss304
Specification: T1-FM-QF4A-001
Model description: 316 material series through type 1/16" tube fittings 0.05" bore diameter.
Characteristic:
1. Max working pressure:207 bar (3000 psig)
2.Working temperature range : -54°C to 148°C (-65°F to 300°F)
3.Connector:1/16'' to 3/4'' or 3 mm to 18 mm
4.Can supply power switch , switch and cross changing function of 2 through, 3 through,4 through,5 through , 6 through , 7 through valve.
5.One piece valve body and one piece ball type valve rod
6.Ball valve is with no dead zone.
7.Top entry design can make the system inspect and adjust securely on line.
8. Activity load design can improve the thermal cycle performance and can compensate the packing wear.
9.Can provide any reasonable interface forms.
10.Pneumatic or electric actuators are available for choose.
11.The colors of handle can be chosen.
12.Each port can undertake full operating pressure.
13.Each valve makes the sealing test according to nitrogen with the max working pressure.
