China Manufacturer Magnetic Float Level Sensor

China Manufacturer Magnetic Float Level Sensor thumbnail-1
China Manufacturer Magnetic Float Level Sensor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
LS
Contact Supplier Request Quote Chat Now
Xi'an Yunyi Instrument Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
All main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number LS

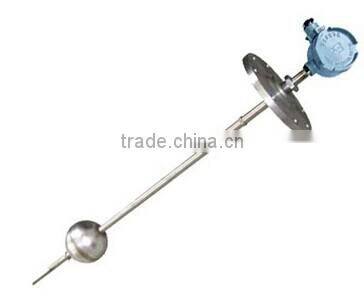

 china manufacturer magnetic float level sensor



Description:

It is the use of a ring magnet with a float with the level lift, so Reed resistor combination module of competence in turn pull, resistance value changes continuously, the special conversion module converts 4-20mA DC output can be directly controlled system connection, or with the company's portfolio of intelligent control instruments in order to achieve the level of on-site measurement alarm control.



Technical data:

1 measuring range: 300 ~ 6000mm Other measurements can be made
2 Resolution: ± 10mm (common), ± 20mm, ± 5mm
3 the working temperature: ≤150 ℃
4 working pressure: 1.6MPa, 2.5MPa, 4.0MPa
5 medium density: ≥0.5g / cm3
6 proof grade: EXDIIBT1 ~ 6 EXiaIICT1 ~ 6
7 Protection: IP65
8 the electrical interface: M20 * 1.5 (inside) (Other shall specify)
9 Flange Standard: HGT20592-2009 other please specify



Features

1 the working principle is simple, broad applicability, safe and convenient maintenance
2 to achieve the level of connection measurement is not affected by the physical and chemical properties of the measured medium. Such as: temperature, pressure, conductivity, dielectric constant, etc.
3 the use of different materials to achieve the measurement of highly corrosive media
4 can be used to measure two different density liquid interface.
5 good repeatability.



Select table
LS-
Type

Model Number
UB
 magnetic float level sensor
UBJ
 magnetic float level sensor

mesure range
XXX
Unit:mm

output
1
4~20Ma
2
4~20Ma+ status display
3
4~20Ma+HART
4
other

 Wetted material
A
304
B
316
C
PP
D
304liner PTFE

installation
A
top mouting
B
bottom mounting
C
other

flange DN
XXX


  medium density
XXX
Kg/m3
LS-             UB           100          1                A                A        DN25        900
TOTAL MODEL NUMBER




china manufacturer magnetic float level sensorchina manufacturer magnetic float level sensorchina manufacturer magnetic float level sensor


About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.



If you need this   china manufacturer magnetic float level sensor  , please visit the website
