Digital Sound Level Transducer

Name: Digital Sound Level Transducer
Brand: Yunyi
Availability: InStock

FOB Price

US$ 200 - 250 / Unit

1 Unit(Min. Order)

Port shenzhen beijing tianjin shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Yunyi
Model Number	UT2000

Packaging Details

ultrasonic digital level transducer
Corrugated cardboard boxes outer and foam paper inner packing size: 4x5x14cm

Product Description

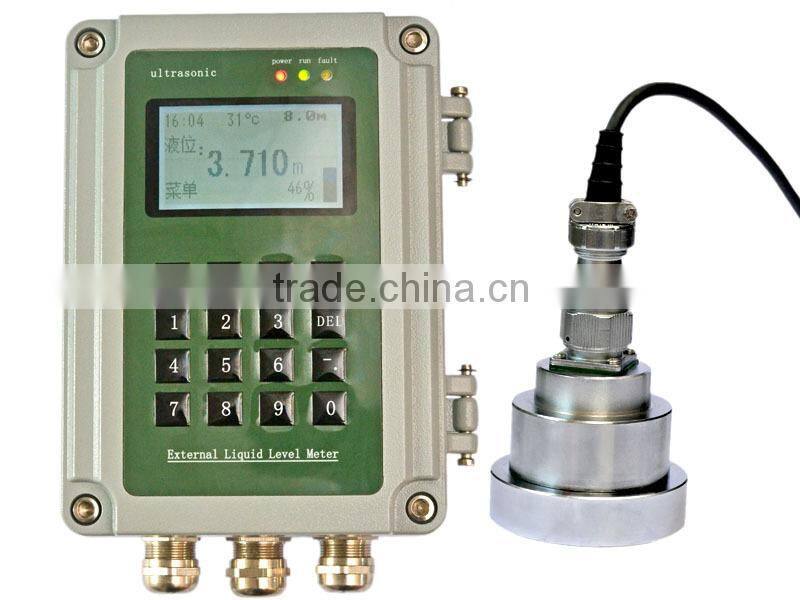

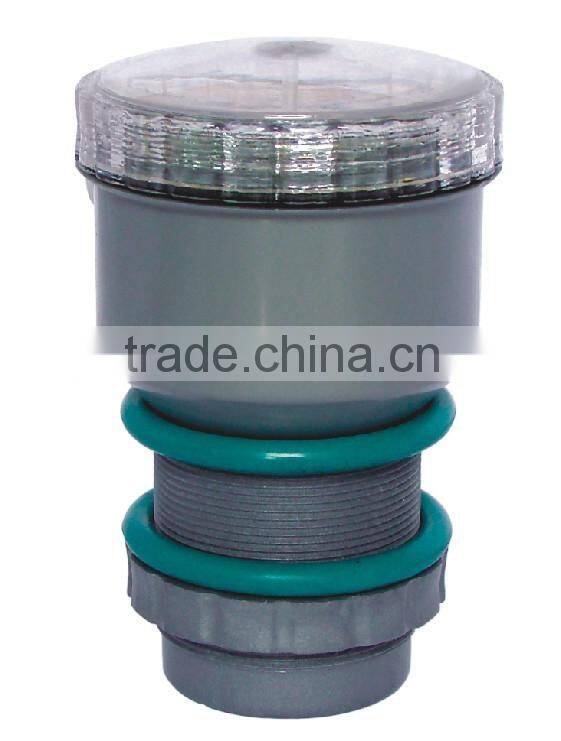

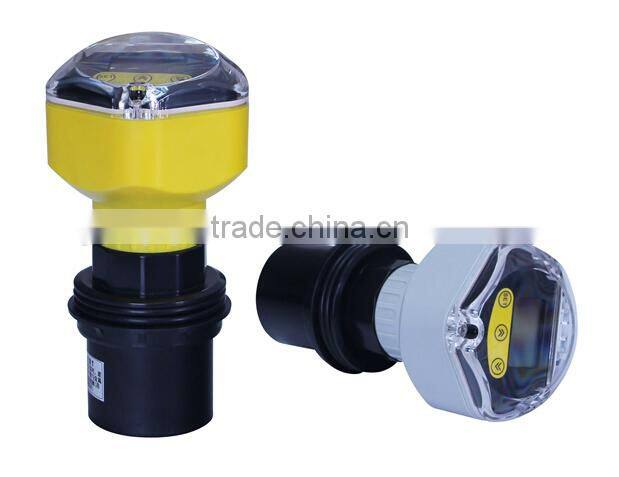

Digital sound level transducer

Features of digital sound level transducer :

1. Strong, stable sensor suitable for harsh industrial applications 2. Anti interference is strong, can set upper and lower alarm, and online output regulation

3. With built-in temperature sensor, can achieve real-time automatic temperature compensation.

4. Blind area can also be set manually, can shield the disturbance signal.

5. 4-20Ma current output.

Technical Parameter of digital sound level transducer :

Range	0-1, 3, 5, 7, 10, 20, max is 50m	Accuracy	0.25-0.5%
Voltage	24VDC	Resolution	1mm
Frequency	12kHz to 70kHz	Temp	-20 to 60 DegC
Output	4-20mA	Blind area	0.25m-0.8m
Protection	IP67	Emission angle	6 DegC to12 DegC

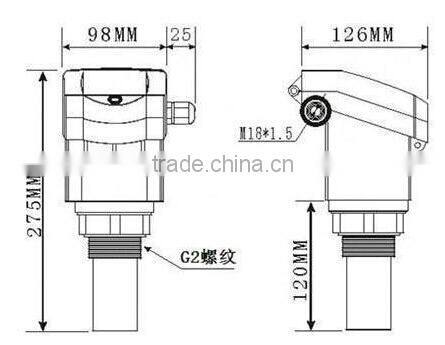

Installation size	Φ58mm/G2 thread	Case material	ABS or of Tetrafluoroethylene
Sensor material	ABS Engineering plastics	Keyboard	Three soft touch keys

Company Profile

Xi'an Yunyi Instrument Co., Ltd.

Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
