Home > Instruments & Meters > Meter for Liquid & Gas > Liquid Level Meter > Ultrasonic Distance Sensor

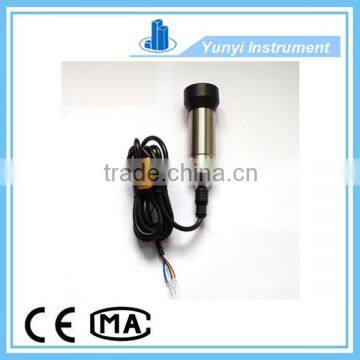

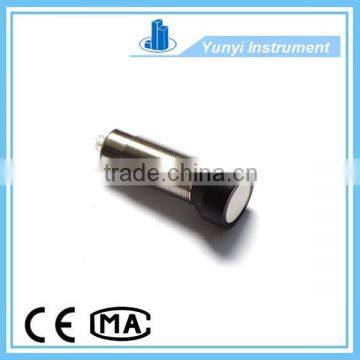

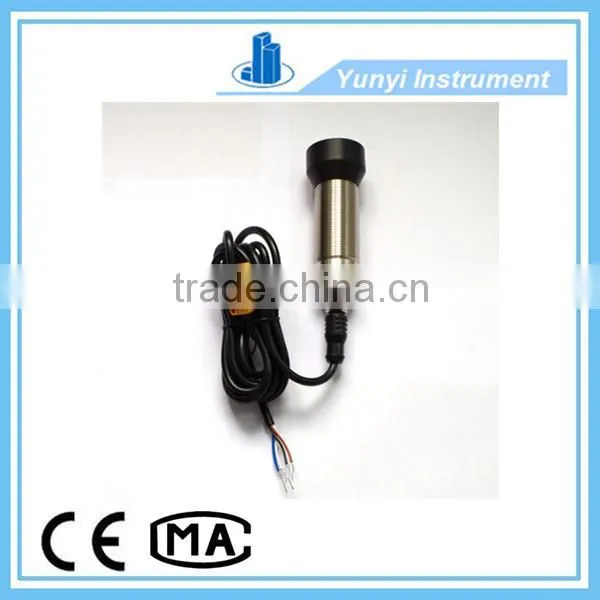

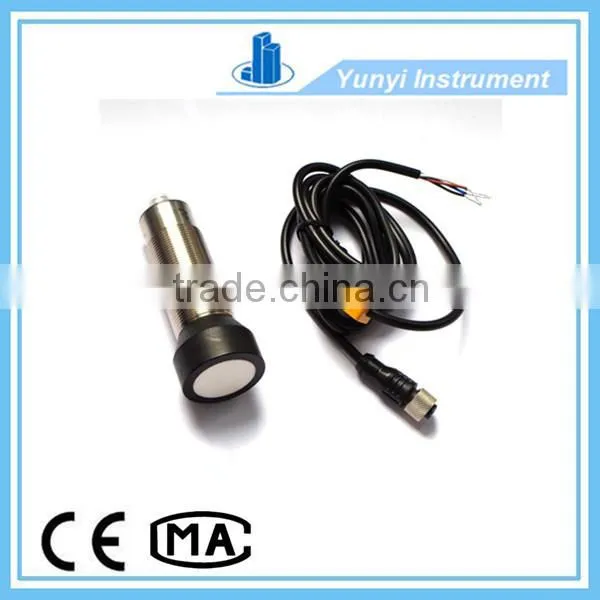

Ultrasonic Distance Sensor
US$ 170.00 - 170.00
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
RU30
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen shanghai beijing tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Level Instruments Ultrasonic Level SensorUS$ 163 - 3,000MOQ: 1 Piece -
China Ultrasonic Position SensorUS$ 163 - 3,000MOQ: 1 Piece
-
Ultrasonic Level SensorUS$ 163 - 3,000MOQ: 1 Piece
-
Anti-corrosive Ultrasonic Fuel Level Sensor PriceUS$ 100 - 500MOQ: 1 Unit
-
Ultrasonic Digital Level TransmitterUS$ 200 - 250MOQ: 1 Unit
Place of Origin
Shaanxi, China
Brand Name
Yunyi
Model Number
RU30

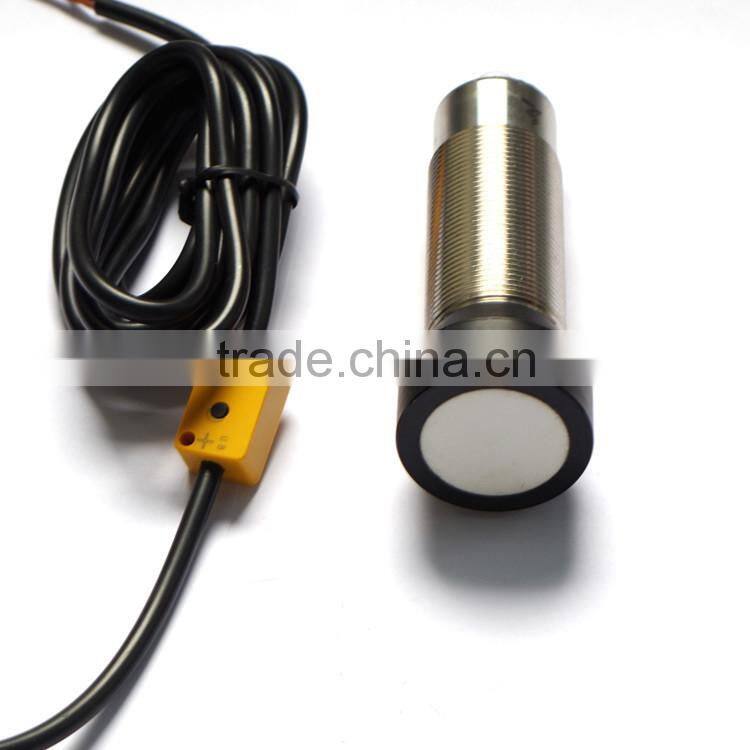

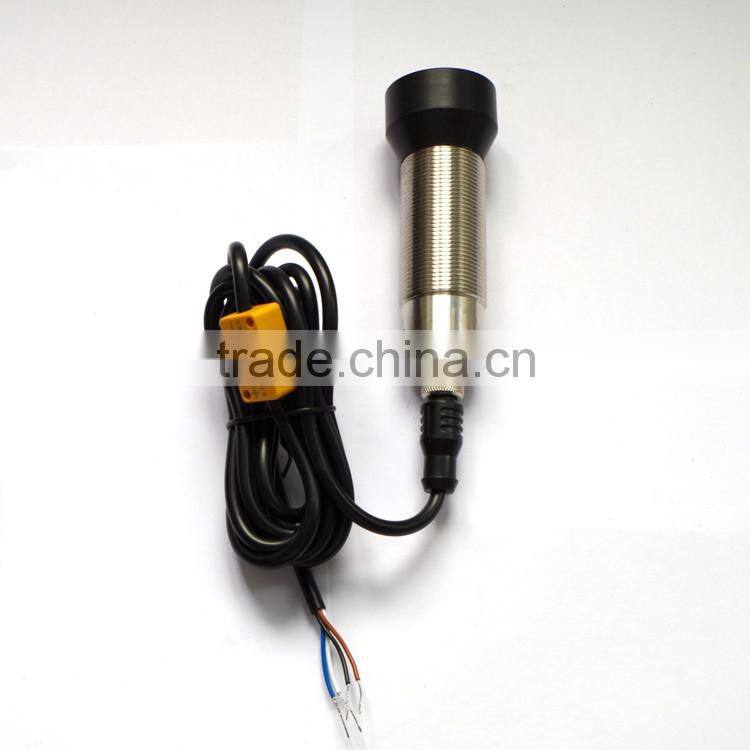

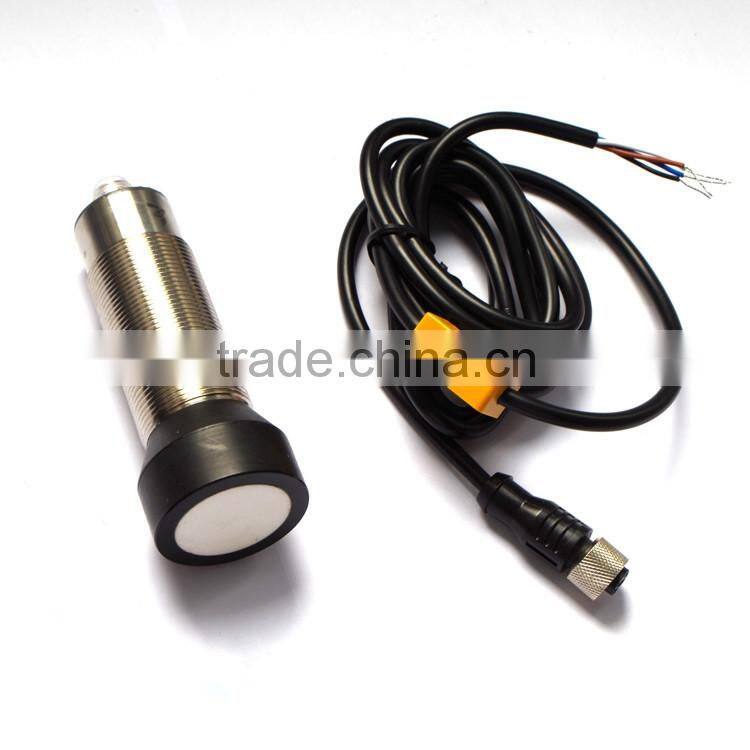

Ultrasonic distance sensor
Features of Ultrasonic distance sensor :
1 Programmable cable interface using the PC software for proximity switch parameter settings
2 Current and voltage outputs
3 Synchronization
4 You can adjust the sensitivity of the acoustic energy and
5 Temperature Compensation
Specification of Ultrasonic distance sensor :
| General Specifications | |
| Sensing distance | 80…2000mm |
| Adjustment range | 80…2000mm |
| Unusable area | 0…80mm |
| Standard target plate | 100mm×100mm |
| Transducer frequency | About 112 kHz |
| Response delay | About 195ms |
| Indicators/Operating means | |
| LED blue | Power on |
| LED yellow | indication of the switching state |
| Flashing:program function object detected | |
| LED red | permanently red: Error Red,flashing:program function,object not detected |
| Electrical specifications | |
| Operating voltage UB | 10…30VDC,ripple10%ss |
| No-load supply current | ≤50mA |
| Output | |
| Output type | 1 analogue output 0…10V |
| Resolution | 0.11mm at max.sensing range |
| Deviation of the characteristic curve | ±1% of full-scale value |
| Repeat accuracy | ±0.5% of full-scale value |
| Load impedance | >1k Ohm |
| Temperature influence | ±2% of full-scale value |
| Ambient conditions | |
| Ambient temperature | -25…70℃ |
| Storage temperature | -40…85℃ |
| Mechanical specifications | |
| Protection grade | IP67 |
| Connection | Connector M12x1,4-PIN |
| Material Housing | PBT |
| Transducer | epoxy resin/hollow glass sphere mixture; Polyurethane foam |
| Weight | 150g |

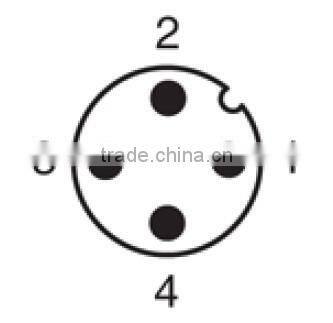

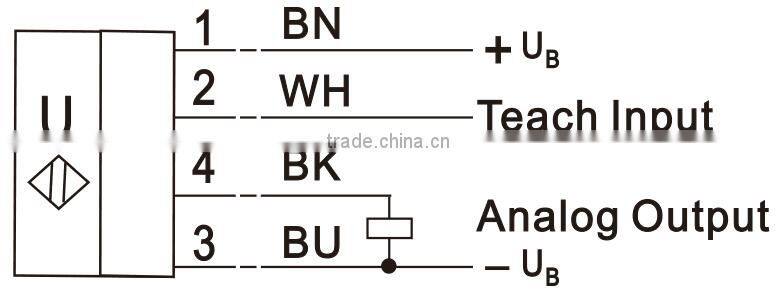

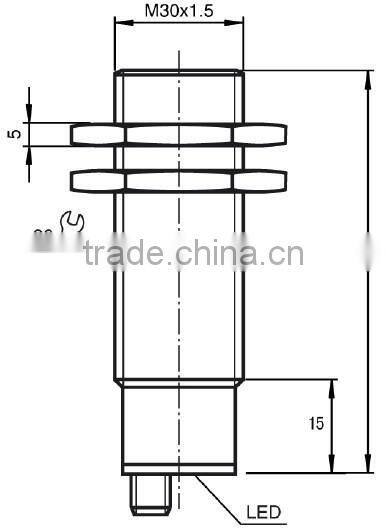

Dimension and Electrical Connection of Ultrasonic distance sensor :
1 BN=BROWN
2 WH=WHITE
3 BU=BLUE
4 BK=BLACK
Connector
