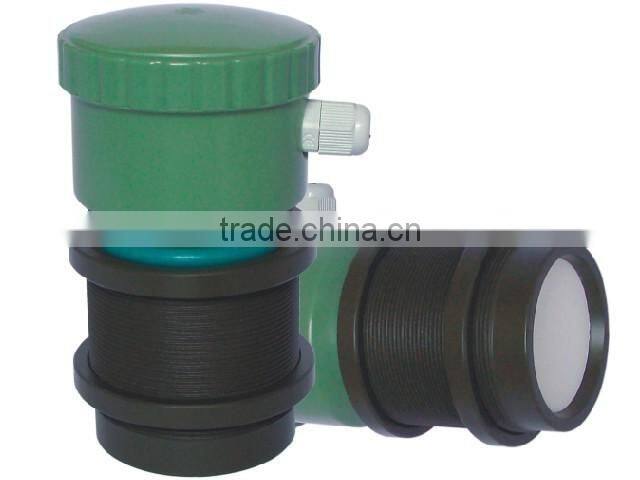

Anti-corrosive ultrasonic fuel level sensor price
Application of ultrasonic fuel level sensor price :
1. Pharmaceutical manufacturing industry: level control of reaction liquid in the pipeline tank
2. Petroleum and chemical industry: level control of petroleum pipeline / liquid in tank
3. Food industry: Wine, beverage, milk production, storage tank/pipeline liquid level detection and monitoring
Specification of ultrasonic fuel level sensor price :
Measure Range: 0~5M, 0~8M, 0-10M
Blind Area: <0.3M, <0.5M
Emission angle: 12°
Resolution: 1MM
Accuracy: ±0.3%FS
Temperature compensation: automatic temperature compensation
Display: 4 digits (can choose LCD)
Working Frequency: 20 KHz~43.0KHz
Field Setting: Completed by the machine keys
Calibration: Factory calibration, can be field calibration
Analog output signal: 0~20mA; 4~20mA Load<300Ω; 0~5V; 0~10V
Data Output; RS485 (Support Modbus)
Switch output: Max 3 group
Power supply: DC12V-30V
Power consumption: <1.5W

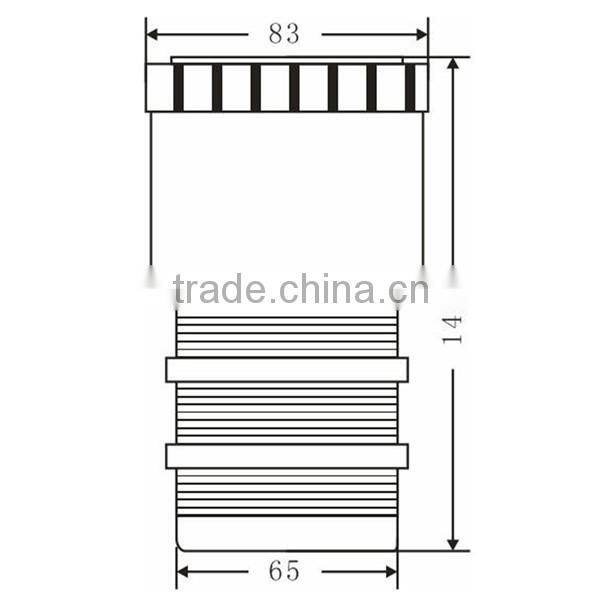

Dimension: Φ75×145×M65
Case Material: ABSengineering plastic; energy converter:PP
Weight: 272g(5-8m), 410g(10m)
Connection mode: Threaded or spiral ring fixed
Mounted: External pipe thread M65x1.5 or M48×1.5
Keyboard: Three SMD A.B.C button
Input cable: 1.5M (can customized)
Seal grade: IP65
Temperature: -10℃~60℃
Pressure: Atmospheric pressure
