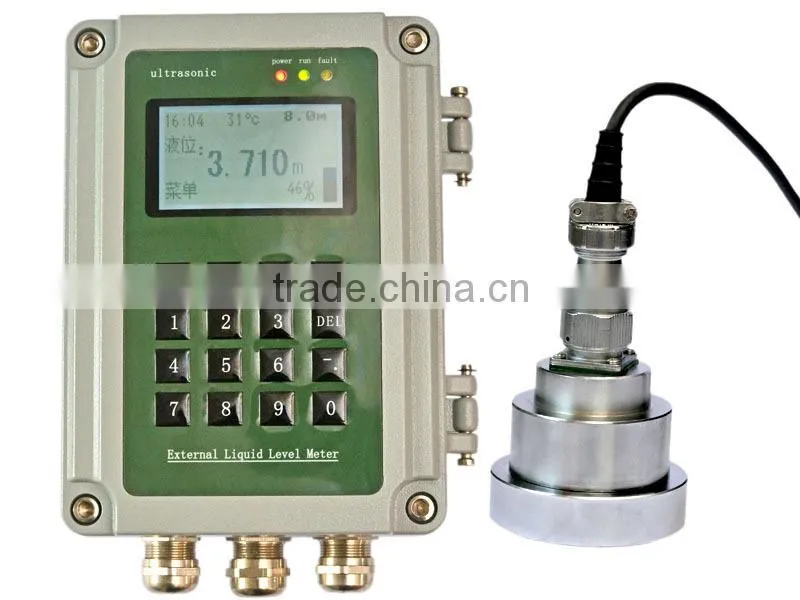

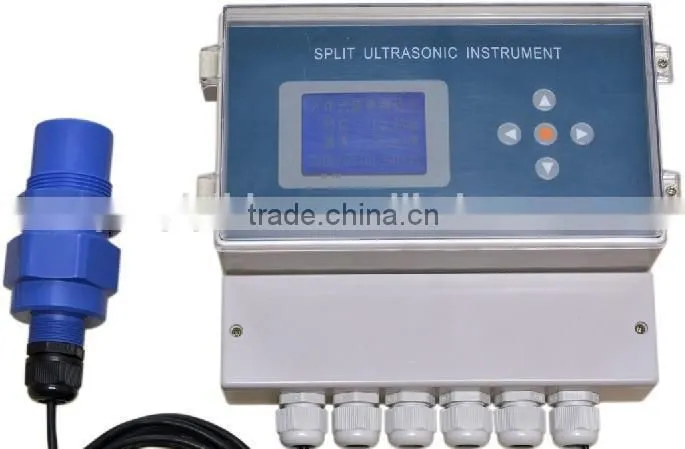

ultrasonic sensor for distance measurement
Application of ultrasonic sensor for distance measurement :
1. Pharmaceutical manufacturing industry: level control of reaction liquid in the pipeline tank
2. Petroleum and chemical industry: level control of petroleum pipeline / liquid in tank
3. Food industry: Wine, beverage, milk production, storage tank/pipeline liquid level detection and monitoring
Technical Parameter of ultrasonic sensor for distance measurement :
Measure range: 0~5 M, 0~8 M
Blind Area: <0.3 M
Emission angle: 12°
Accuracy: ±0.3%FS
Resolution: 1MM
Temperature compensation: automatic temperature compensation
Working frequancy: 20 KHz~200KHz
Output: 4~20mA;RS232;RS485;
Power supply: AC220V or DC24V
Dimension: 240×184×110mm
Case material: ABS
Mounted size:M48×1.5, M65×1.5, M30×1.5
Cable: Shielded cable 10M (can customized)
