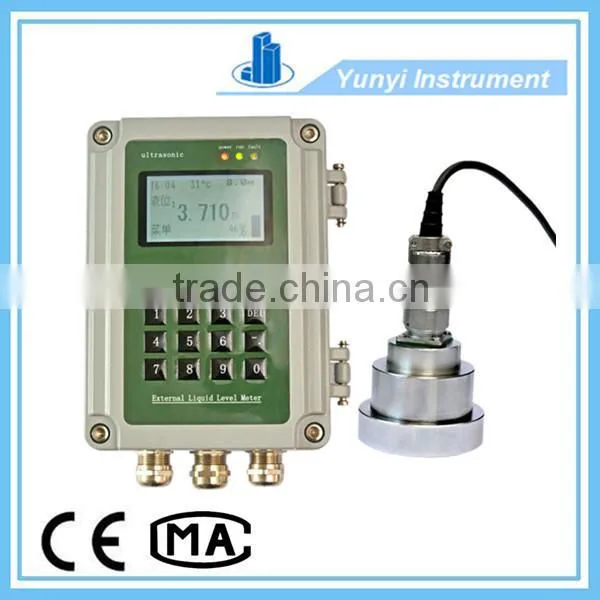

Level measurement ultrasonic fuel sensor
Application of ultrasonic fuel sensor :
1. Pharmaceutical manufacturing industry: level control of reaction liquid in the pipeline tank
2. Petroleum and chemical industry: level control of petroleum pipeline / liquid in tank
3. Food industry: Wine, beverage, milk production, storage tank/pipeline liquid level detection and monitoring
Technical Index of ultrasonic fuel sensor :
Measure range: 3M, 5M, 8M, 10M, 15M, 20M, 25M, 30M
Accuracy: 0.1% (Too thick tank wall, and instability pressure and temperature may affect the accuracy)
Display: LED (optional LCD)
Resolution: 1MM
Output(optional): 4~20mA, RS485
Power supply: DC 12-24V or AC220V
Characteristics of ultrasonic fuel sensor :
Case material: Cast aluminium
Seal grade: IP65 Probe: IP68
Mounted type: Magnetic direct adsorption or adhesive transfer sheet (ferromagnetic), then magnetic adsorption
Cable: Standar 10M (can customized)
Dimension: 135X180X86mm
Electrical connection: M20X1.5
Threading hole diameter: 15MM
Power line cable: 1.5M(can customized)
Pressure cable: 5M
Using condition of ultrasonic fuel sensor :
Host use environment temperature: -20℃~+70℃
Ultrasonic probe use environment temperature: -20℃~+100℃
Humidity: 15%~100% RH
