Three-cylinder Dryer for Stoving Slag, Yellow Sand, Clay, Fly Ash

Three-cylinder Dryer for Stoving Slag, Yellow Sand, Clay, Fly Ash photo-1
US$ 1,000 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Drum Drying Equipment
Place of Origin Henan, China
Brand Name Zhongde
Model Number 2.0*4.4
Voltage 220v
Power(W) 16000
Dimension(L*W*H) 2.0*4.4 (m)
Weight -
Certification ISO,CE, TUV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. The cylinder protect itself, thermal efficiency can up to 95%.
2. The whole length of the dryer reduced to 50% approximately



Product Description

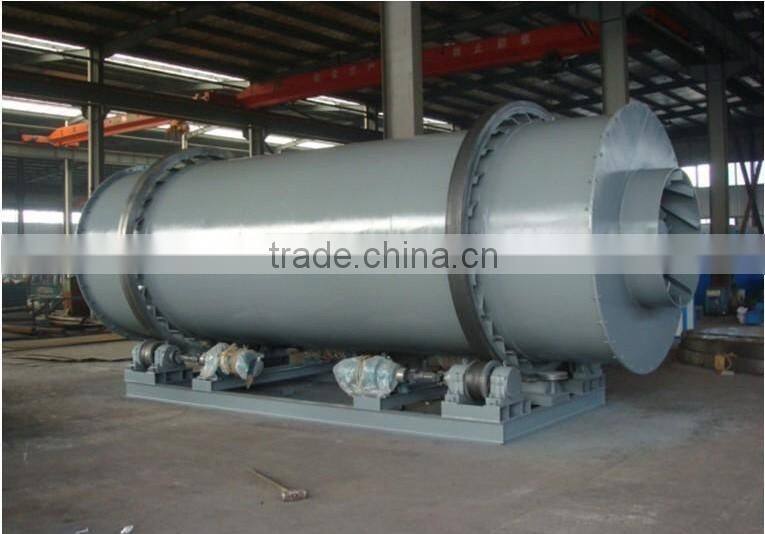

Introduction of Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash

Three-cylinder dryer is mainly applied for stoving slag, sand, coal, fly ash, iron powder, ore, quartz sand and other particle materials. It has the following characteristics:

1. The cylinder protect itself, thermal efficiency can up to 95%.

2. The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately

3. Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance.

4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150℃)

5. Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.

6. Without gear and pinion drive, but wheel rotation applied, level operation of the complete machine makes system simple and reasonable.

7. Air heater could match boiling furnace, or oil furnace can also be applied, which can dry materials with size below 20mm.

8. Final moisture index can be adjusted according to requirements of customers.

  Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash

Technical Parameters of Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash

Specification (Dia.×Length)

Capacity                  (t/h)

Unit coal consume (Kg/t)

Main motor  (KW)

Slag

Clay

Fly ash

Yellow sand

Φ2.0×4.4

10~15

7~10

5~7

15~25

12~14

16

Φ2.5×5.0

15~25

10~15

9~11

25~35

10~12

22

Φ3.0×6.0

30~35

16~20

13~20

45~55

8~10

30

Φ3.2×6.4

40~45

23~25

22~25

60~70

8~10

44

Φ3.4×7.6

45~55

25~35

25~35

85~90

7~9

60

Φ3.5×8.0

50~60

28~45

28~45

90~100

7~9

60







Packaging & Shipping



1. Packaging Details: The package of Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash includes export standard container 20GP OR 40GP, 40HQ, FR container, in bulk, the spare parts in wooden case.
2. Delivery Detail:Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash is in 30 working days after receiving payment

 Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash





Our Services



1>.Pre-sale services: enthusiasm


We provide you with the prophase plan, process flow design and manufacturer equipment



according to your special demand.


2>.Sale services: servant


Send technicians to the jobsite for guiding the installation and adjustment, training operators and



finishing the check and accept together with you.


3>.After-sale services: faithfulness


To establish long term friendship, we will regularly pay return visit to customers.


Supplying technique, building design, instruction, installation and debugging for free.


4>.We provide one-year warranty to make sure your machine runs consistently.


We always offering lifelong services and provide spare parts for a long term,and repair main parts



under right using for free in two years.





Company Information

  Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past fifty years, it has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.

 Three-cylinder dryer for stoving slag, yellow sand, clay, fly ash
