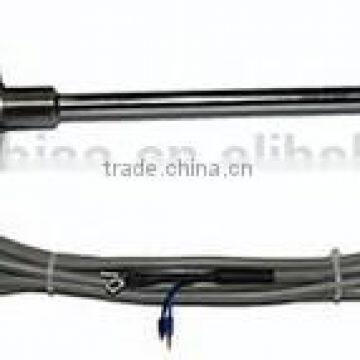

magnetostrictive level sensor transducer

magnetostrictive level sensor transducer Standard packing(or according to the customer request)

Specifications

magnetostrictive level sensor transducer
1 professional manufacturer
2 quick shipment
3CE certification

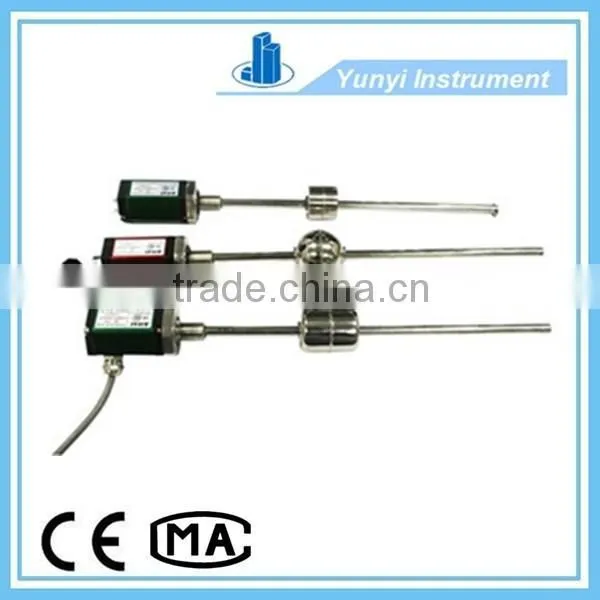

Magnetostrictive level sensor transducer



Description :

MTL float magnetostrictive liquid level sensor, also known as the float level gauge, float type level gauge, is an oil level, water level measurement sensors. Its effective stroke of 80mm ~ 3000mm, 30mm shock stroke lower end, the upper buffer stroke according to customer needs. There are voltage, current, RS485 output. Built-in import wire waveguide as a measurement unit, the DSP digital signal processing, high precision, drift-free, non-contact, long life of twenty years; spindle temperature 300C °, pressure resistance, corrosion resistance, float pressure 1.5MPa.



Specification :

1, the effective stroke size (mm): 80 ~ 3000mm;
2, the mechanical stroke (mm): effective stroke + customer needs;
3, the output type: 0 ~ 5V DC, 0 ~ 10V DC, 4 ~ 20mA DC, RS485;
4, outlet type: direct outlet, five core plug, explosion-proof outlet;
5, linear accuracy: ≤0.05% FS;
6. Repeatability: ≤0.0005% FS;
7. Hysteresis: ≤0.001% FS;
8. Resolution: ≤0.001% FS;
9, protection class: IP67, IP68 (optional);
10, operating voltage: + 15VDC ~ 24VDC;
11, current: voltage, digital output type ≤16mA, current output type ≤35mA;
12, temperature range: -20 ~ 125 ℃;
13. Vibration test: 3g, 25Hz GB / T2423.10 continuous impact test: 10g, 100Hz GB / T2423.5;
14. Insulation resistance: Insulation resistance ≥10MΩ sensor power supply terminal and the ground terminal between; symbol GB / T15479-1995;
15, working pressure: continuous working pressure 35Mpa









About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.



If you need this   magnetostrictive level sensor transducer , please visit the website
