YK series mining machinary sand vibrating screen machine with ISO, BV, CE,TUV approved
- 200 Set / Sets per Month
- tianjin qingdao port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | ZHONGDE | Model Number: | 3YK1237 |
Voltage: | 380V | Power(W): | 7500 | Dimension(L*W*H): | 4270*1860*1210mm |
Weight: | - | Certification: | ISO,BV,CE,TUV certificate | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
YK series vibrating screen1.Moves on a circular motion
2.Widely used in mine, construction,etc
3.Durability & low noise
Introduction of vibrating screen
The YK series of vibrating screen moves on a circular motion. It is a multi-layer and high efficient vibrating screen.
Advantages of vibrating screen
Stable structure, strong exciting force, high efficiency, low noise pollution, easy to maintain and durability.
Circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Characteristics of vibrating screen
1) stable structure and strong exciting force
2) high efficiency and little noise pollution
3) handy maintenance and durability
4) Materials blocked in meshes can be automatically out;
5) Simple structure and easy to disassemble and replace;
6) Less electricity power consumption
Technical parameters of vibrating screen
Model | Sieve layer | Sieve area(m2) | Mesh size(mm) | Max. feeding size(mm) | Processing capacity(m3/h) | Vibrating power(r/min) | Double amplitude(mm) | Motor power(kw) | Sieve obliquity(°) | Sieve specification(mm) | Dimensions(l*w*h)(mm) |
2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 2930*1860*870 |
2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200*3000 | 3430*1860*870 |
2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4050*1860*870 |
3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4270*1860*1210 |
2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 4120*2210*1230 |
3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 4360*2210*1610 |
2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 5120*2210*1230 |
4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500*4500 | 5930*2210*2060 |
3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500*4800 | 5660*2210*1610 |
4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500*4800 | 6230*2210*2060 |
2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800*4800 | 5420*2550*1420 |
4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800*4800 | 6290*2550*2160 |
3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800*5400 | 6260*2550*1780 |
4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800*5400 | 6830*2550*2160 |
2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*6000 | 6720*2840*1530 |
4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100*6000 | 7300*2840*2380 |
2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400*6000 | 7020*3140*1530 |
3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400*6000 | 7300*3140*1910 |
4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400*6000 |

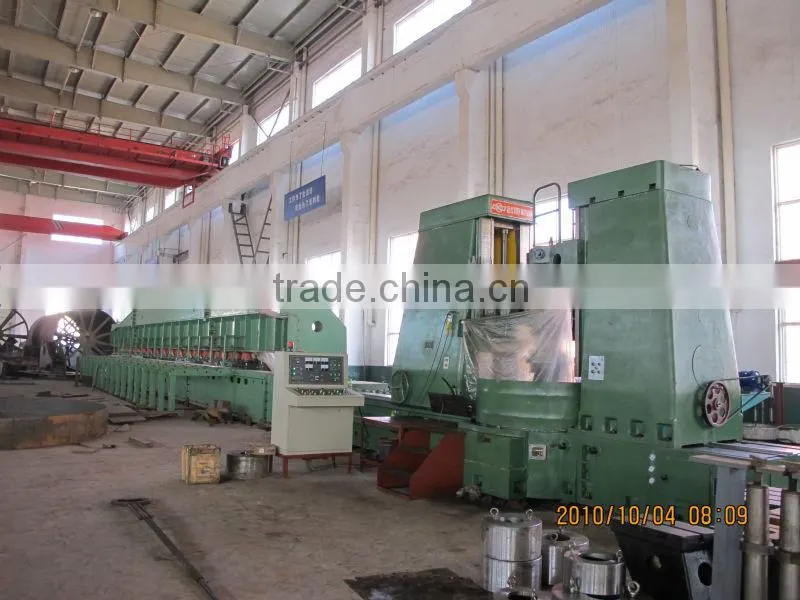

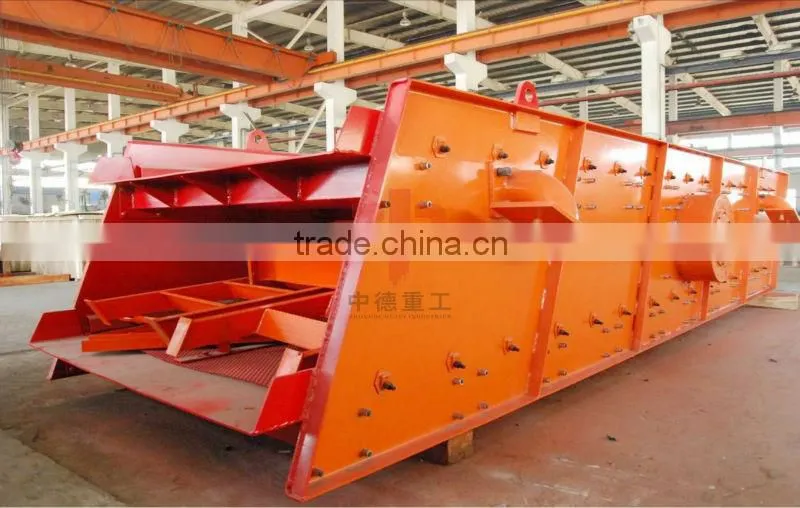

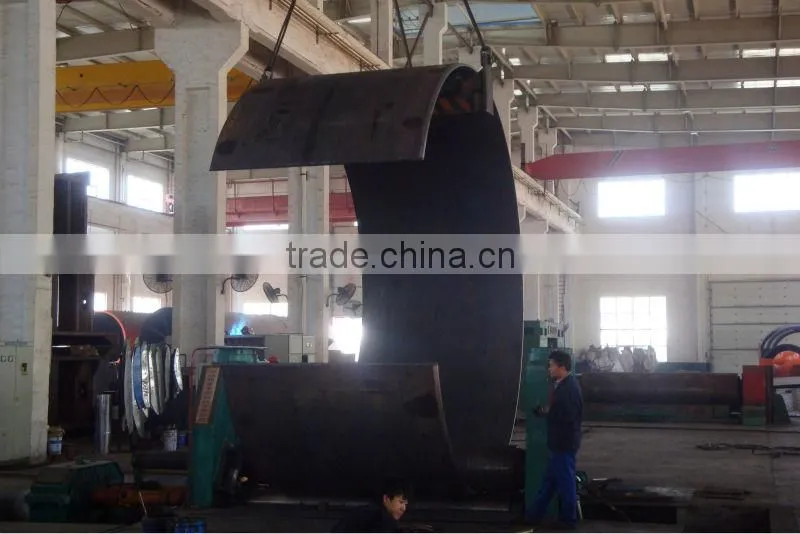

Pictures of vibrating screen
Our services about vibrating screen
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year
Company Introduction
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past fifty years, it has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
Superiority of Zhongde
- World's leading service capability
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
