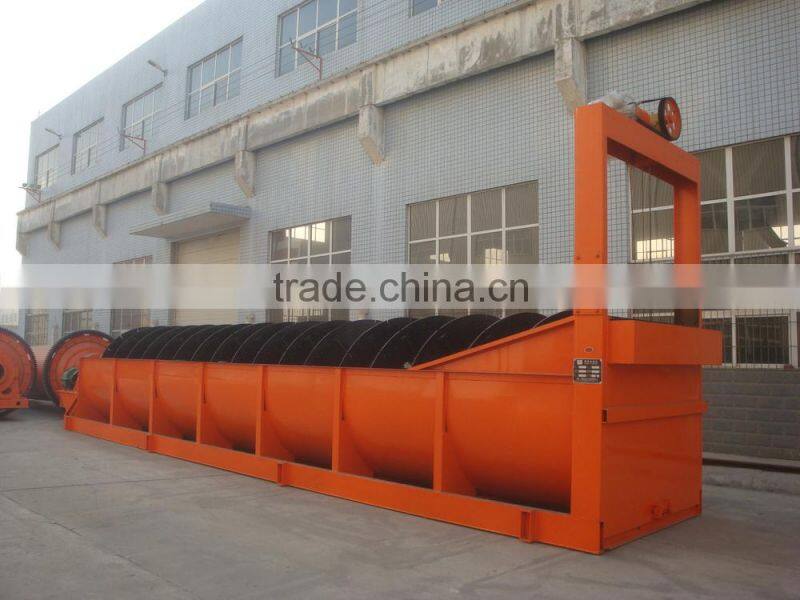

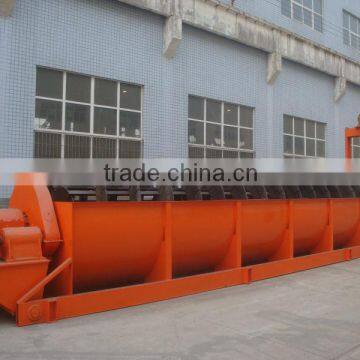

Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Spiral Classifier With Outstanding Performnace
US$ 1,011 - 9,903
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
135-210(t/d)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mining Spiral Classifier With Fine PerformanceUS$ 1,246 - 8,704MOQ: 1 Set -
High Quality Spiral ClassifierUS$ 1,001 - 9,916MOQ: 1 Set
-
Splendid Quality Mining Spiral ClassifierUS$ 1,002 - 9,995MOQ: 1 Set
-
Mining Spiral Classifier Machine With Competitive PriceUS$ 1,008 - 9,996MOQ: 1 Set
-
2016 Spiral Classifier Machine for Washing Ores With MudUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Gravity Separator
Production Capacity
135-210(t/d)
Place of Origin
Henan, China
Brand Name
Zhongde
Model Number
FG-5
Power(W)
1.1kw
Dimension(L*W*H)
5430*680*1480(mm)
Weight
-
Certification
CE, TUV, ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Spiral classifiers
Zhongde spiral classifiers are designed to provide the most effective pool area and overflow velocity requirements. By combining the proper submergence of the spiral with one of the tank designs a choice of 63 combinations is possible in Straight, Modified or Full flare tank designs. The proper combination of pool depth, area and spiral construction is important to secure a controlled turbulence in the slurry flow for accurate size separation.
Spiral Classifiers are suitable for:
- Separation of fine particles and liquid from coarse particles
- Separation of light particles from heavy particles
- Separation of the particles into a number of products graded according to size
- Separation of liquid from solid particles
Main benefits of Spiral classifiers:
- Energy saving
- Heavy duty, rugged construction
- Powerful self-contained spiral lifting device
- Continuous spiral raking
- Optimal particle size range 800 to 75 microns
Main features of Spiral Classifiers: ![]()
- Adjustable weirs
- Sealed, submerged bearing
- Optional automatic lubrication system
- Rigid tank and substructure
- Wide choice of tank design
- Overflow collection box
- Wide range of industries serviced
- Single spiral range from 300 mm to 2 200 mm
- Duplex spiral models 1 500 mm and 2 200 mm

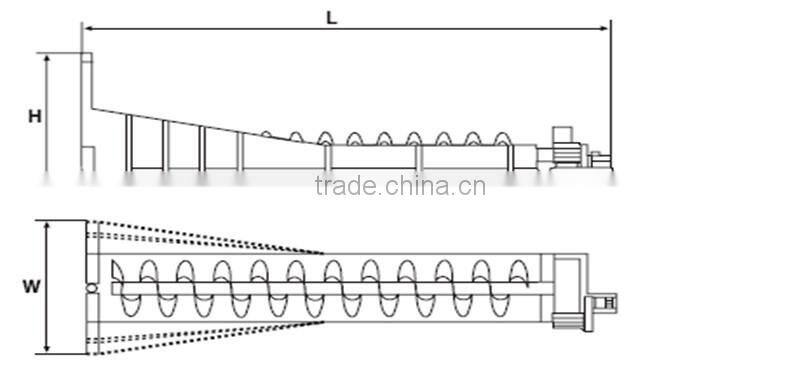

Spiral Classifier Simplex

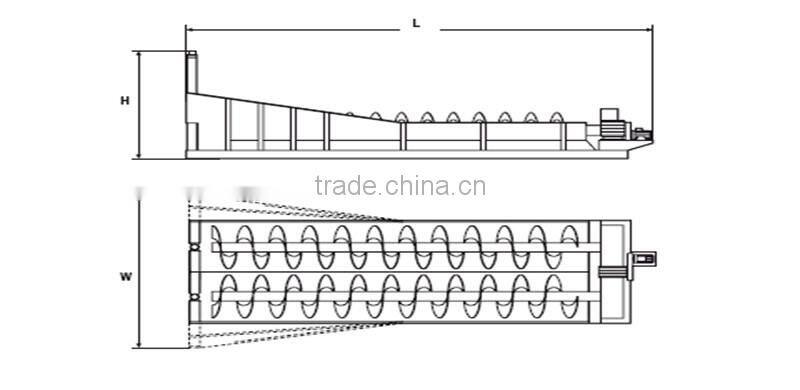

Spiral Classifier Duplex
