Specifications
underwater ultrasonic sensor1 professional manufacturer
2 quick shipment
3 CEcertification

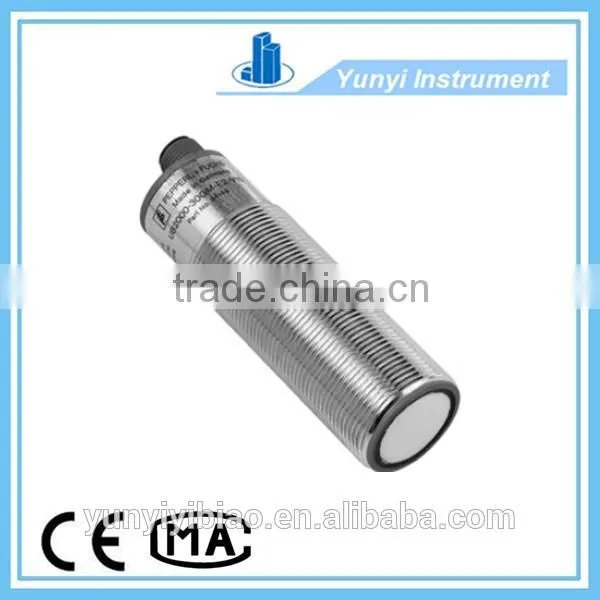

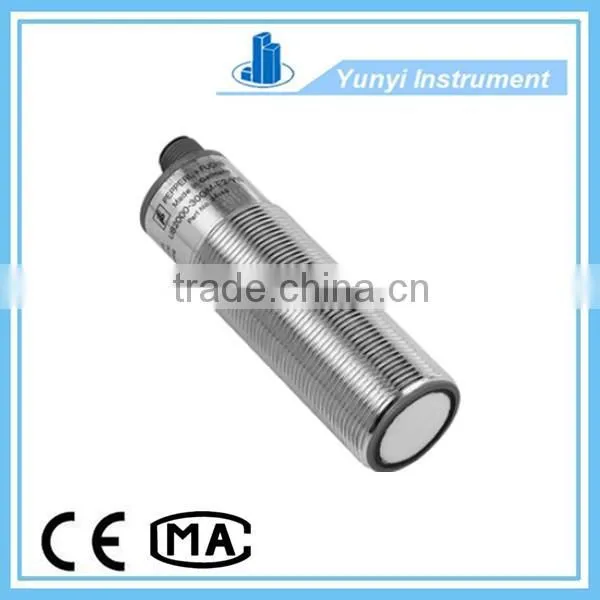

underwater ultrasonic sensor
Features:
1 Programmable cable interface using the PC software for proximity switch parameter settings
2 Current and voltage outputs
3 Synchronization
4 You can adjust the sensitivity of the acoustic energy and
5 Temperature Compensation
| general characteristic | ||
| Sensing range | 80 ... 2000 mm | |
| adjustment range | 120 ... 2000 mm | |
| blind | 0 ... 80 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 180 kHz | |
| latency |
Min 65ms factory seting 195ms |
|
| Temperature/TEACH-IN connector | Temperature compensation , Evaluation range programming , output function setting | |
| electrical specification | ||
| working voltage | 10 ... 30 V DC , ripple 10 %SS | |
| Power Consumption | ≤ 900 mW | |
| connector | ||
| Type | RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit | |
| input | ||
| synchronization |
two-way 0-level -UB...+1 V 1-level: +4 V...+UB input impedance : > 12 KOhm synchronization pulse : ≥ 100 µs, clock cycle : ≥ 2 ms |
|
| synchronizing frequency | ||
| Normal operating mode | max. 30 Hz | |
| Multi-mode | ≤ 30 Hz / n , n = number of sensors , n ≤ 5 | |
| output | ||
| type |
1way Current output 4...20mA 1way voltage output 0...10V |
|
| latency | < 150 ms | |
| resolution ratio | evaluation range [mm]/4000, but ≥ 0.35 mm | |
| Characteristic curve deviation | ≤ 0.2 % of full-scale value | |
| repeated accuracy | ≤ 0.1 % of full-scale value | |
| load impedance |
current output: ≤ 500 Ohm Voltage output: ≥ 1000 Ohm |
|
| temperature drift |
≤ 2 % from full-scale value (with temperature compensation) ≤ 0.2 %/K (without temperature compensation) |
|
| Licensing and Certification | ||
| UL Certification | cULus Listed, general requirements | |
| CSA Certification | cCSAus Listed, General Purpose | |
| CCC Certification | The maximum operating voltage of 36 volts products, without going through the license certification, and there is no need to identify with CCC-. | |
| surrounding | ||
| ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| mechanical characteristics | ||
| Wiring type | Connector M12 x 1 , 5-pin | |
| protection | IP65 | |
| material | ||
| case |
SS 1.4305 PLANSTIC PART PBT |
|
| transducer | Epoxy resin / hollow glass sphere mixture; polyurethane foam | |
| weight | 170 g | |
Specification of ultrasonic sensor :
1 Detection range: 15cm - 200cm;
2 Blind: 15cm;
3 Accuracy: <3mm;
4 Transducer frequency: 180Khz;
5 Transducers emitting angle: 14 degrees;
6 Operating voltage: 12v or 24v;
7 Operating current: less than 50mA;
8 Output current :4 - 20mA (corresponding to 15-200cm)
9 Shape: 30mm diameter threaded pipe, length 80mm
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Current ultrasonic sensor , please visit the website
