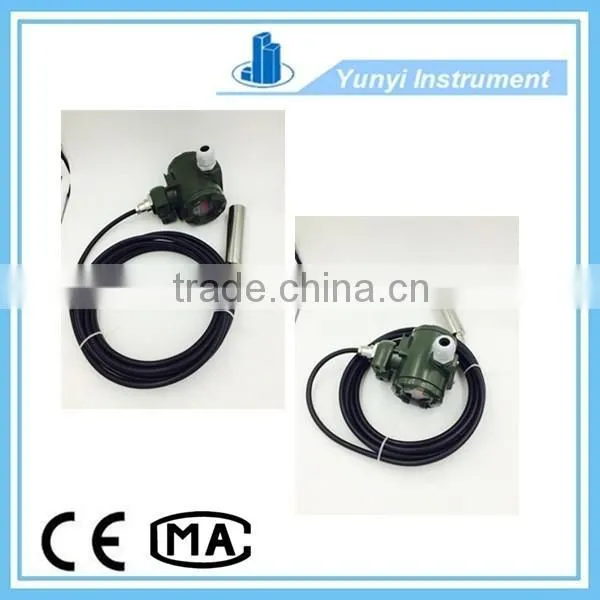

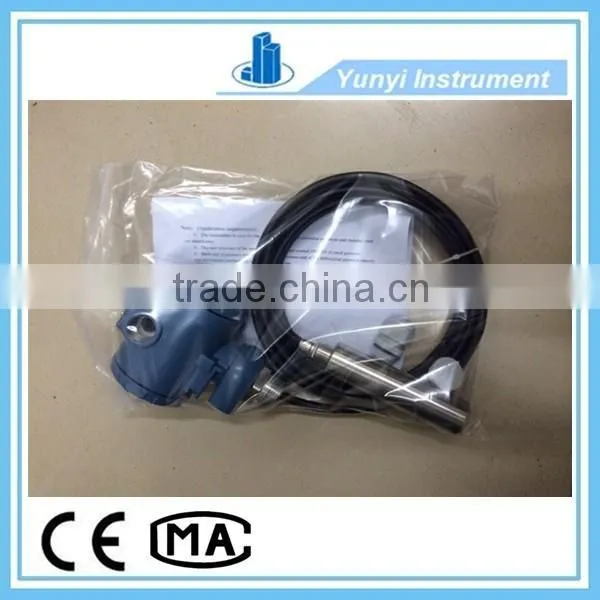

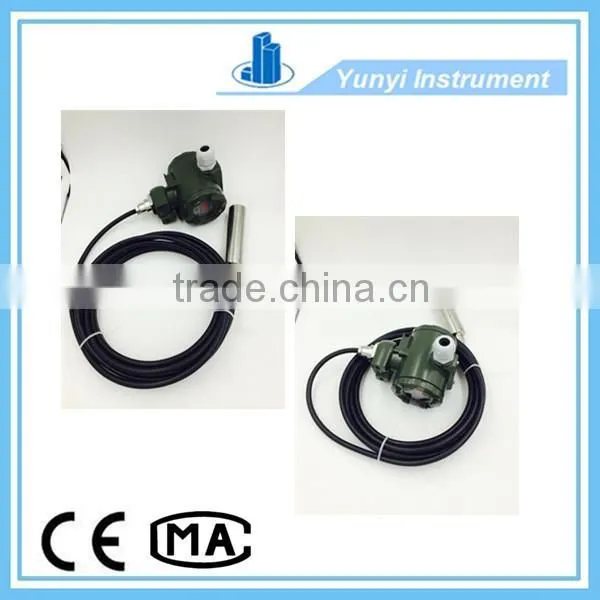

Introduction of YD322-II Liquid Level Transmitter
YD322-II liquid level transmitter is compose of full sealed isolation membrane oil-filled level sensor and special instrument circuit. With the advantages of high measuring precision, good stability, long service life, convenient installation, etc. With unique technology of sealing structure form, and good anti-leakage performance,immersed in a liquid reliable operation for a long time.
Technical Parameters of YD322-II Liquid Level Transmitter
| Measurement object | liquid level of water, oil, paste |
| Measuring range | 0 - 200m |
| Output signal | 4 ~ 20mAor 0 ~ 10mA |
| Power supply voltage | 24VDC |
| Temperature | -20 to 80℃ |
| Index Table | user select |
| Material | die-casting aluminum alloy shell, epoxy coating surface |
| Diaphragm | 316 stainless steel |
| Probe | 1Cr18Ni9Ti |
| Pressure Range | 0-1 |
| Accuracy | ±0.1% |
| Power Supply | 24VDC (12-30VDC) |
| Signal Output | Two Wire: 4-20mA |
| Operating Temperature Range | -20 to 80℃ |
| Connection Size | Inputting Type: Φ22 or Φ27 |
| Medium | Liquid compatible with 316LSS |
Standard export package and fast delivery
We supply twenty-four- hour on line service, and we will reply your message within 12 hours.
About the payment, we accept all kinds of payment terms, such as L/C, TT, Western Union,Escrow, etc.
Xi'an Yunyi Instrument Co.,Ltd has been the professional manufacturere of kinds of pressure gauge, pressure transmitter, pressure regulator, valve products and dead weight tester for many years. And our products have
been sold to many countries, such as United States, United Kingdom, Brazil, Russia, Malaysia, Israel, etc. and get high praise from our clients. If anything we can help, let us know freely, we are sure we will be the best
supplier for you.
