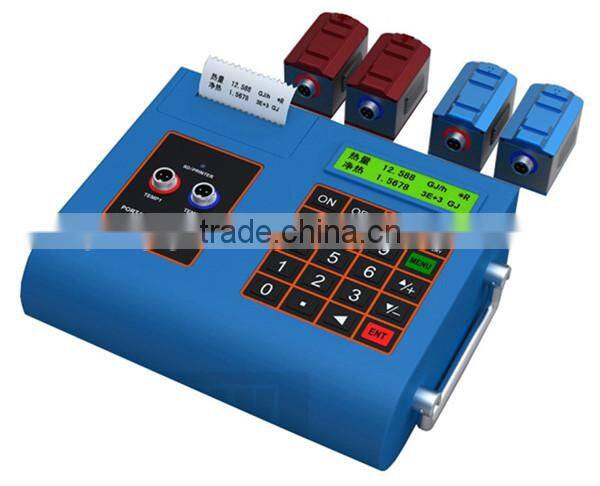

low cost portable ultrasonic energy flow meter
Description of low cost portable ultrasonic energy flow meter :
Ultrasonic flow meter can be divided into outside the pipe clamp mounted and plug-in installed two kinds, connection mode can be DC24V power supply, can also be DC220V power is optional. Explosion-proof grade Exd Ⅱ BT4, especially for the working condition of the chemical industry with explosion-proof required measuring flow.
Detailed parameters of low cost portable ultrasonic energy flow meter :
Items | Specifications |
Main unit | 2 line x 20 character LCD with backlight Working temperature: -25--60C° |
Mini thermal printer with 24 line character output | |
4x4+2 pushbutton keypad | |
RS-485 interface for downloading upgrade software | |
Sensor options | TS-1: small size sensor (magnetic) for pipe size: DN15-100mm, liquid temperature <110C |
TM-1:medium size sensor (magnetic) for pipe size:DN50-1000mm, liquid temperature <110C° | |
TL-1: Large size sensor (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110C° | |
Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
Flow velocity range | 0∼±30m/s |
Accuracy | Better than ±1% |
Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
Power Consumption | 1.5W |
Charging | Intelligent charging with AC 220V |
Weight | Net weight: 2.5kg (main unit) |
Remarks | With a high strength carrying case suitable for normal and harsh environment |
Standard configuration of low cost portable ultrasonic energy flow meter :

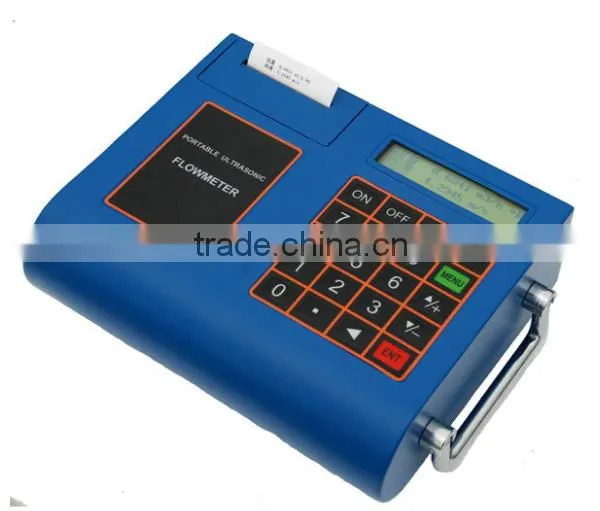

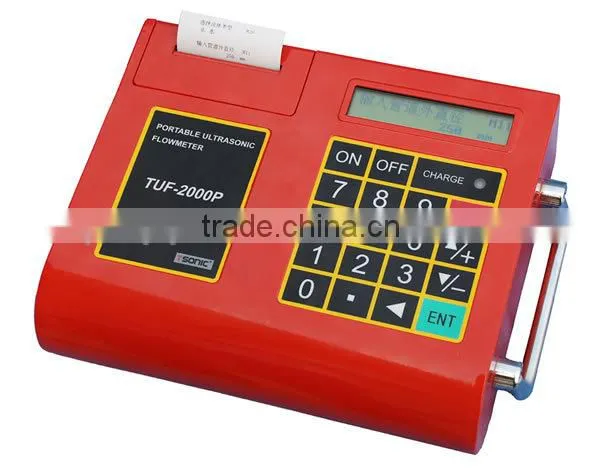

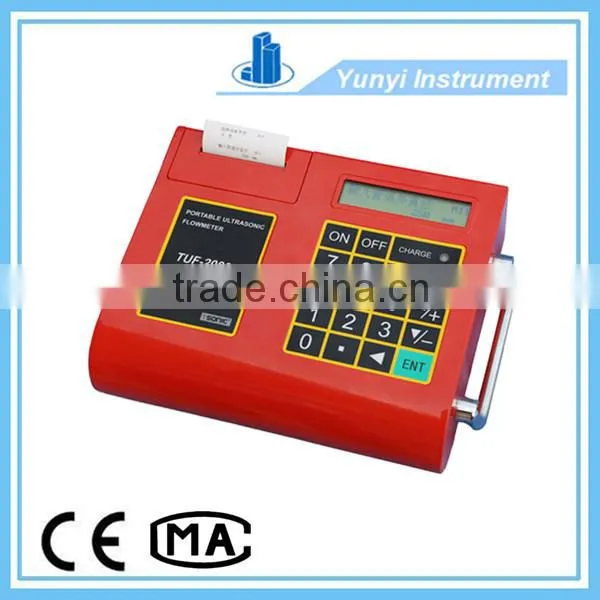

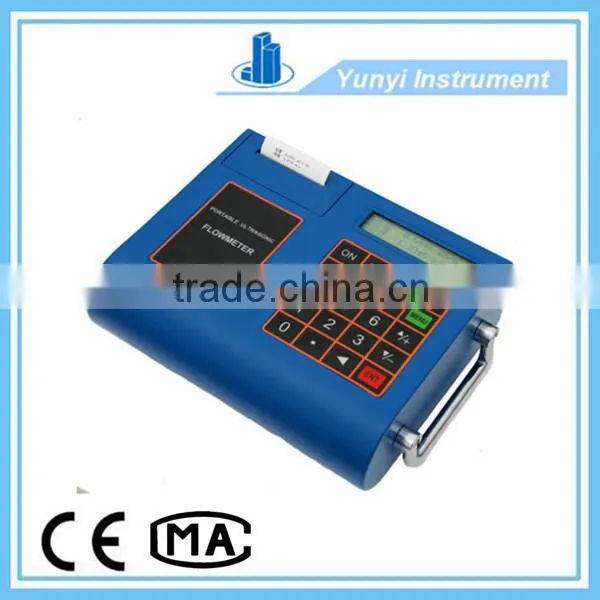

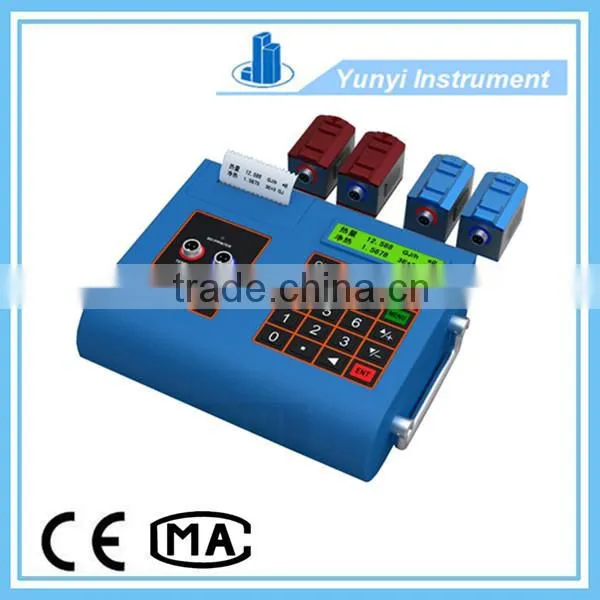

Main Unit | 1 PCS | Size:225×180×67mm Working temperature:-25--60°C Accuracy:±1% |
Medium sensor | 2 PCS | Magnetic, size:64×35×32mm Working temperature:-40--110°C Measuring range:DN50—DN1000mm |
Signal Cable | 2×5mm
| For connecting flow meter and sensor |
Power cord | 1×3M | For charging |

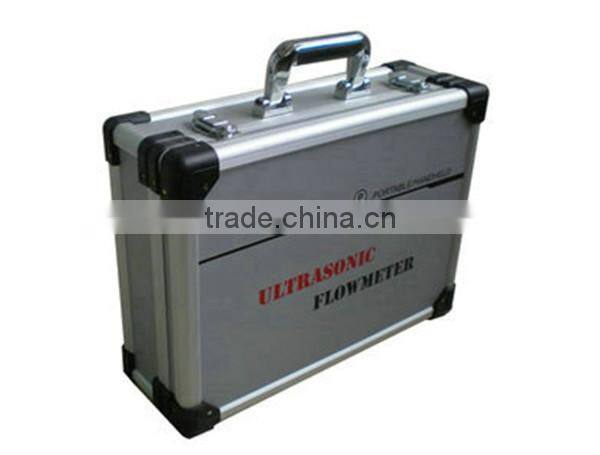

carrying case | 1 pcs | Size: 456×355×133mm |
Stretcher | 2×3m | Maximum tension:100kg,for binding sensor |
Tape ruler | 1×3m | For measuring the distance between sensors or pipe perimeter |
Thermal paper | 2×30m | Thermal paper |
User Manual | 1 pcs | User Manual |
Ultrasonic coupling agent | 1×110g | For signal transmission between sensors and pipe wall |
