System Introduction

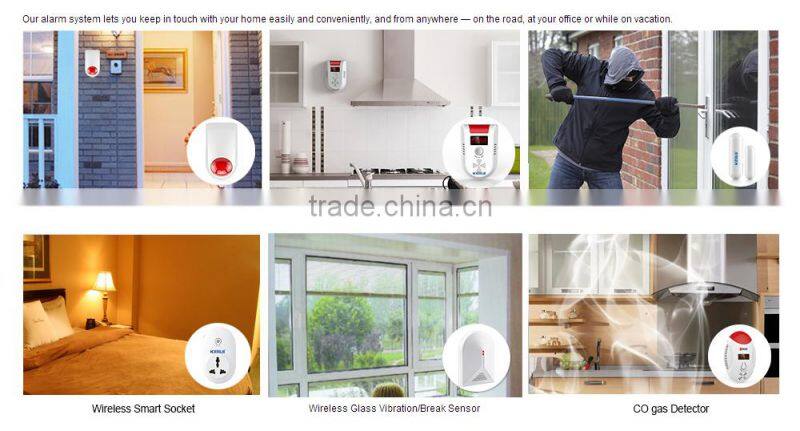

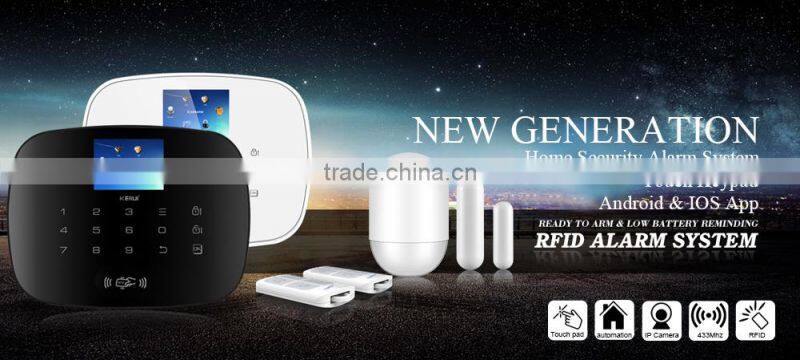

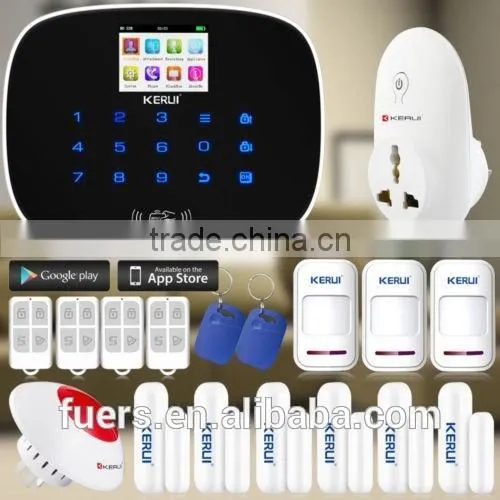

KR-G19 is a high-end GSM alarm with stable and reliable performance and applies 2.4-inch TFT color screen and touch keyboard with built-in powerful CPU master and excellent operation experience. Host connects PIR motion sensors, door contacts, smoke detectors, gas detectors and emergency button accessories etc. After receiving an alarm, host will display the alarm zone and alarm siren on site, while texting to and dialing the number preset to inform user. It’s widely used in houses, factories, schools, shops, convenience stores, financial rooms, villas, communities and other area needed to be protected to ensure the security of the person and property at all aspects.
Function Descriptions
Best experience for you
Main Function And Feature:
1.TFT color display, humanized menu, operation with voice prompt, easy to use.
2.Read RFID card to disarm, can learn 20 cards.
3.There are 99 zones and 8 zone types optional in each zone; ON/OFF siren in each zone is available.
4.2 wired zones, Open and Closed Alarm mode optional
5.Host can be used as a normal cellphone to call other phones directly
6.To Set host through phone or SMS remotely, and it ’s compatible with China Mobile Fly message function to save user ’s SMS costs.

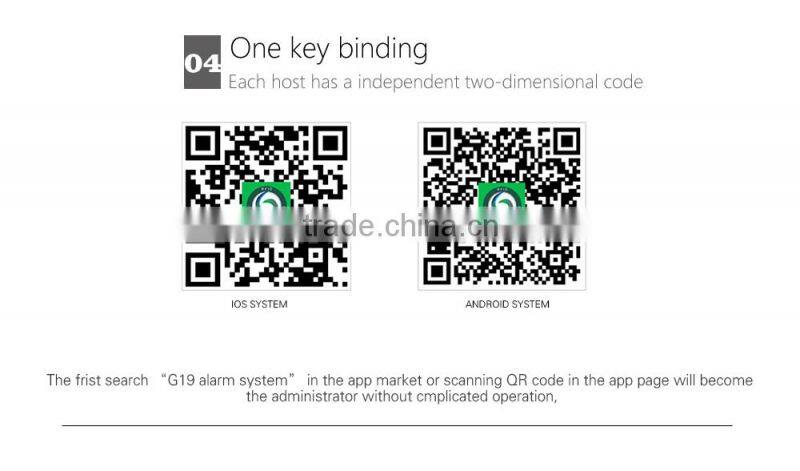

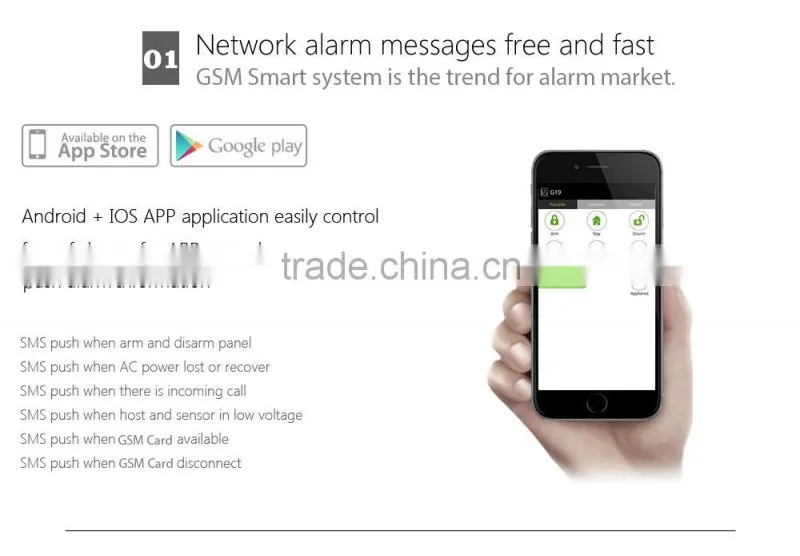

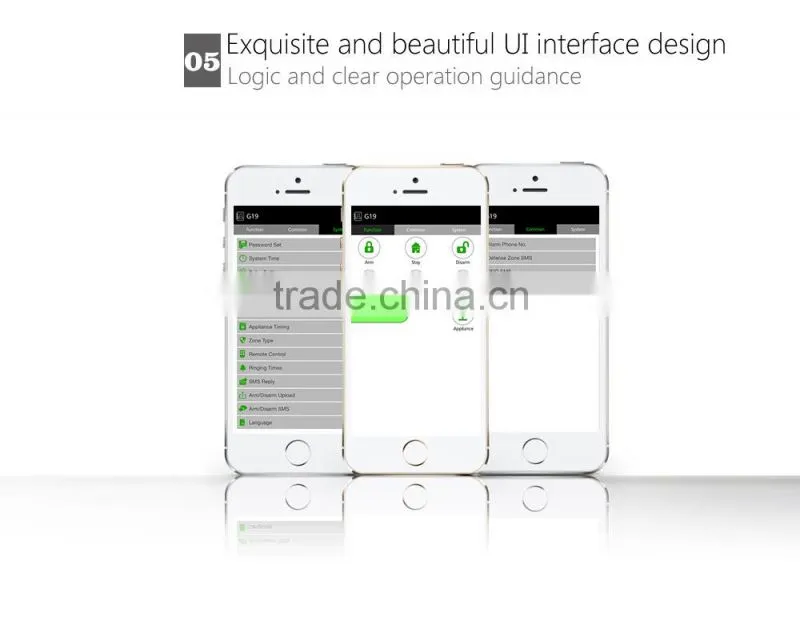

7.APP control host set and administration, and supports IOS/Android.
8.8 groups scheduling Arm/Disarm function, and date can be selected to avoid arm and disarm frequently manually to realize automatic control.

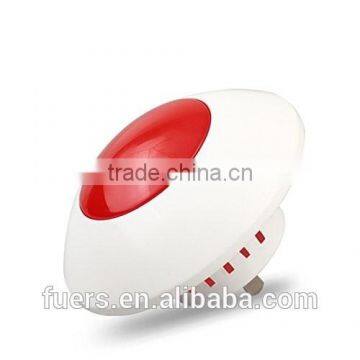

9.One-way alarm linkage wireless relay, and one-way wireless strobe siren

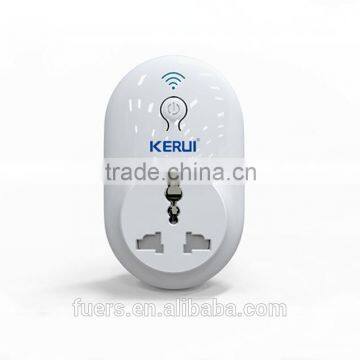

10.Control as much as 20 smart sockets through phone or SMS remotely to realize appliances remote control.

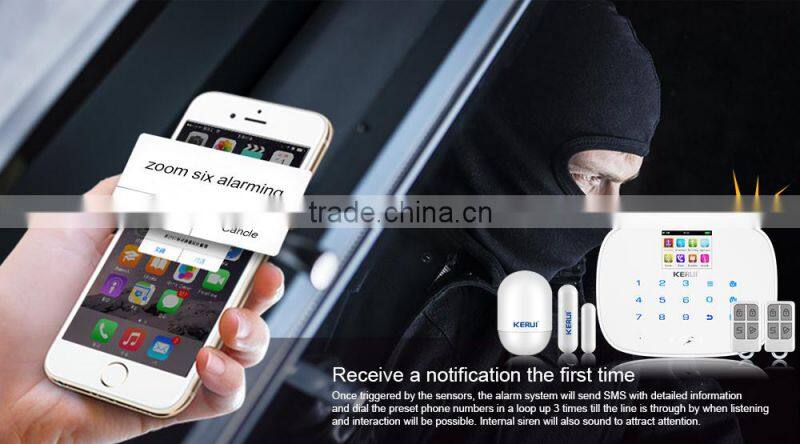

11.Host dial the phone number preset by user when alarms, and number never lost even power off
12.10s automatic message recording with built-in artificial voice, so that user can know the alarm place and zone when receive the alarm call remotely.
13.Arm/Disarm, Monitor, Speaker, siren ON/OFF, relay ON/OFF remotely.
14.Wireless study 1527 series accessories, and as much as 99 detectors and remote controls.
15.Integrate high precision clock chip so that time never lost even power failure.
16.Display the latest 99 arm/disarm, alarm and card read records with unique black box function.
17.Low-voltage indication and anti-tamper
18.Built-in rechargeable high capacity LI battery and supply power automatically when power supply failure
19.Caller ID display, power-off reminder.
Back TopSpecifications
KR-G19 GSM Alarm Control Panel | |
| Input Voltage | DC 5V / 1.2A |
| Standby Current | <55mA |
| Alarming Current | <450mA |
| Standby | Around 24 hours, Full charging time: 8hours. |
| 4-Band GSM | 850 / 900 / 1800 / 1900 MHz |
| Sensors | Store Max. 99 wireless sensors |
| Remote Control | Store Max. 99 wireless remotes |
| GSM transmit power | 2W |
| Built-in backup battery | NI-MH AAA*6 7.2V. (Rechargeable) |
| Humidity | 40% ~ 80%. |
|
Wireless Door/Window Sensor
| |
| Static Current | ≤20 mA |
| Transmission Current | ≤15mA |
| Transmission Frequency | 433MHZ ± 0.5MHZ |
| Transmission Distance | About 30m with one barrier |
| Internal Distance | 15 mm |
| Working Condition | Temperature -10 degree ~ + 40 degree |
| Humidity | ≤ 90% rh |
| Battery Life Time | About 6 months |
|
Wireless Pet-Immun P.I.R Motion Detector
| |
| Power Supply | USB 5V or 2* AA battery |
| Work Currents | <20 mA. |
| Immunity to pets weighing | <10KG |
| Static Currents | <50UA |
| Wireless Frequency | 433MHZ ± 0.5MHZ |
| Transmission Distance | About 30m with one barrier |
| Detective Speed | 0.3 - 3m/s |
| Detective Distance | 8m |
| Detective Range | Horizontal 90°, Vertical 60° |
Wireless Smoke Sensor | |
| Power Supply | 9V(6F22 battery) |
| Frequency | 433MHz |
| Operating Current | 10uA(normal) and 20-50Ma(alarm working) |
| Ambient Humidity | 10%-90% |
| Horn Level | 85 Decibels at 10 feet |
| Test Button | Test button for easy recommended monthly testing |
| Installation | Ceiling or wall mounting |
| Battery life | About 12 months |
Remote Control (Keyfob) | |
| Static Current | 0 |
| Emission Current | ≤15mA |
| Transmission Frequency | 433MHZ ± 0.5MHZ |
| Emission Speed | T≤1 second |
| Emission Distance | About 30 meters |
| Working Condition | Temperature -10 degree ~ + 40 degree |
| Humidity | ≤ 90% rh |
....
