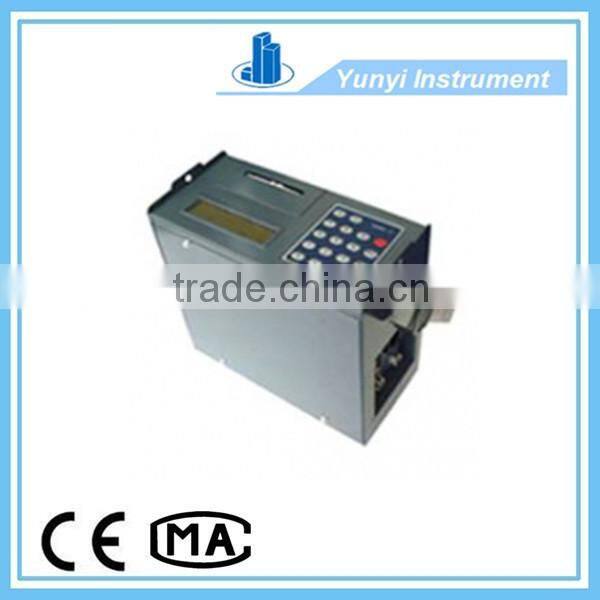

TDS-100P portable type ultrasonic flow meter
Technology features:
1: measurement accuracy: better than 1%
2: repeatability:better than 0.2%
3: operating power:220VAC(standard),110VAC(optional)
4: measurement cycle:500ms(two times per second,collect 128 set datas per cycle)
5: battery: built-in Ni-MH,continually working up to 24 hours.
6: installation method: clamp-on installation.
7: display:2*20 backlit LCD(instant flow rate,accumulating flow rate,signal status,etc.)
8: signal output:isolation RS485
9: communication protocol:MODBUS protocol
10: print output:built-in thermal printer,achive to print online or at fixed time ,other option is SD card datalogger.
11: other fuctions:self-diagnosis,indicate present working status is normal or not.
12: transducers:clamp-on sensors
Optional sensors:
1.Standard Small stent sensors(DN15-100mm)
Fluid temperature: ≤ 160 Degrees
Dimension: 200 × 25 × 25mm
Handle Length: 100mm
2.Standard midsize stent sensors(DN50-DN700mm) (Magnetic)
Fluid temperature: ≤ 160 Degrees
Flow range :0.05-32m ³ / sec
Dimension: 280 × 40 × 40mm (2)
3. Standard Small sensors(DN15-100mm) (Magnetic)
Fluid temperature: ≤ 160 Degrees
Dimension: 50*30*29mm
4.Standard midsize sensors M2(DN50-DN700mm) (Magnetic)
Fluid temperature: ≤ 160 Degrees
Flow range :0.05-32m ³ / sec
Dimension: 100*40*35mm
5.Standard large size sensors L2(DN300-DN6000mm) (Magnetic)
Fluid temperature: ≤ 160 Degrees
Dimension: 120*55*45mm
