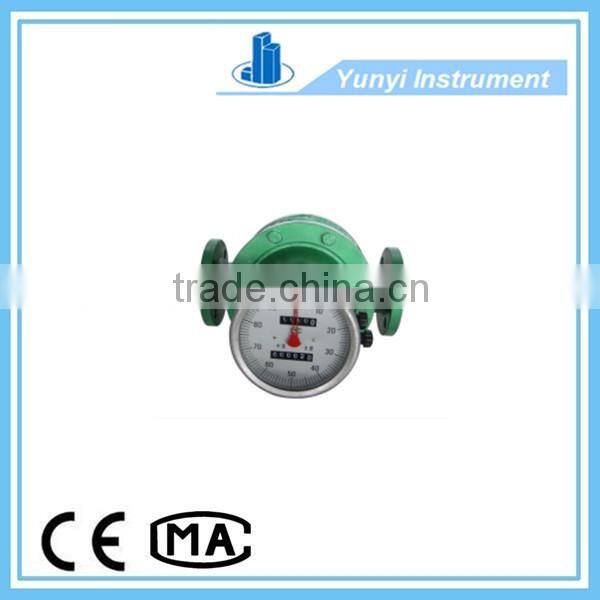

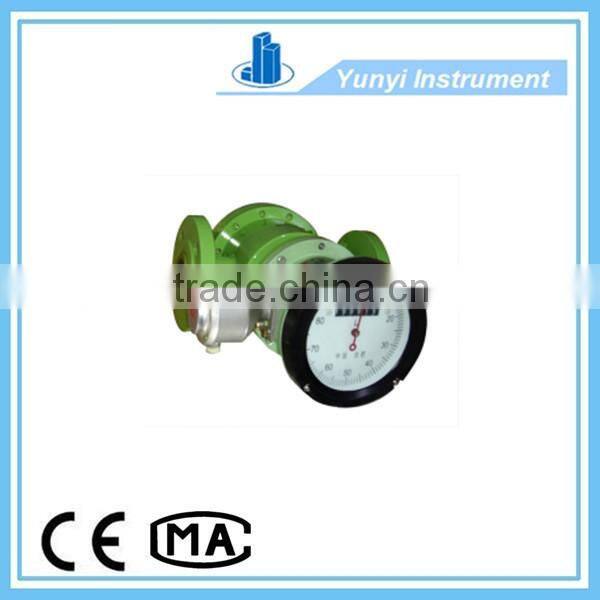

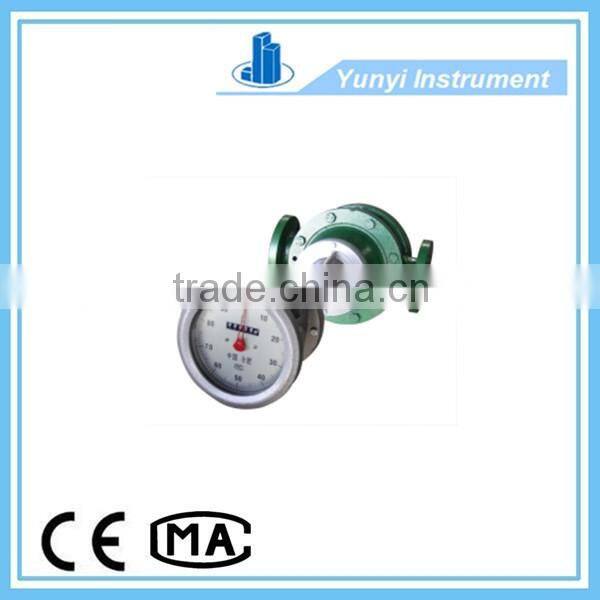

Oval gear power flowmeter
Parameters of oval gear flowmeter
Oval gear flow meter is a pointer to show a cumulative count of the word round fixtures and light device back to zero displacement flow meters, liquid flow control is widely used in various industrial fields, for all types of liquid measurement, such as crude oil, diesel , gasoline, etc., with large-scale, high precision, ease of use and maintenance features, use different materials to meet the flow measurement of liquid petroleum, chemical, pharmaceutical, food, metallurgy, electric power, transportation and other areas.
Technical Parameters of oval gear flowmeter
| Technical Parameters | ||||||||
| Model |
QW 130-15 |
QW 130-20 |
QW 130-25 |
QW 130-40 |
QW 130-50 |
QW 130-65 |
QW 130-80 |
QW 130-100 |
| DN(mm) | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 |
| Min flow rate m3/h | 0.16 | 0.3 | 0.6 | 1.6 | 2.5 | 5 | 6 | 10 |
| Max flow rate m3/h | 16 | 3 | 6 | 16 | 25 | 40 | 60 | 100 |
| Accuracy | ±0.5% | |||||||
| Working Termerature°C | Normal type: -10-----+ 80°C,High Temperature type:-10----+200°C | |||||||
| Normal Pressure | 1.6Mpa/16Bar | |||||||
| Pressure Loss Mpa | 0.1Mpa/1Bar | |||||||
| Liquid Viscosity | Normal type: 2---75 Mpa.s,Heavy oil type:75----500Mpa.s | |||||||
| Totalizer volume m3 | 999.99 | 9999.9 | 99999 | |||||
| Size mm L*B*H |
180* 124*225 |
200* 124*235 |
245* 184*250 |
252* 184*275 |
340* 226*335 |
360* 260*330 |
560* 266*340 |
420* 310*405 |
