Widely Used in Many Countries Dryer Machine , Silica Sand Rotary Dryer
US$ 1,000 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, rotary dryer
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Henan Zhongde Leading Rotary Dryer for Sale With Competitive PriceUS$ 1,000 - 9,999MOQ: 1 Set -
WIdely Applied in Mining Rotary Dryer for Sale by China SupplierUS$ 1,000 - 9,999MOQ: 1 Set
-
Rotary Dryer for Activated Carbon by China SupplierUS$ 1,000 - 9,999MOQ: 1 Set
-
Energy Saving Rotary Dryer Made in ChinaUS$ 1,000 - 9,999MOQ: 1 Set
-
Professional Lignite Dryer Machine With TUVUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Other, rotary dryer
Place of Origin
Henan, China
Brand Name
ZHONGDE
Model Number
3.2*25
Voltage
varies
Power(W)
refer to specification
Dimension(L*W*H)
refer to specification
Weight
110t
Certification
CE/ISO/TUV
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Good Rotary Drier On Sales2.Save 20% energy consumption
3.Higher production capacity
4.Natioal standard
Product Description
Working principle of rotary dryer:
Rotary dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout and alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam leeting into air, and aimed dry material is achieved.
Application scope of rotary dryer:
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral power, slagg, clay, limestone, lignite and other materials.
Technical parameter of rotary dryer:
| Spec./m(Dia.*Length) | Shell cubage(m³) | Capacity(t/h) | Installation obliquity(%) | Highest inlet air temperature(°C) | Main motor |
Ø1.2*8.0 |
9.0 | 1.9-2.4 | 3-5 | 700-800 | 9 |
| Ø1.2*10 | 11.3 | 2.4-3.0 | 3-5 | 700-800 | 11 |
| Ø1.5*12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 18.5 |
| Ø1.5*14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 19.7 |
| Ø1.5*15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 20.5 |
| Ø1.8*12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 21.5 |
| Ø1.8*14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 23 |
| Ø2.2*12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 33.5 |
| Ø2.2*14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 36 |
| Ø2.2*16 | 60.8 | 13.0-16.2 | 3-5 | 700-800 | 38 |
| Ø2.4*14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 45 |
| Ø2.4*18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 49 |
| Ø2.4*20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 54 |
| Ø2.4*22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 58 |
| Ø2.6*24 | 127.4 | 27.2-34.0 | 3-5 | 700-800 | 73 |
| Ø3.0*20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 85 |
| Ø3.0*25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 95 |
| Ø3.2*25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 110 |
| Ø3.6*28 | 285 | 60.8-76.0 | 3-5 | 700-800 | 135 |

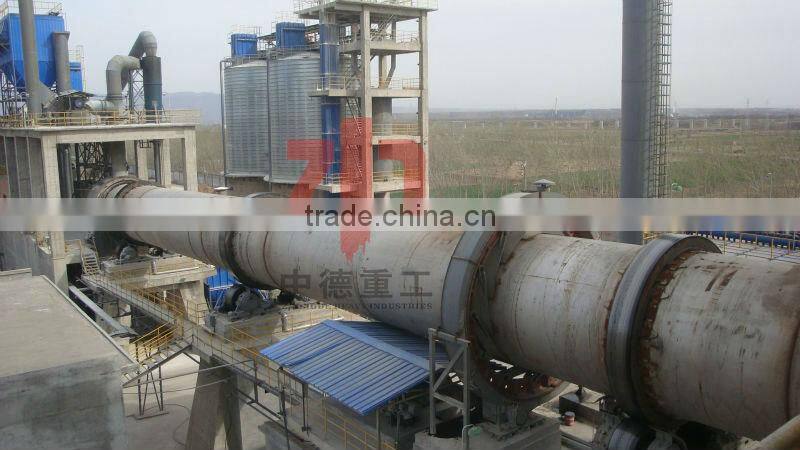

Rotary dryer pictures:

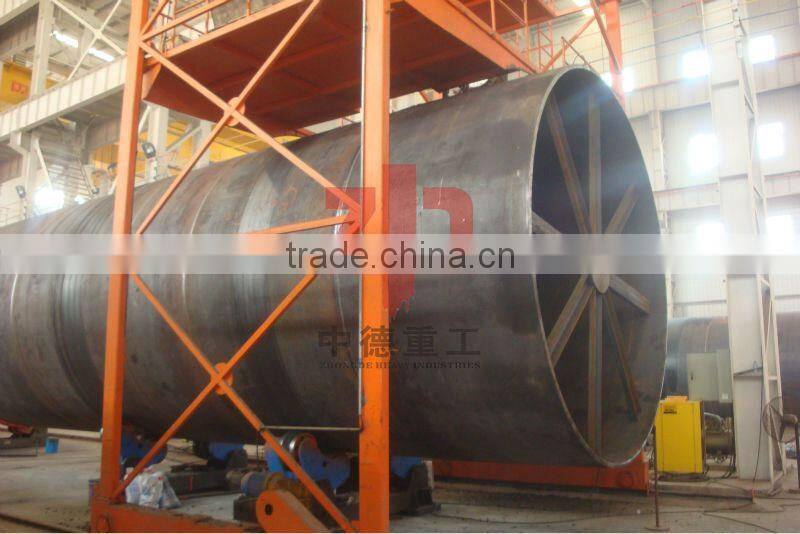

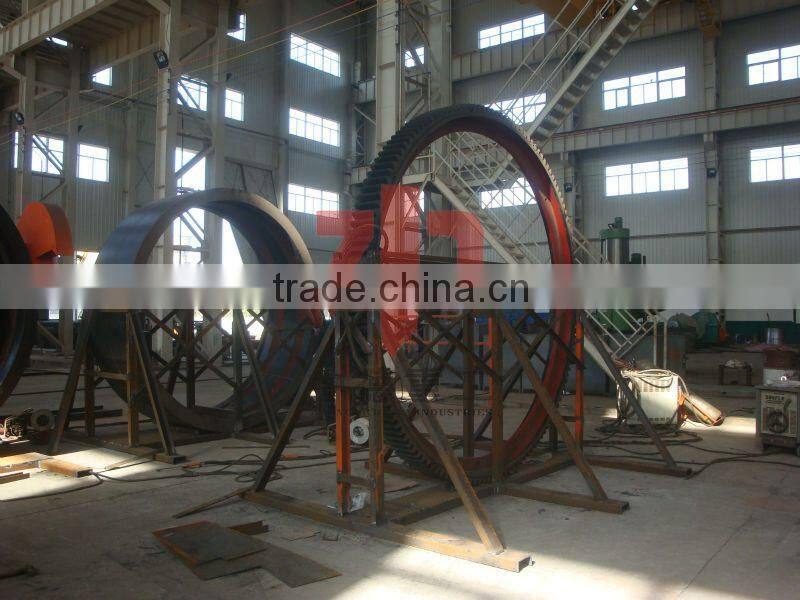

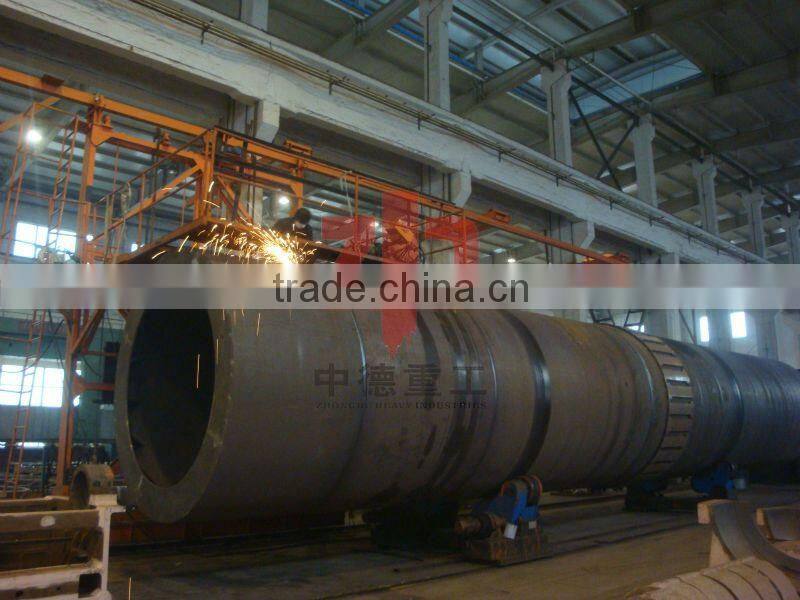

The workshop of rotary dryer:
Packaging & Shipping
Payment Terms of rotary dryer:
- Payment methods are T/T, L/C,D/A,D/P;
- We take pictures of finished rotary dryer before delivery.
Packaging of rotary dryer:
- Sand blasting, coat with high quality paint;
- Product wrap by PP-Bubble;
- Load container, Spear Parts in wooden case.
Our Services
Our service of rotary dryer:
- Installation and adjustment of rotary dryer: The Installation and adjustment of our rotary dryer is provided by our company. Technicist of rotary dryer will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of rotary dryer: Three-guarantees of rotary dryer and warrantly period id one year.
- Technical support of rotary dryer is provided from the beginning to the end.

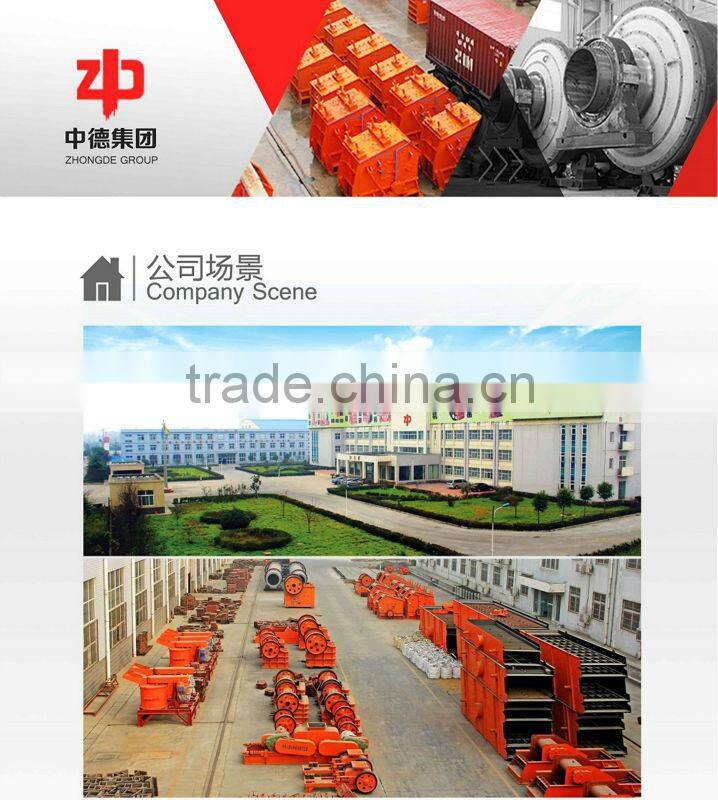

Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
FAQ
How about the quality of your rotary dryer?
- Our rotary dryer is manufactured strictly according national and international standard.
- We take a test on every rotary dryer before delivery.
How about price of your rotary dryer?
- We can give the lowest price of rotary dryer than market one.
- We do quotation of rotary dryer as soon as possible for any custome.
- Discount of rotary dryer can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation rotary dryer overseas.
- The guarantee period of our rotary dryer is one year.
