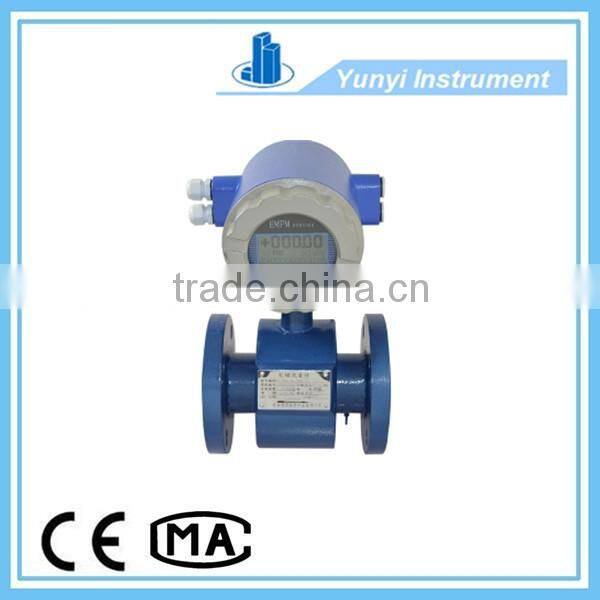

Battery-powered electromagnetic flow meter
Description:
Xi'an Yunyi Instrument Co., Ltd Battery-powered electromagnetic flow meter, built 3.6V / DC battery, can work for longer than three years. At the same time using a specially designed sensor excitation system with full digital signal processing, anti-interference ability characteristics. Battery-powered electromagnetic flowmeter converter using LCD backlight LED display, even in bright light or at night can be clearly read.
Like other electromagnetic flow meter in our company,theAutomatic bi-directional flow measurement can be achieved, on-site instantaneous measurement, forward, reverse cumulative total display, GSM data wireless remote, self-diagnostic troubleshooting tips, and other functions. And there is an intelligent and smart sub-body size can be selected according to the site.
It is the most stable domestic battery-powered electromagnetic flowmeter , as well as the highest accuracy, the most power and convenient .
Parameter:
| Nominal diameter: | DN3,6,10,15,20,25,32,40,50,65,80,100,150,200,250,300,350,400,450,500,600,700,800,900,1000,1200,1400,1600,1800,2000 |
| Maximum flow rate: | 15m/s |
| Accuracy: | 0.5%,0.2% |
| Standard: | JB/T9248-1999 |
| Nominal: | 4.0MPA(DN10-150) 1.6MPA(DN200-600) 1.0MPA(DN700-1200) 0.6MPA(DN1400-2000) Special requirementscanbe customed |
| Surrounding temperature: | sensor:-25℃~+60℃ converter:-10℃~+60℃ |
| Relitive humidity: | 5%-95% |
| Working Conditions: | Fluid Maximum temperature:Compact 70℃ Separate: PTFE lining 150℃ Neoprene lining 80 ℃ Polyurethane Lining 70 ℃ |
| Fluid conductivity: | ≥5uS/cm |
