Home > Products > Flow meter > co2 gas flow meter/turbine flowmeter

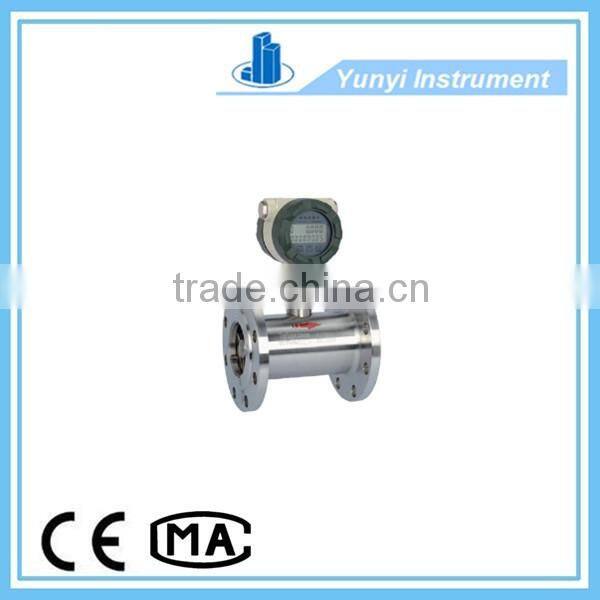

co2 gas flow meter/turbine flowmeter
- 1000 Piece / Pieces per Month
- Tianjin Qingdao Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | LWQ series |
Packaging Details
Standard export package
Product Description
co2 gas flow meter/turbine flowmeter
Has high precision, good repeatability, simple structure, less moving parts, high pressure resistance, wide measuring range, small volume, light weight, small pressure loss, easy maintenance, etc, used for measuring the volume and total amount of low viscosity
gas in a closed pipe, has wide using value in petroleum, chemical industry, metallurgy, urban gas business field.
Parameters :
type | LWQ-N | LWQ-A | LWQ-B | LWQ-C | LWQ-D |
signal output | pulse | 4-20mA | without | 4-20mA | optional 4-20mA/ pulse
|
power supply | +24VDC±15% | +24VDC±15% | lithium battery | 24VDC±15% | 24VDC±15% + lithium battery |
accuracy | 2.5~1.5 | 1.5~1.0 | 1.5~1.0 | ||
range | STANDARD RANGE |
STANDARD RANGE or extension
|
STANDARD RANGE or extension
| ||
display |
| with | with | ||
temperature compensation |
|
| with | ||
communication interface |
|
| RS485 | ||
real-time recording |
|
| with | ||
Instrument material | Aluminum alloy or stainless steel | Aluminum alloy or stainless steel | Aluminum alloy or stainless steel | ||
Explosion-Proof | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | ||
Aluminum alloy or stainless steel | IP65 | IP65 | IP65 | ||
overall power consumption | <1W | <1W | <1W | ||
Instrument drift diameter | DN25~DN300 | DN25~DN300 | DN25~DN300 | ||
Installation | flanged mounting | flanged mounting | flanged mounting | ||
medium temperature | -20°C~80°C | -20°C~80°C | -20°C~80°C | ||
|
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
