Help CenterYK-627L7 Elevator Parts
Related Products
Operating environment |
-20degree--+65degree,100,000LUX |
Vertical tolerance |
+10mm,10degree |
Horizontal tolerance |
+5mm,7degree |
Detecting height |
20mm-1841mm |
Response Time |
65ms |
Power consumption |
3W |
Signal output |
Relay contact, 1N0/1NC |
Power Indicator |
The green LED |
Status Indicator |
The red LED |
Buzzer In receiver |
15s after beam obstructed continuously |

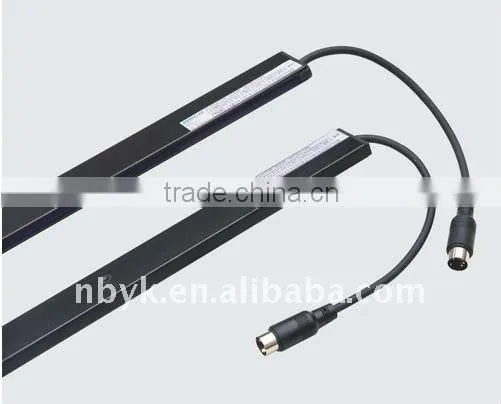

Name: YK-627L7 elevator parts
Model:YK-627L7
Specification:
Response time: 61ms@relay output, 37ms@transistor output
Number of Infra Red Diodes:32Diode sets
Scanning Beams:94~128Beams
Detecting Height:20~1840mm
Infra Red Diodes Range:58.8mm
Redundancy: One transmitter shielded after 120s detected absent.
Power Consumption:<=4W or 100mA@DC24V
Operating Temperature:-20°C~ +65°C
Tolerance: Up/down:+-10mm/7° Back/forth: +- 3 mm/5°
Light Immunity:<=100000Lux
EMC (EN 12015)
(EN 12016)
EFT: Passed Level 2tests D(+-1KV)
Surge: A(Air discharge+-15KV,Direct discharge+-6KV)
Radio-frequency:D(10V rms,150Khz~1.96GHz,80%)
Vibration:Vibration 20 to 500Hz 4hrs per X-Y-Z axis,sinusoidal vibration 30Hz rms 30mins per X-Y-Z axis
Detecting Range:0~3m
Protection Level:IP54(TX RX),IP31(Power box)
Voice Reminder:Buzzer in RX,after continuous detection for 15s,buzzer ON.
Voice Reminder:Buzzer in RX,aftercontinuous detection for 15s,buzzer ON.
LED Interpretation:Green LED power indicator in receiver, Red LED status indicator in receiver,Green LED power indicator in power box, Red LED status indiator in power box.
We hope to de the best service for you and hope to start business with you in the near future.
Welcome to contact us!
