Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YK | Model Number: | YK-627G |
Product Description

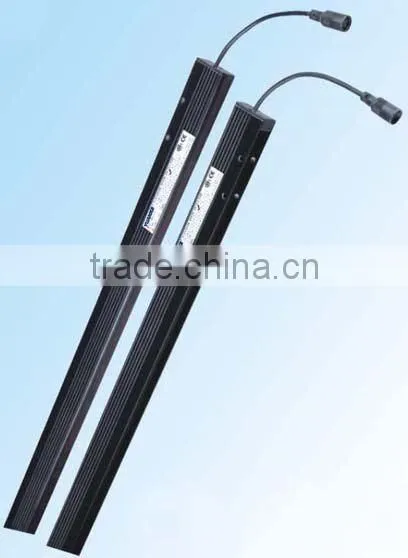

Both infrared door detector model: 627E and infrared door detector model: 627G are connected with 2-in-1 linkage gear by its fixed slot ( dotted part in the cross section ) at their back. This connection method is the same as with MITSUBISHI and HATACHI safety edge.
There is a 4 digits dial-up switch inside a power box for power supply both AC 220V and AC 110V, through which people set buzzer how to work.
Switch | ON | OFF |
SW1 | No sound from buzzer | Sound from buzzer |
SW2 | Not to switch to safety edge after detection | Switch to safety edge after a certain time of detection. |
SW3 | To start sound after 10s' detection and to stop sounding after 20s | Start sound after 15s' detection, and stop for 15S after 15s'sound. Stop sounding after repeated 3 times. |
SW4 | No Need | No Need |
Operating environment | -20°C--+65°C,100,000LUX |
Vertical tolerance | +20mm,10° |
Horizontal tolerance | +5mm,7° |
Detecting height | 20mm-1841mm |
Response Time | 65ms |
Power consumption | 3W |
Signal output | Relay contact, 1N0/1NC |
Power Indicator | The green LED |
Status Indicator | The red LED |
