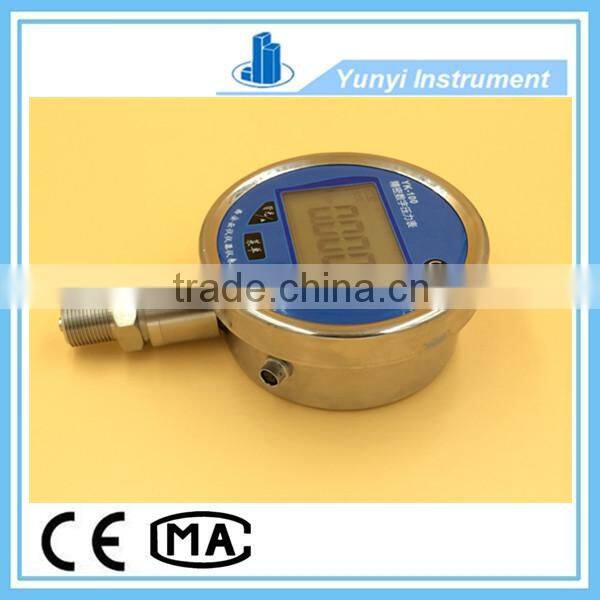

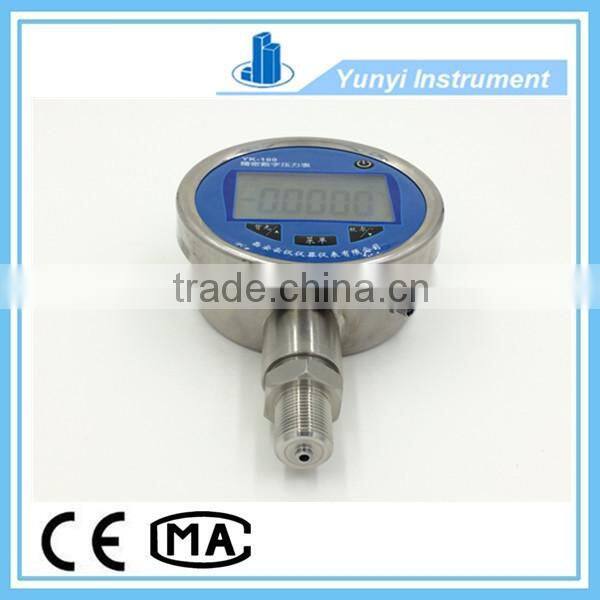

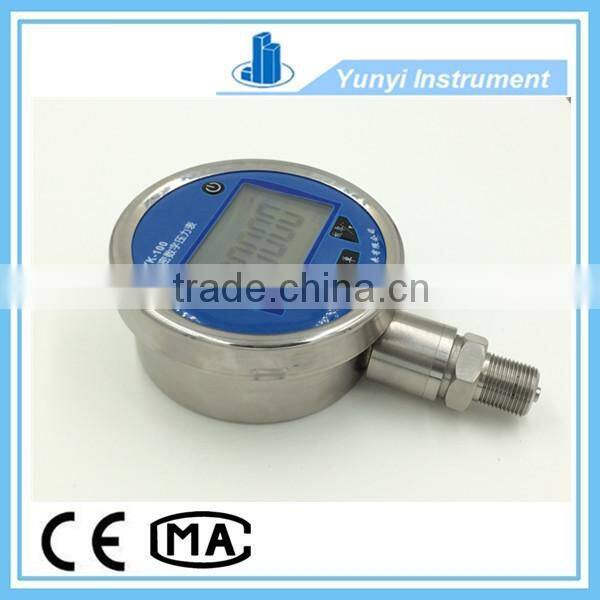

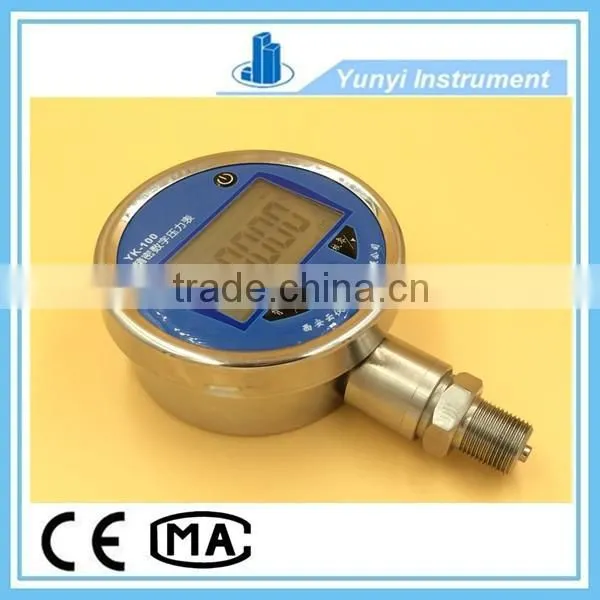

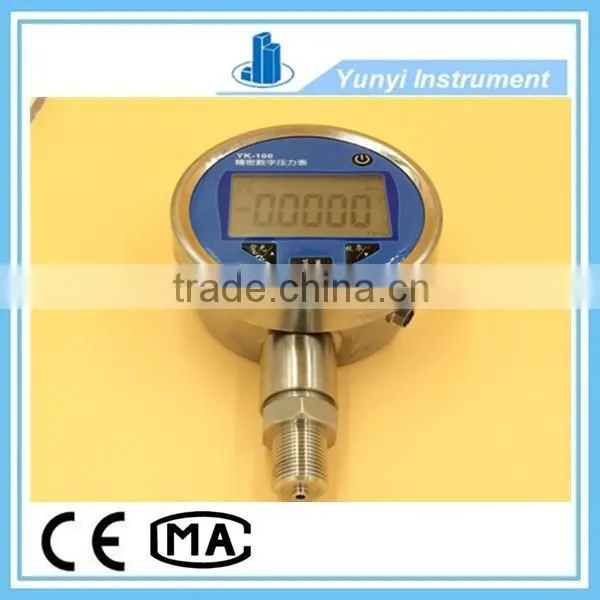

Description of Digital Pressure Gauge
YK-100 digital precision pressure gauge is a new product of our company, is mainly
designed and produce for measurement work, with characteristic of high acquisition
frequency, good stability, small precision loss, is most popular with the measuring
workers.
Use Environment of Digital Pressure Gauge
A. Temperature: (0 ~ 50)℃
B. Relative humidity: <95%
Technical Parameters of Digital Pressure Gauge
| Pressure range | -0.1~0MPa 0~100MPa |
| Analog output | 4-20MA |
| Data output | RS485, RS232 |
| Power supply | Rechargeable battery |
| Process connection | M20*1.5 |
| Display | 5 digits LED |
| Over load | 1.5-3 times |
| Medium temperature | -40℃~70℃ |
| Hysteresis | 0.01% |
| Accuracy | 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |
| Isolation technology | signal isolation technique, anti electromagnetic interference |
| Zero | zero automatically setted, don't need for calibration |
| Progress display | visual display of pressure percentage |
| Dimension | φ100mm × 34mm |
| Weight | 0.75kg |
Features of Digital Pressure Gauge
Visual display the bar charts of pressure percentage
Can realize the self calibration correction
Acquisition speed can be set to (0.3~10) s/time
The battery life of up to 3 years
The technology of signal isolation andAnti electromagnetic and Radio frequency
interference
Zero self stabilization technology, temperature compensation technology
