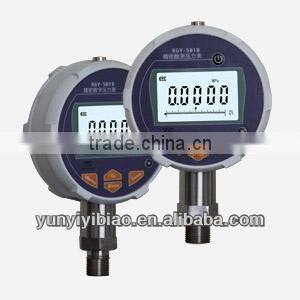

Digital Piezometer(with Communication)

piezometer Standard packing(or according to the customer request)

Specifications

Digital piezometer (with communication)

Description:

YK-201 digital pressure gaugeis designed on the basis of YK-200 and RS485 communication output 4 ~ 20mA signal function, with communications software can communicate directly with the computer, the data stored on the detection, treatment and report output; signal full isolation design to eliminate interference; built-in lithium battery life of 4 to 6 years, when disconnecting the external power supply remains stable acquisition pressure (communication function failure). Shape with radial, axial and pans are optional.

technical data of  Digital pressure gauge (with communication)

1 . Measuring range : gauge :-100kPa ~ 0 ~ 1kPa ~ 260MPa

     Differential pressure : 0 ~ 500Pa ~ 3.5MPa

     Absolute pressure : 0 ~ 10kPa ~ 60MPa

2 . Output signal : 4 ~ 20mA (24VDC two wire ), 1 ~ 5V

3 . Communication : RS485, RS232, USB, MODBUS, USART

4 . Accuracy class : 0.05 , 0.1 , 0.2 , 0.

5. Overload pressure: 1.5 to 3 times the range, depending on the measurement range may be

6. Display: 5 digit dynamic display , the percentage bar graph

7 . Range migration : It is recommended not to exceed 3:1 (4 ~ 20mA output signal for )

8. Built-in Power : 3.6V high-energy lithium batteries

9. Load capacity : RL = U - loop voltage (V) RL - Allowable load resistance (Ω)

10. Communication power supply : 10-30VDC external power supply

11. Medium temperature : -40 °C ~ 85 °C

12. Working environment : Temperature : -30 °C ~ 60 °C; Humidity: <90%

      Temperature : 0 °C ~ 50 °C (0.05 stage uses temperature ) ; Humidity: <90%

      Correcting the reference environment : ± 2 °C 20 °C

13. Explosion levels : ExiaIIBT4

14. Process connection : M20 × 1.5 ( male) or according to user requirements

15. Optional accessories: communications software , such as aluminum suitcase

Features:

       1. Magnetic induction pen button design

       2 percentage bar graph visually shows the pressure

       3. Acquisition speed can be set

       4 optional RS485 communication and 4 ~ 20mA current output

       5. Never dropped communications technology, bus supports 255 RS485 devices

       6 super power management technology, battery life of up to 4-6 years to replace the battery lifetime free

       7 full signal isolation technology

       8 anti-electromagnetic and radio frequency interference

Application:

       1 Laboratory of Digital Communications collecting pressure data stored on your computer and handling

       2 for checking pressure (DP) transmitter, precision pressure gauge, general pressure gauges, blood pressure and other pressure instruments

       3 accuracy of 0.05, to meet the needs of high-precision pressure acquisition

       4. Meet resistance, impact resistance, vibration, and other places pressure acquisition needs

       5 Alternative pointer precision pressure gauges, pressure gauges do standard

       6 standard measuring and testing instruments to meet the needs of various industries

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
