Cylinder Rotary Kiln Cooler in Cement Industry/Cement Factory
Introduction of Rotary Cooler Machine:
Monocular Cooler is one of the main equipments in rotary kiln production system.
Its role is to cool the 1000~1300°C clinker from rotary kiln to 200°C and below by heating exchange of moving materials and airflow inside the rotating barrel.
The quality and grindability after cooling down is improved. The air from cooling clinker is injected into kiln, as secondary circulating air, raising the thermal efficiency of kiln.
Rotary Cooler working principle:
In the natural situation, the slope of Cooler cylinder is 3.5% to 5%, keeping low-speed rotation. The material is feeding from end of Cylinder (high side), circular lifting plate keeping the materials scatter lifting and moving down. Cooling material is discharged from the low end, and preheated air is sending into the rotary kiln for calcinations.
Technical parameters of rotary cooler machine:
Specification |
Capacity |
Installation obliquity (%) |
Main reducer |
Main motor (KW) |
Φ1.5×15 |
2~3 |
3~5 |
ZQ500 |
15 |
Φ1.5×20 |
3~4 |
3~5 |
ZQ500 |
15 |
Φ1.8×18 |
4~6 |
3~5 |
ZQ500 |
18.5 |
Φ2.0×22 |
7~8.5 |
3~5 |
ZQ500 |
22 |
Φ2.2×18 |
7~8.5 |
3~5 |
ZQ500 |
22 |
Φ2.2×22 |
8~10 |
3~5 |
ZQ650 |
30 |
Φ2.5×25 |
15~20 |
3~5 |
ZS125 |
55 |
Φ2.8×28 |
16~22 |
3~5 |
ZL100 |
55 |
Φ3.0×30 |
20~25 |
3~5 |
ZL115 |
75 |
Φ3.2×36 |
28~32 |
3~5 |
ZL115 |
90 |
Φ3.3×40 |
32~36 |
3~5 |
ZL130 |
132 |

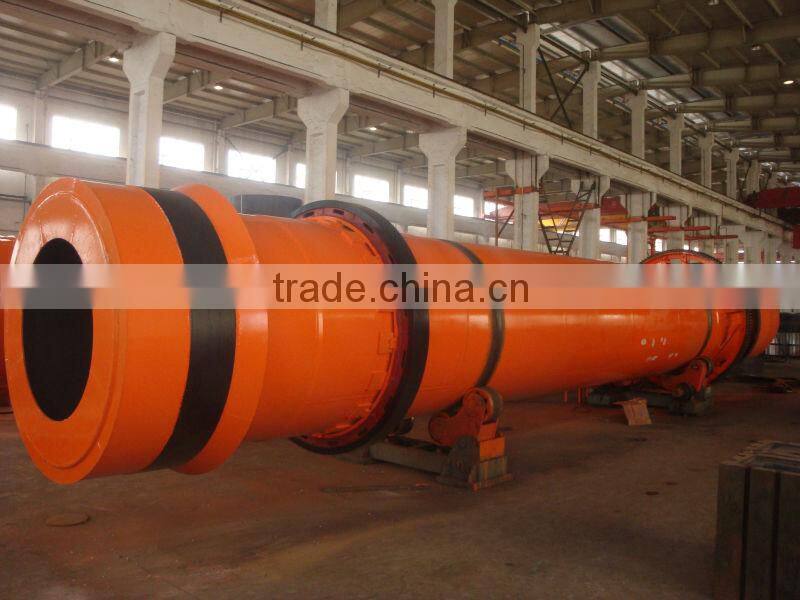

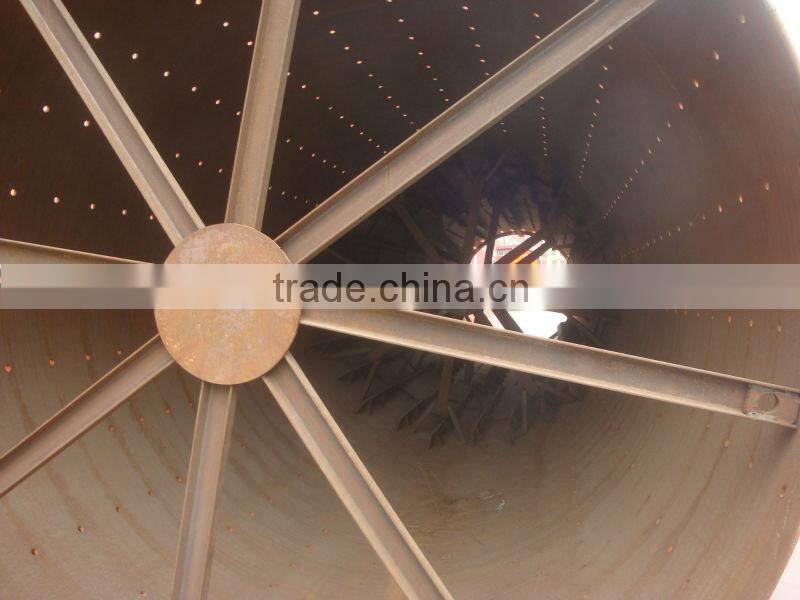

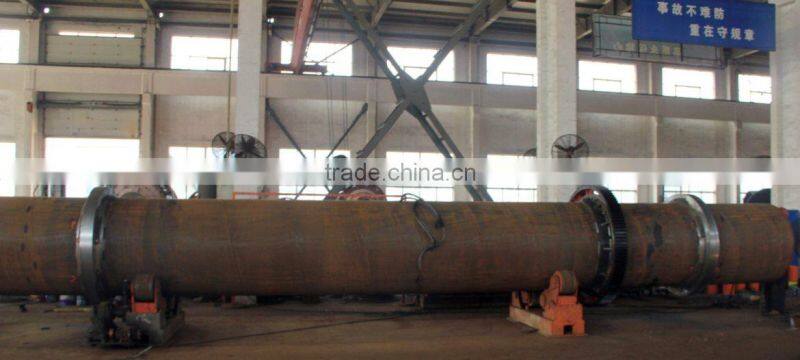

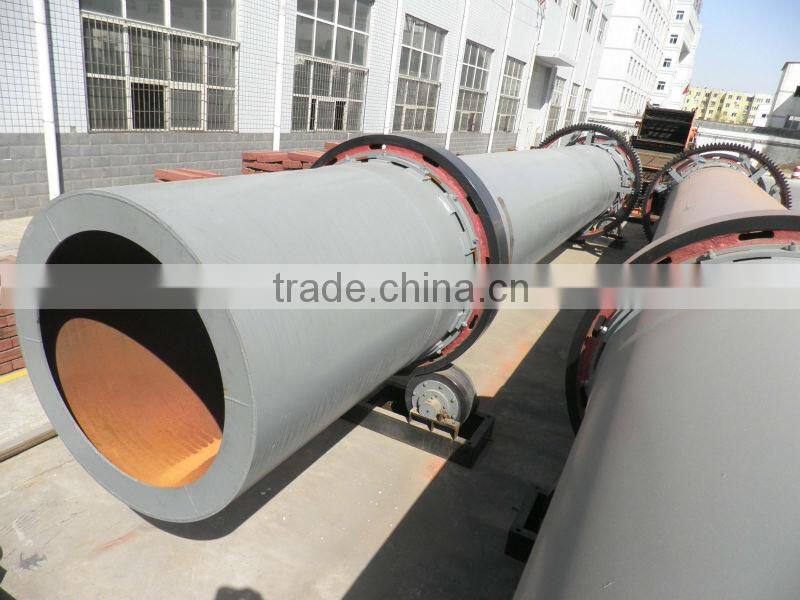

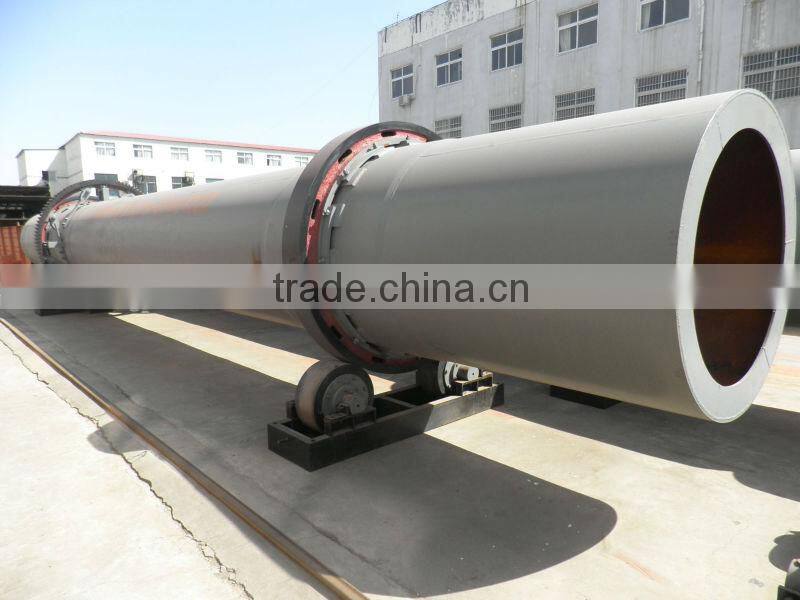

Rotary cooler machine show:

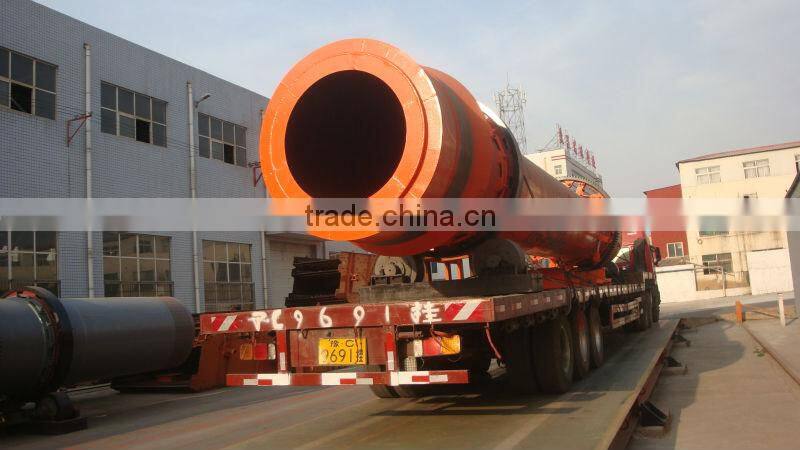

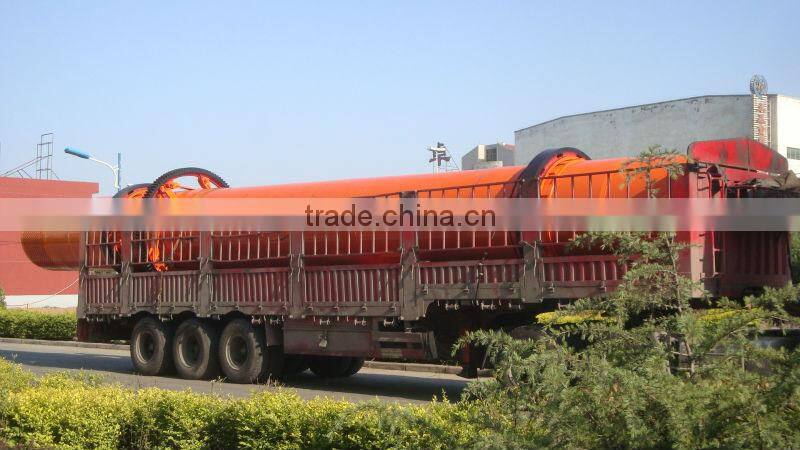

Monocular cooler shipment:
Our service of monocular cooler:
- Installation and adjustment of monocular cooler: The Installation and adjustment of our monocular cooler is provided by our company. Technicist of monocular cooler will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of monocular cooler: Three-guarantees of monocular cooler and warrantly period id one year.
- Technical support of monocular cooler is provided from the beginning to the end.
- Spare parts of monocular cooler are serviced for sale in the whole year.
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park
How about the quality of your monocular cooler?
- Our monocular cooler is manufactured strictly according to national and international standard.
- We take a test on every monocular cooler before delivery.
How about price of your monocular cooler?
- We can give the lowest price of monocular cooler than market one.
- We do quotation of monocular cooler as soon as possible for any custome.
- Discount of monocular cooler can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation monocular cooler overseas.
- The guarantee period of our monocular cooler is one year.
